Запчасти Bobcat S-Series ISOLATOR MOUNT KIT (Cast Mount) ACCESSORIES & OPTIONS

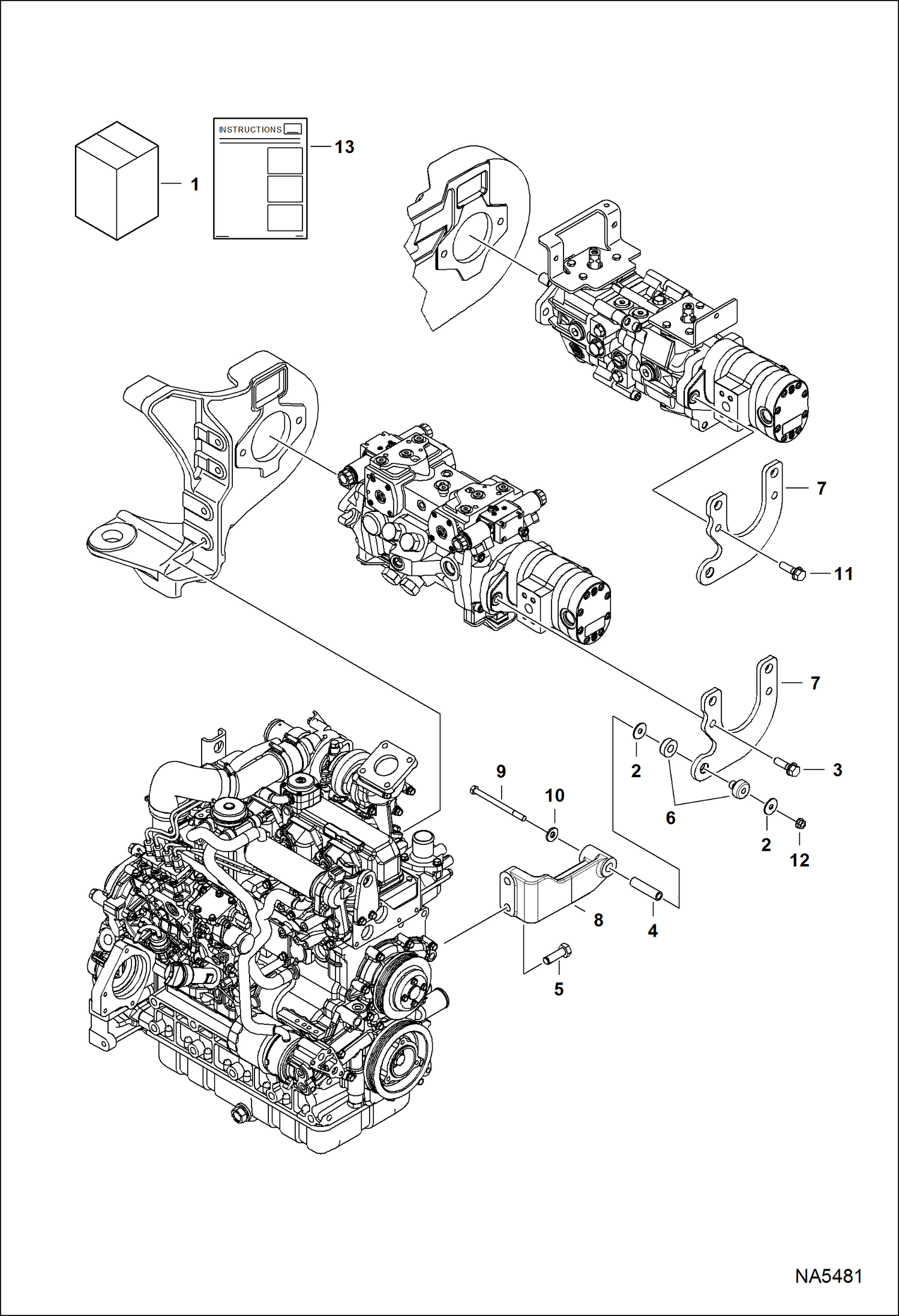

Схема запчастей Bobcat S-Series - ISOLATOR MOUNT KIT (Cast Mount) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

KIT, MOUNT ISOLATOR See Illustration ISOLATOR MOUNT KIT/ NA8232 - NLA - If equipped W/ 7161786 Power Bob-Tach valve Also Order 7010992 valve, 6727313 fitting, 7184255 fuel harness, 15KB0808 fitting, 1

2

6737388

WASHER

3

7131273

SCREW

4

7147350

SPACER, TUBE

5

7147745

SCREW

6

7149357

MOUNT, LOAD ISOLATOR

7

7193687

BRACKET, MOUNTING

8

7194572

MOUNT

9

1C680

SCREW Was 17C680 - B

10

27E6

WASHER 5

11

45C828

BOLT

12

53D6

NUT

13

6990106

INSTRUCTIONS

Выбрано товаров: 13
