Запчасти Bobcat S-Series HEATER & A/C (HVAC Assembly) (Metal Housing) ACCESSORIES & OPTIONS

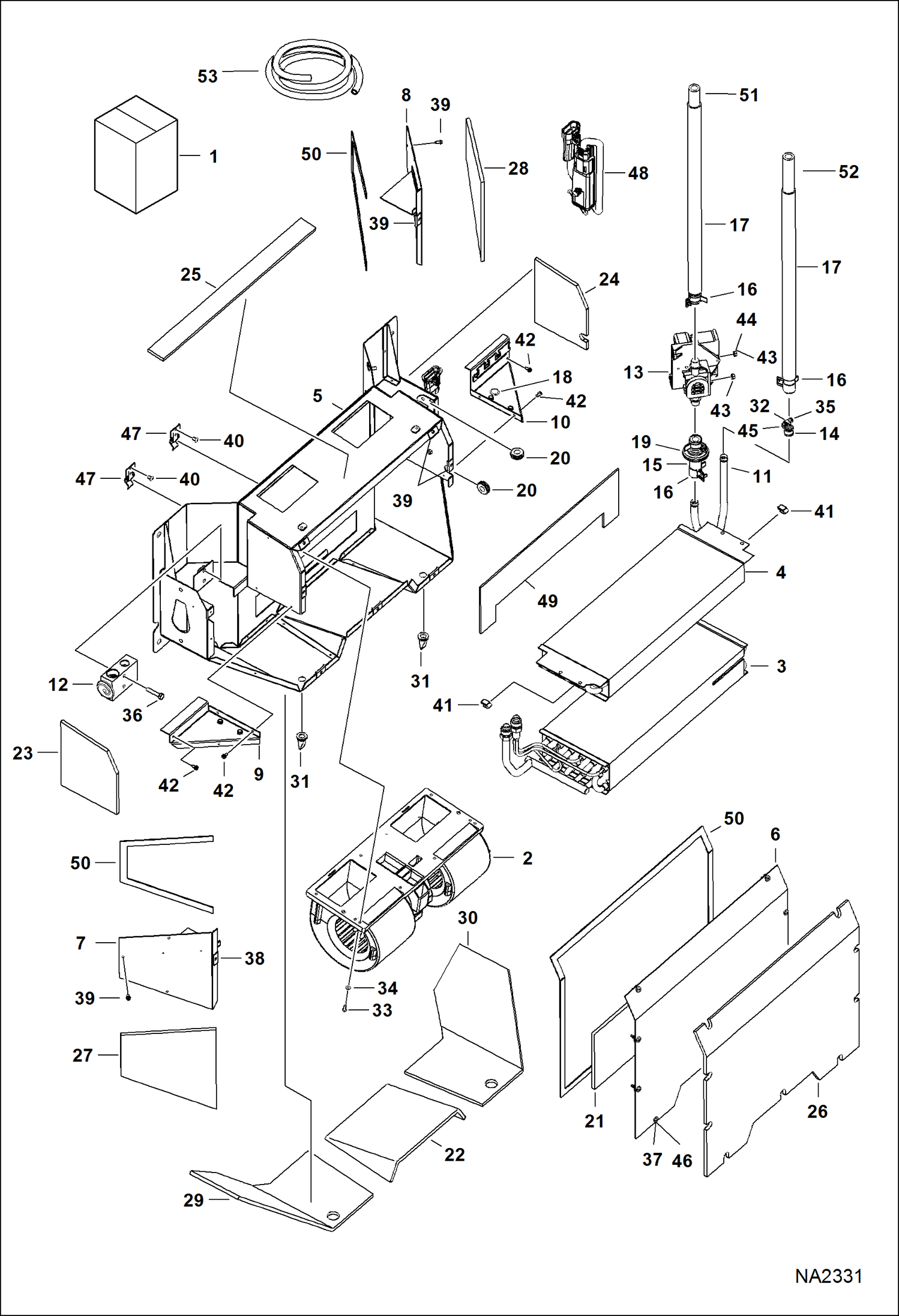

Схема запчастей Bobcat S-Series - HEATER & A/C (HVAC Assembly) (Metal Housing) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

7141700

HVAC ASSY Ref. 2-50

2

BLOWER, HEATER & A/C See Illustration HEATER & A/C/ NA2155

3

7008033

EVAPORATOR

4

7010386

COIL, HEATER

5

7010387

HOUSING

6

7010388

COVER

7

7010389

COVER, SIDE

8

7010390

COVER, SIDE

9

7010391

SUPPORT, LH

10

7010392

SUPPORT, RH

11

TUBE, HEATER NLA - Order Ref. 4

12

6675534

BLOCK, VALVE A/C

13

7003456

VALVE, MOTORIZED ASSY

14

7010395

CLAMP

15

HOSE, HEATER NLA - 3.35'' (85, mm) long - Order Ref. 53

16

7003458

CLAMP, HOSE

17

7010396

COVER, HOSE BULK/FT

18

6675513

GROMMET

19

6693222

GROMMET

20

6690482

GROMMET

21

7025307

INSULATION, HEATER Was 7010398 - A

22

7010408

INSULATION, HEATER

23

7010409

INSULATION, HEATER

24

7010410

INSULATION, HEATER

25

7010411

INSULATION, HEATER

26

7010412

INSULATION, HEATER

27

7010413

INSULATION, HEATER

28

7010414

INSULATION, HEATER

29

7010415

INSULATION, HEATER

30

7010416

INSULATION, HEATER

31

7003463

VALVE, DRAIN NLA - Was 7010399 - A

32

7010400

SPACER

33

7010401

SCREW

34

6693223

WASHER

35

7003465

NUT

36

6691534

SCREW

37

6677116

RETAINER

38

6677115

RECEPTACLE

39

6677119

SCREW

40

7010266

RIVET, POP

41

6676539

CLIP

42

6691532

SCREW Was 6677118 - A

43

7010403

NUT

44

7010404

WASHER

45

6676653

SCREW

46

6677117

SCREW

47

7010405

CLIP, RECEPTACLE

48

7008040

MODULE, DE-ICER ELECTRONIC

49

7010406

INSULATION, HEATER

50

6693236

FOAM

51

HOSE, HEATER NLA - 20.5'' (520,7 mm) long - Order Ref. 53

52

HOSE, HEATER NLA - 22.5'' (571,5 mm) long - Order Ref. 53

53

6565977

HOSE bulk - sold per foot - Was 7003457 - A

Выбрано товаров: 53
