Запчасти Bobcat S-Series HEATER & A/C (A/C Kit) (Heaters W/Plastic Housing) (S/N A3NT & Above, A3NU & Above) ACCESSORIES & OPTIONS

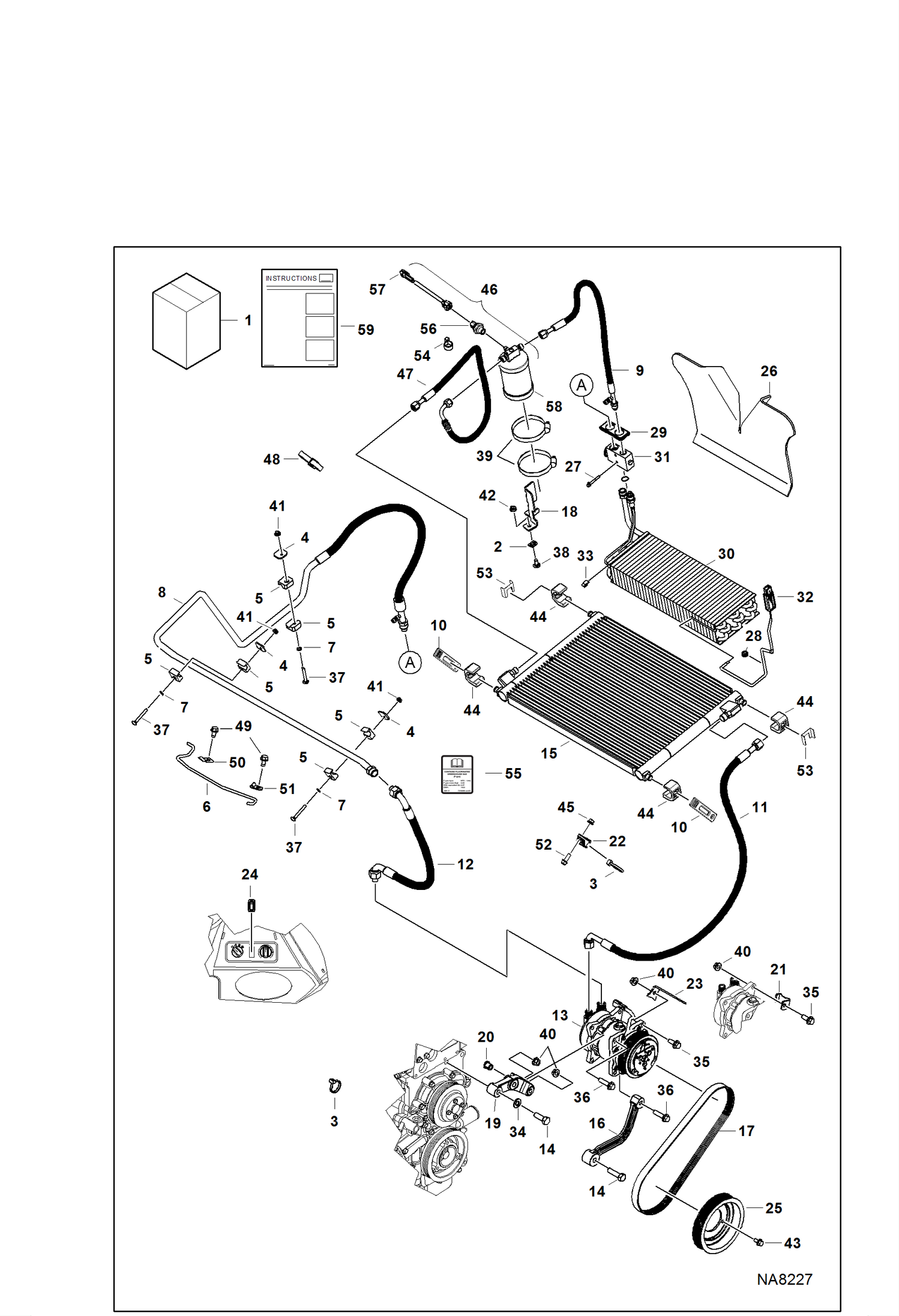

Схема запчастей Bobcat S-Series - HEATER & A/C (A/C Kit) (Heaters W/Plastic Housing) (S/N A3NT & Above, A3NU & Above) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

7235490

KIT, A/C Ref. 2-54

2

774220

NUT

3

6624289

STRAP, TIE

4

6665102

COVER

5

6666920

CLAMP, HALF

6

7237268

ROD

7

6675212

RETAINER

8

7225634

HOSE, TUBE ASSY

9

7228095

HOSE, A/C ASSY

10

7197614

STRAP, HOLD DOWN

11

6697917

HOSE

11

7009977

O-RING #8

12

6697918

HOSE

12

7009978

O-RING #10

13

7023580

COMPRESSOR, A/C

14

7135124

SCREW

15

7229108

CONDENSER, A/C

16

7140150

BRACE, COMPRES MACH

17

7142000

BELT, ALT & A/C

18

7228298

BRACKET

19

7157922

MOUNT

20

7159243

BUSHING

21

7164564

BRACKET, A/C

22

6678818

MOUNT

23

7168430

BRACKET

24

7169112

SWITCH, ROCKER A/C

25

7169128

PULLEY A/C

26

7173651

INSULATION, HEATER

27

7192371

BOLT

28

7193531

GROMMET

29

7193533

GROMMET

30

7193535

EVAPORATOR

31

6675534

BLOCK, VALVE A/C

32

7193539

THERMOSTAT

33

7193785

CLIP

34

18EM1224

WASHER

35

29CM1025

BOLT

36

29CM1040

BOLT

37

37C432

SCREW

38

37C512

BOLT

39

44H48

CLAMP

40

51DM10

NUT

41

55D4

NUT

42

55D5

NUT

43

59CM816

BOLT

44

7233371

MOUNT, CONDENSER

45

89D5

NUT

46

7025095

RECEIVER, DRIER A/C

47

7229414

HOSE, A/C ASSY

48

6678668

STRAP, DUAL TIE

49

84G3712

BOLT 5

50

7235510

SPRING, CLIP

51

30H12

CLIP

52

35C514

BOLT

53

7234181

BRACKET

54

6990823

INSTRUCTIONS

Выбрано товаров: 56
