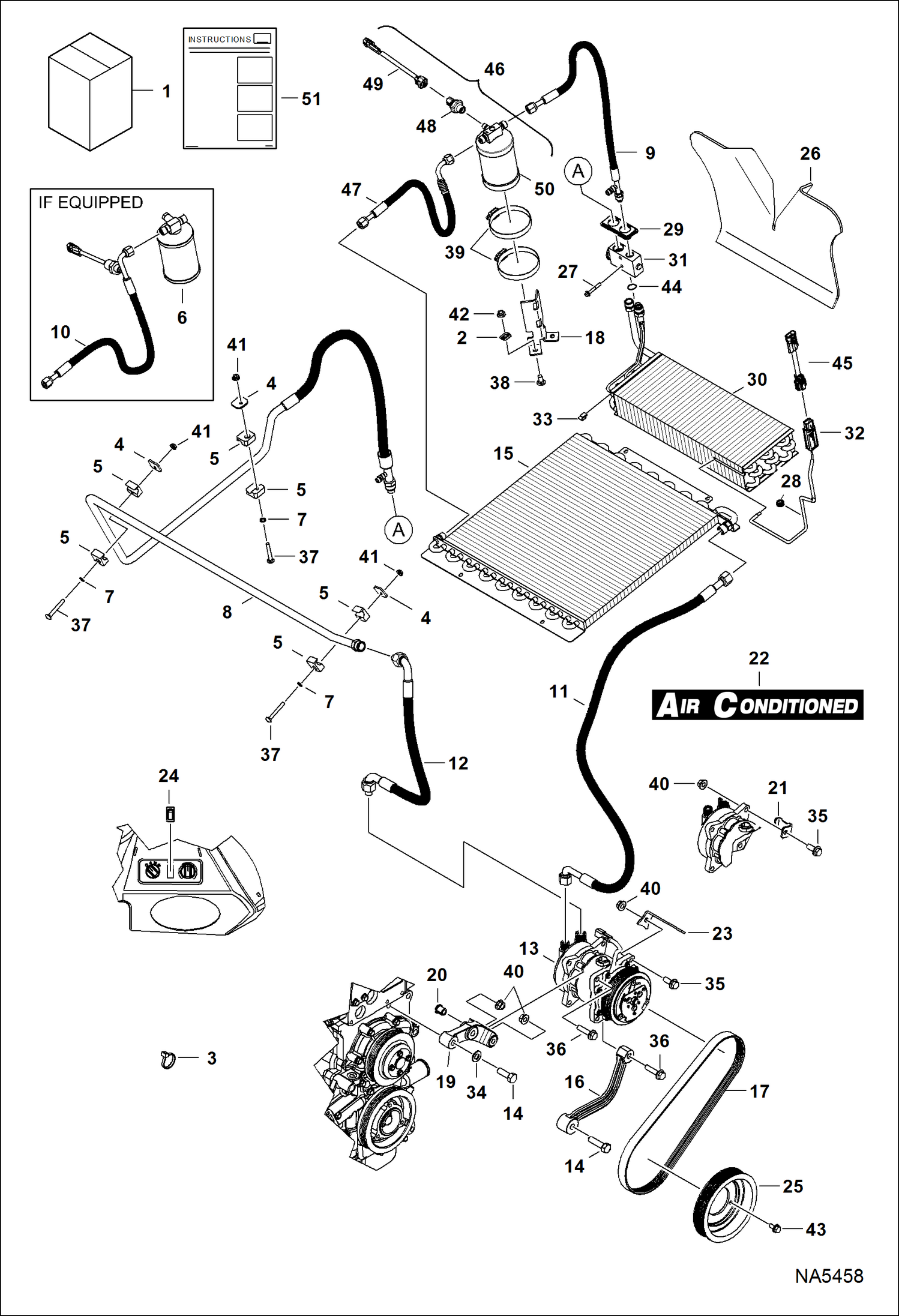

Запчасти Bobcat S-Series HEATER & A/C (A/C Kit) (Heaters W/Plastic Housing) (S/N A3NT12370 - , A3NU11112 - ) ACCESSORIES & OPTIONS

1

7198711

KIT, A/C Ref. 2-44 & 46 - Also Order Ref. 45

1

7198711

KIT, A/C Ref. 2-44 & 46

2

774220

NUT

3

6624289

STRAP, TIE

4

6665102

COVER

5

6666920

CLAMP, HALF

6

6674235

RECEIVER DRIER

7

6675212

RETAINER

8

6697914

HOSE, TUBE ASSY

9

6697915

HOSE

10

6697916

HOSE

10

6675779

SWITCH, PRESS

10

7009976

O-RING #6

11

6697917

HOSE

11

7009977

O-RING #8

12

6697918

HOSE

12

7009978

O-RING #10

13

7023580

COMPRESSOR, A/C Was 6698590 - B

14

7135124

SCREW

15

7024833

CONDENSER, A/C Was 7136896 - A

16

7140150

BRACE, COMPRES MACH

17

7142000

BELT, ALT & A/C

18

7228298

BRACKET Was 7151848 - A

19

7157922

MOUNT

20

7159243

BUSHING

21

7164564

BRACKET, A/C

22

7166916

DECAL, A/C not in kit

23

7168430

BRACKET

24

7169112

SWITCH, ROCKER A/C

25

7169128

PULLEY A/C Was 7134551 - A

26

7173651

INSULATION, HEATER

27

7192371

BOLT

28

7193531

GROMMET

29

7193533

GROMMET

30

7193535

EVAPORATOR

31

6675534

BLOCK, VALVE A/C Was 7193538 - D

32

7193539

THERMOSTAT

33

7193785

CLIP

34

18EM1224

WASHER

35

29CM1025

BOLT

36

29CM1040

BOLT

37

37C432

SCREW

38

37C512

BOLT

39

44H48

CLAMP

40

51DM10

NUT

41

55D4

NUT

42

55D5

NUT

43

59CM816

BOLT

44

7009977

O-RING #8

45

7203234

HARNESS, VALVE not in kit

46

7025095

RECEIVER, DRIER A/C

47

7209966

HOSE, A/C ASSY

48

6990077

INSTRUCTIONS
