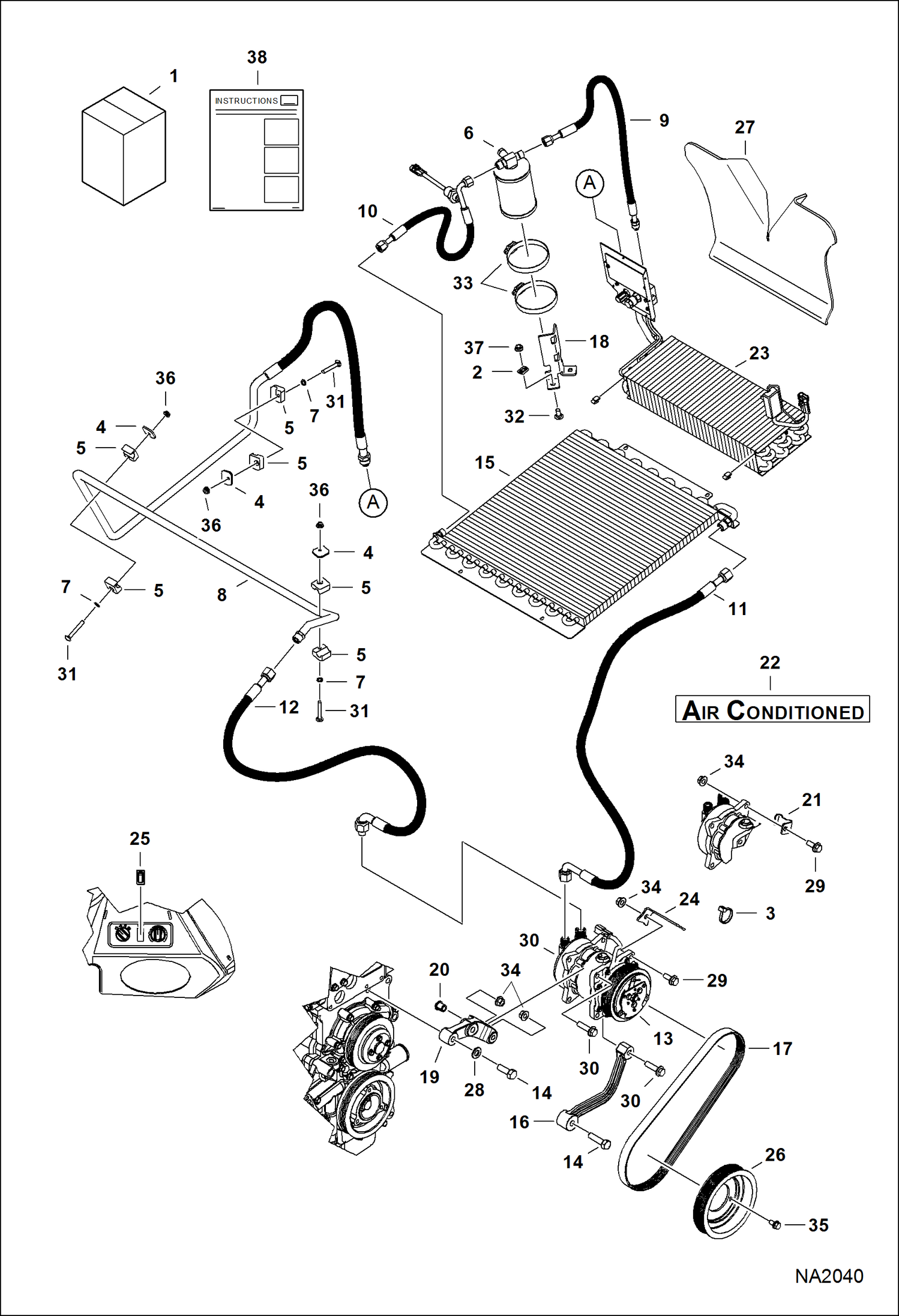

Запчасти Bobcat S-Series HEATER & A/C (A/C Kit) (Heaters W/Metal Housing) ACCESSORIES & OPTIONS

1

7129490

KIT, A/C Ref. 2-40

2

774220

NUT

3

6624289

STRAP, TIE

4

6665102

COVER

5

6666920

CLAMP, HALF

6

6674235

RECEIVER DRIER

7

6675212

RETAINER

8

6697914

HOSE, TUBE ASSY

9

6697915

HOSE

10

6697916

HOSE

10

6675779

SWITCH, PRESS

10

7009976

O-RING #6

11

6697917

HOSE

11

7009977

O-RING #8

12

6697918

HOSE

12

7009978

O-RING # 10

13

7023580

COMPRESSOR, A/C Was 6698590 - B

14

7135124

SCREW

15

7024833

CONDENSER, A/C Was 7136896 - A

16

7140150

BRACE, COMPRES MACH

17

7142000

BELT, ALT & A/C

18

7228298

BRACKET Was 7151848 - A

19

7157922

MOUNT

20

7159243

BUSHING

21

7164564

BRACKET, A/C

22

7166916

DECAL, A/C

23

7168310

EVAPORATOR

24

7168430

BRACKET

25

7169112

SWITCH, ROCKER A/C

26

7169128

PULLEY A/C Was 7134551 - A

27

7173651

INSULATION, HEATER

28

18EM1224

WASHER

29

29CM1025

BOLT

30

29CM1040

BOLT

31

37C432

SCREW

32

37C512

BOLT

33

44H48

CLAMP

34

51DM10

NUT

35

59CM816

BOLT

36

55D4

NUT

37

55D5

NUT

38

6987233

INSTRUCTIONS
