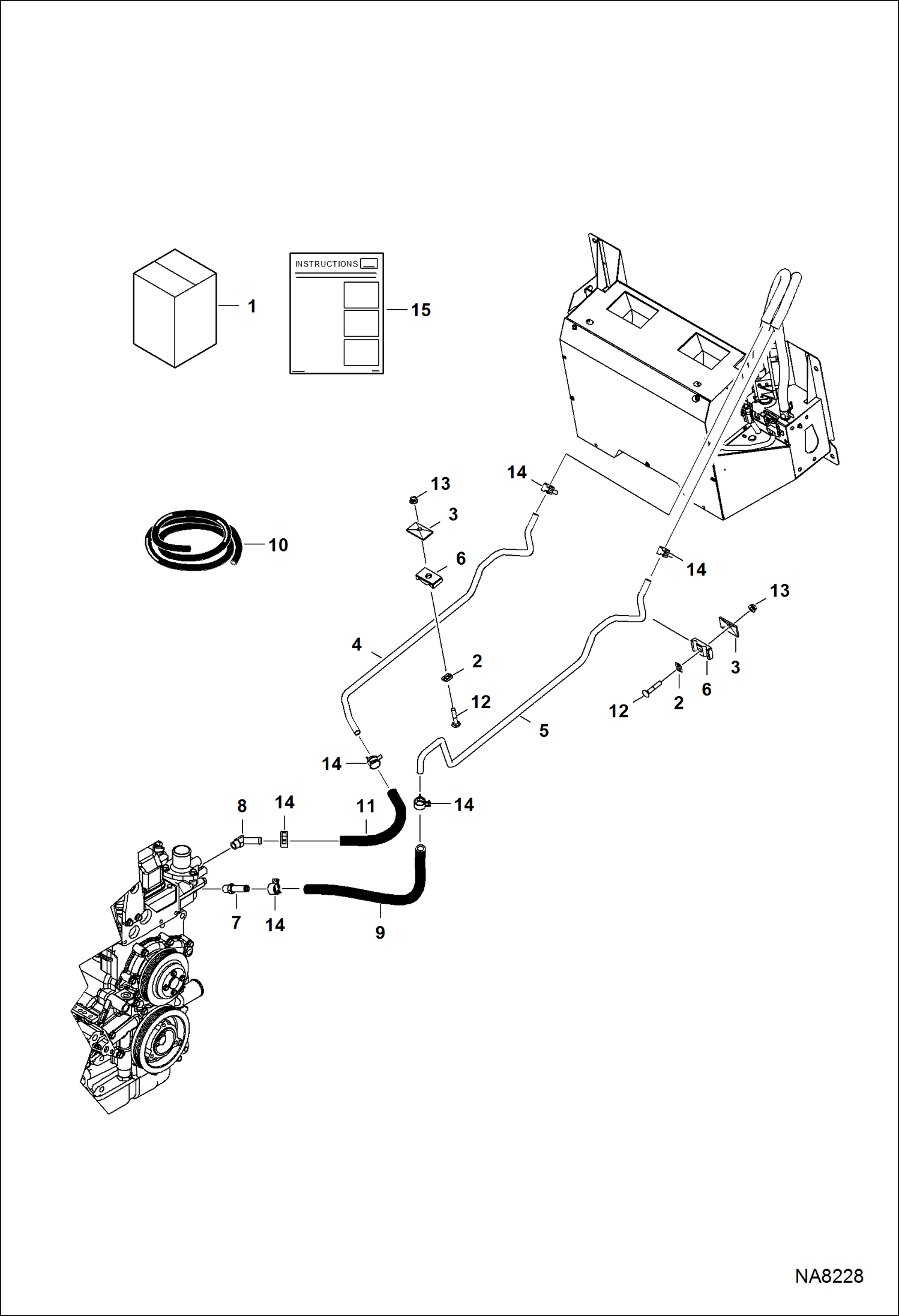

Запчасти Bobcat S-Series HEATER & A/C (Heater Plumbing Kit) (S/N A3NT & Above. A3NU & Above) ACCESSORIES & OPTIONS

1

7235024

KIT, PLUMBING HEATER Ref. 2-15

2

774220

NUT

3

6652521

PLATE

4

7226650

TUBELINE, HEATER

5

7226651

TUBELINE, HEATER

6

6701892

CLAMP

7

6731084

ADAPTER

8

6731085

ELBOW

9

HOSE NLA - 558,8 mm (22'') long - Order Ref. 10

10

6565977

HOSE bulk - sold per foot

11

HOSE NLA - 228,6 mm (9'') long - Order Ref. 10

12

37C528

BOLT

13

55D5

NUT

14

5HM20

CLAMP

15

6987231

INSTRUCTIONS
