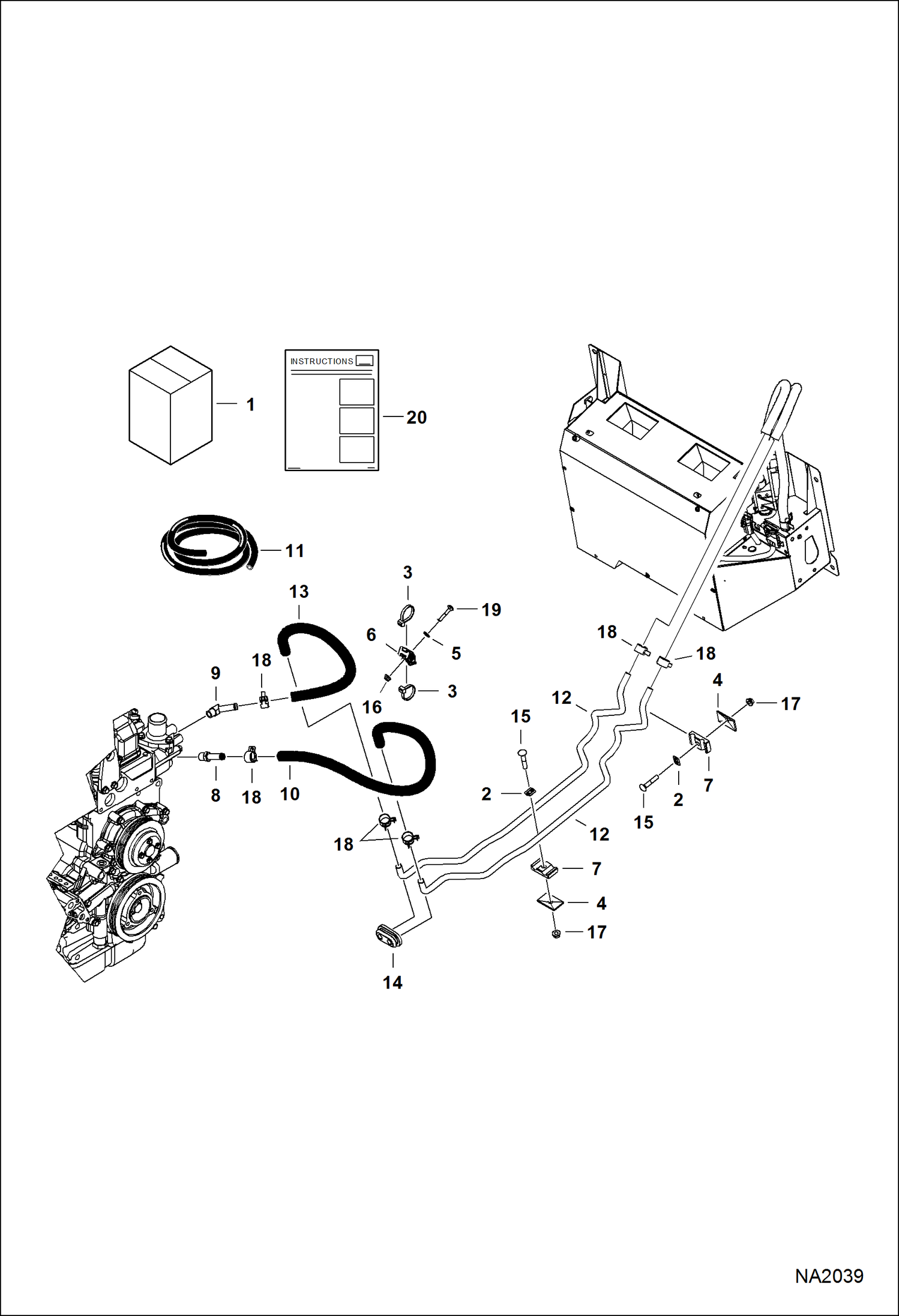

Запчасти Bobcat S-Series HEATER & A/C (Heater Plumbing Kit) (S/N A3NT11001 - , A3NU11001 - ) ACCESSORIES & OPTIONS

1

7129483

KIT, PLUMBING HEATER Ref. 2-10 & 12-20

2

774220

NUT

3

6624289

STRAP, TIE

4

6652521

PLATE

5

6675212

RETAINER

6

6678974

MOUNT

7

6701892

CLAMP

8

6731084

ADAPTER

9

6731085

ELBOW

10

HOSE NLA - 31'' (787.4 mm) long - Order Ref. 11

11

6565977

HOSE bulk - sold per foot

12

7151842

TUBE

13

HOSE NLA - 22'' (558,8 mm) long - Order Ref. 11

14

7156146

GROMMET

15

37C528

BOLT

16

55D4

NUT

17

55D5

NUT

18

5HM20

CLAMP

19

37C424

BOLT

20

6987231

INSTRUCTIONS
