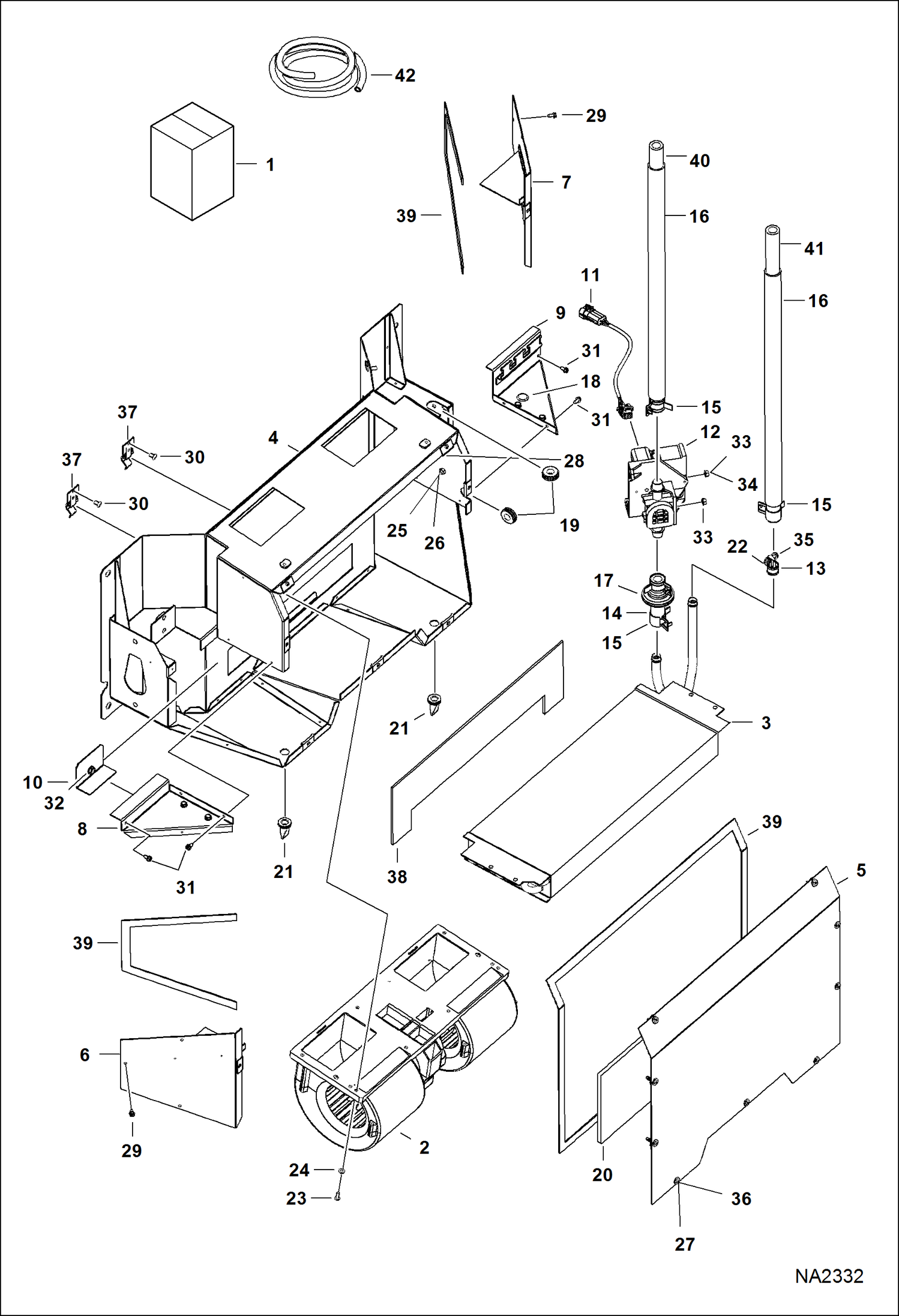

Запчасти Bobcat S-Series HEATER & A/C (Heater Assembly) (Metal Housing) ACCESSORIES & OPTIONS

1

HEATER ASSY See Illustration HEATER & A/C/ NA2969 NLA - Ref. 2-39 - Order 7193780 heater - Was 7141701 - A

2

BLOWER, HEATER & A/C See Illustration HEATER & A/C/ NA2155

3

7010386

COIL, HEATER

4

7010387

HOUSING

5

7010388

COVER

6

7010389

COVER, SIDE LH

7

7010390

COVER, SIDE RH

8

7010391

SUPPORT, LH

9

7010392

SUPPORT, RH

10

7010393

COVER

11

7010394

HARNESS, HEATER

12

7003456

VALVE, MOTORIZED ASSY

13

7010395

CLAMP

14

HOSE, HEATER NLA - 3.35'' (85, mm) long - Order Ref. 42

15

7003458

CLAMP, HOSE

16

7010396

COVER, HOSE BULK/FT

17

6693222

GROMMET

18

7010397

PLUG, FILL

19

6690482

GROMMET

20

7025307

INSULATION, HEATER Was 7010398 - A

21

7003463

VALVE, DRAIN NLA - Was 7010399 - A

22

7010400

SPACER

23

7010401

SCREW

24

6693223

WASHER

25

7010402

SCREW

26

7003465

NUT

27

6677116

RETAINER

28

6677115

RECEPTACLE

29

6677119

SCREW

30

7010266

RIVET, POP

31

6691532

SCREW Was 6677118 - A

32

6693864

BOLT

33

7010403

NUT

34

7010404

WASHER

35

6676653

SCREW

36

6677117

SCREW

37

7010405

CLIP, RECEPTACLE

38

7010406

INSULATION, HEATER

39

6693236

FOAM

40

HOSE, HEATER NLA - 20.5'' (520,7 mm) long - Order Ref. 42

41

HOSE, HEATER NLA - 22.5'' (571,5 mm) long - Order Ref. 42

42

6565977

HOSE bulk - sold per foot - Was 7003457 - A
