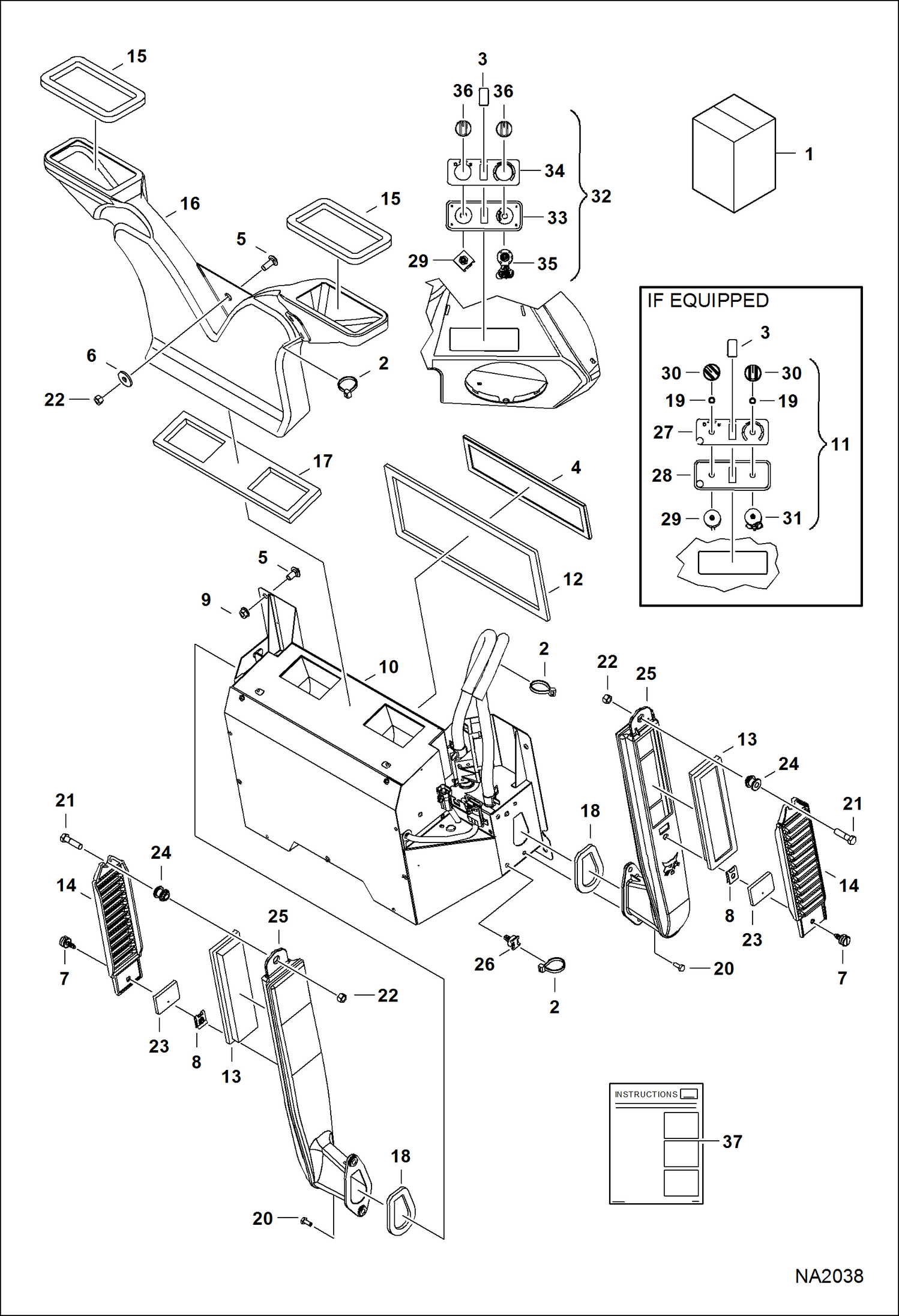

Запчасти Bobcat S-Series HEATER & A/C (Heater Kit) (Metal Housing) ACCESSORIES & OPTIONS

1

KIT, HEATER See Illustration HEATER & A/C/ NA2970 NLA - Ref. 2-32 - Order 7128484 kit, heater, 7203232 jumper & 7203233 jumper - Was 7128484 - B

2

6624289

STRAP, TIE

3

6675181

PLUG

4

6698096

FILTER, AIR RECIRCULATING

5

10C612

BOLT

6

619021

WASHER, 5

7

7000983

SCREW

8

7000984

CLIP

9

97D6

NUT 10

10

HEATER ASSY See Illustration HEATER & A/C/ NA2332

11

7176309

CONTROL W/Ref. 27-31

12

7161595

SEAL, FOAM

13

7176099

FILTER, AIR FRESH 10

14

7176100

COVER

15

7165673

SEAL, CAB DUCT

16

7166534

DUCT

17

7167405

SEAL, DUCT

18

7176579

SEAL, FOAM

19

NUT NSS

20

17C410

BOLT 10

21

17C624

BOLT 5

22

95D6

NUT

23

7176943

SEAL, COVER

24

7176942

SPACER

25

7176101

DUCT, AIR

26

7015668

MOUNT, STRAP TIE push in - Use W/tie strap - Was 6678666 - B

27

7011061

DECAL

28

7011062

PANEL, CONTROL

29

6675176

SWITCH blower motor - W/Ref. 19

30

6675177

KNOB

31

7168604

RESISTOR temp control - W/Ref. 19

32

6987231

INSTRUCTIONS
