Запчасти Bobcat S-Series EUROPEAN ACCESSORIES (Road Kit) ACCESSORIES & OPTIONS

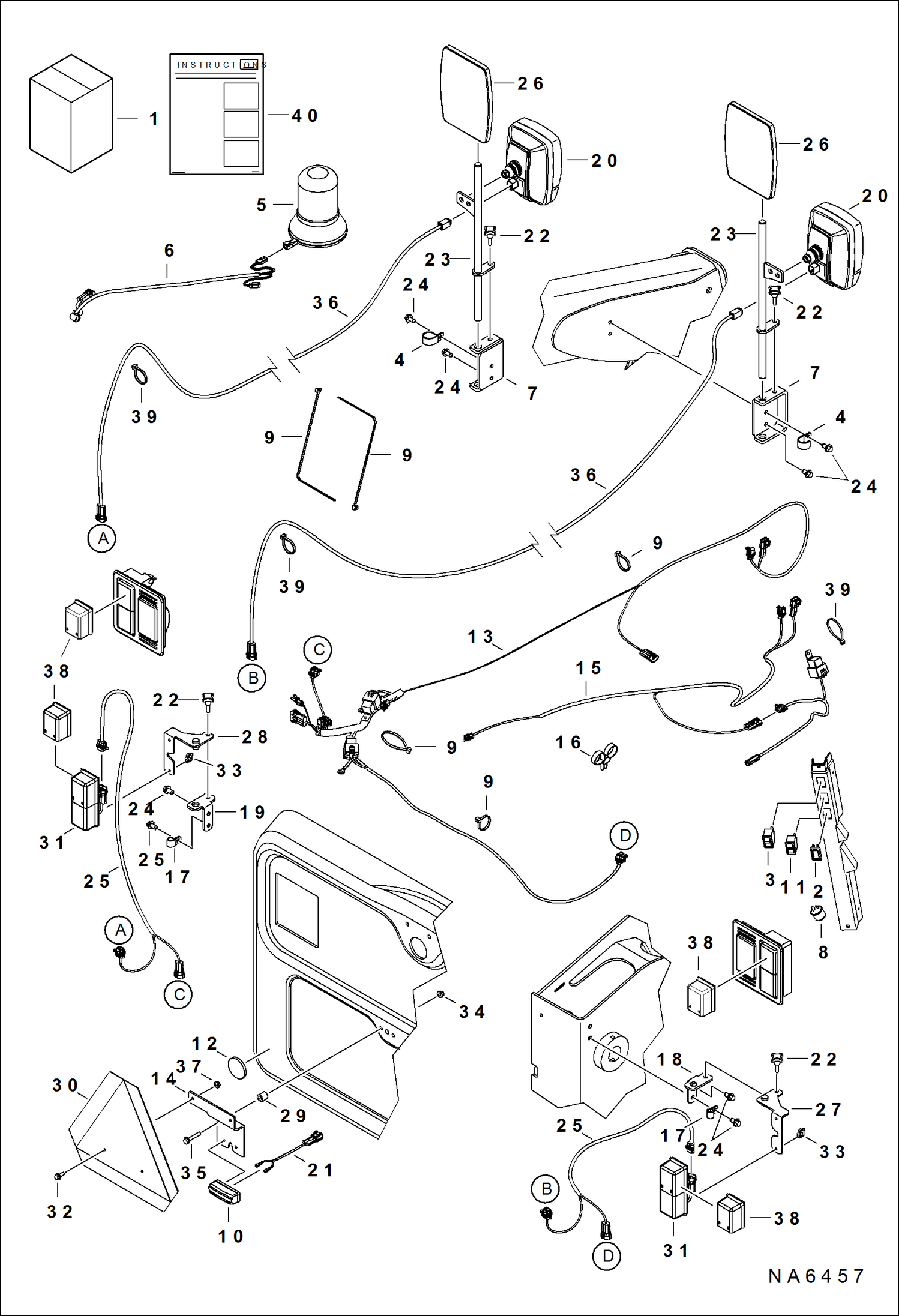

Схема запчастей Bobcat S-Series - EUROPEAN ACCESSORIES (Road Kit) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

KIT SALES #7175669

2

6665314

PLUG

3

6668816

SWITCH

4

30H73

CLAMP

5

6675523

BEACON

6

6718872

HARNESS

7

7194092

BRACKET, RH

7

7194093

BRACKET, LH

8

6557904

FLASHER

9

6624289

STRAP, TIE

10

6665729

LIGHT

11

6668815

SWITCH

12

7191035

LENS, REFLECTIVE

13

7175670

HARNESS ROAD KIT

14

7174476

BRACKET, TRIANGLE fuse

15

7175581

HARNESS BRAKE SJC

16

6678668

STRAP, DUAL TIE

17

30H31

CLAMP 10

18

7194097

HOLDER, BASE RH

19

7194096

HOLDER, BASE LH

20

7153089

LIGHT, FRONT ASSY

21

7153090

HARNESS, LIGHT LICENSE

22

7191193

HANDLE, KNOB RH

23

7153519

SHAFT, SPINDLE RH

23

7153521

SHAFT, SPINDLE LH

24

26GM10020

BOLT

25

HARNESS, DOOR REAR NLA - Was 7152344 - A

26

7153522

MIRROR, SIDE HEAD

27

7180993

HOLDER, RH

28

7180992

HOLDER, LH

29

7157740

SPACER

30

7157745

SLOW MOVING PLATE - 12

31

7101384

LIGHT

32

29CM616

BOLT

33

6688637

MOUNT

34

43DM8

NUT

35

29CM845

BOLT

36

7151706

HARNESS, LIFT ARM

37

43DM6

NUT

38

INSTRUCTIONS NLA

Выбрано товаров: 40
