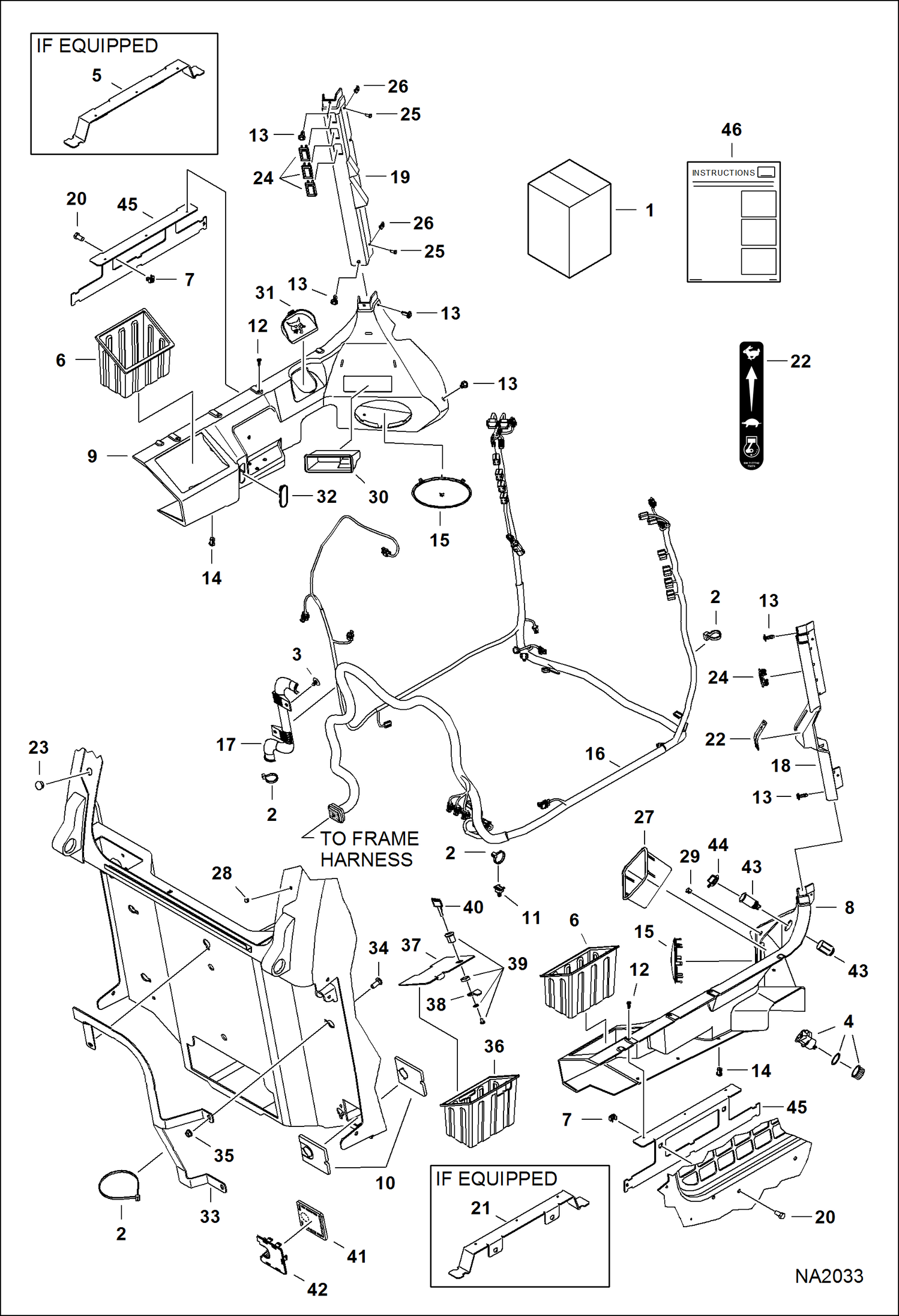

Запчасти Bobcat S-Series DELUXE INTERIOR KIT (1-Connector Harness) (A3NT11001 - 12369, A3NU11001 - 11111) ACCESSORIES & OPTIONS

1

7129465

KIT, INTERIOR DLX Ref. 2, 3, 5-35, & 43-45

2

6624289

STRAP, TIE

3

6674895

RETAINER

4

7001664

PLUG, POWER W/hinged cover - not in kit

5

7116118

BRACKET

6

7145268

CONTAINER, STORAGE

7

7149204

NUT

8

7155642

FENDER, PANEL RH

9

7155643

FENDER, PANEL L.H.

10

7185150

PLUG, HARNESS CAB replaces both Ref. 41 & 42

11

7010600

TREE MOUNT Was 6678666 - B

12

7160381

RIVET, BIRD CAGE

13

7160382

RIVET, BIRD CAGE

14

7160383

RIVET, BIRD CAGE

15

7161939

GRILL

16

7196753

HARNESS, CAB DLX Was 7176098 - B

17

7164073

GUIDE

18

7164347

COLUMN, FRONT RIGHT

19

7164348

COLUMN, FRONT LEFT

20

17C616

BOLT 5 Was 17C612 - B

21

7127976

BRACKET

22

7177742

DECAL throttle

23

6657719

PLUG 0.75'' dia hole

24

6665314

PLUG

25

6669224

BOLT

26

7142762

CLIP

27

7154285

BOX, STORAGE

28

7188745

PLUG Was 7174012 - A

29

7182942

PLUG Was 7162771 - A

30

7165344

STORAGE

31

7165345

DOOR, COVER

32

7165346

DOOR, COVER

33

7166177

BRACKET

34

10C616

BOLT 10

35

97D6

NUT 10

36

7181555

TOOL BOX EMEA - not in kit

37

7181556

COVER, TOOL BOX EMEA - metal cover - not in kit

38

7181557

CAM EMEA - not in kit

39

6670726

CYLINDER, LOCK EMEA - not in kit

40

6693241

KEY 10 EMEA - not in kit

41

PLUG, HARNESS CAB DLX NLA - Order Ref. 10 - Was 7179115 - A

42

FOAM NLA - Order Ref. 10 - Was 7179116 - A

43

6664223

OUTLET

44

6664224

CAP

45

6987234

INSTRUCTIONS
