Запчасти Bobcat S-Series FUEL & INJECTION PUMP POWER UNIT

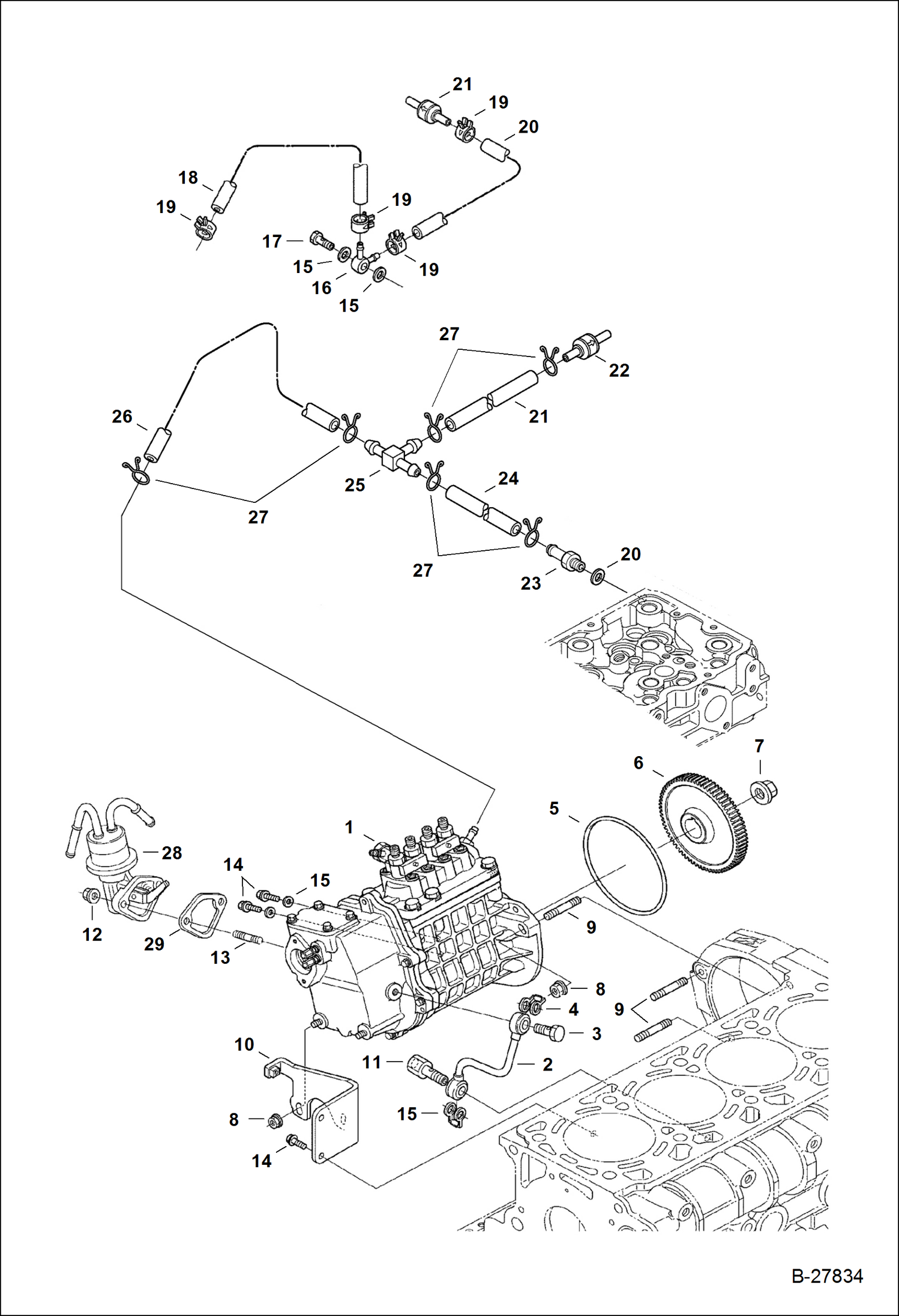

Схема запчастей Bobcat S-Series - FUEL & INJECTION PUMP POWER UNIT

Артикул

Название

Примечание

Количество

1

7020827

PUMP, FUEL INJ See BTI418ldr - assy - Was 7008537 - A

2

7008438

PIPE, OIL

3

6680900

BOLT

4

6685962

WASHER, SEALING ALUMINUM

5

7000618

GASKET, PUMP INJ

6

7008443

GEAR, PUMP INJ

6

7022433

GEAR, PUMP INJ

7

7000613

NUT

8

6969819

NUT, FLANGE

9

7021003

STUD Was 6685919 - B

10

7008444

BRACKET, PUMP INJ

11

7008439

BOLT, JOINT

12

6670533

NUT

13

6680264

STUD

14

6680662

BOLT

15

6689331

GASKET

16

7008517

FITTING, BANJO

17

7022765

BOLT, EYE Was 6680791 - A

18

7000605

TUBE, FUEL LINE ASSY

19

6654718

CLAMP

20

3974095

MET-GASK

21

7000604

TUBE, FUEL LINE ASSY

22

6680796

VALVE

23

7021002

SCREW, BLEEDER AIR

24

6687670

TUBE, FUEL LINE ASSY

25

6680797

TEE

26

7020984

TUBE FUEL

27

6654718

CLAMP

28

7000767

PUMP, FUEL

29

7010133

GASKET, PUMP FUEL Was 6670782 - B

Выбрано товаров: 30
