Запчасти Bobcat S-Series EGR VALVE POWER UNIT

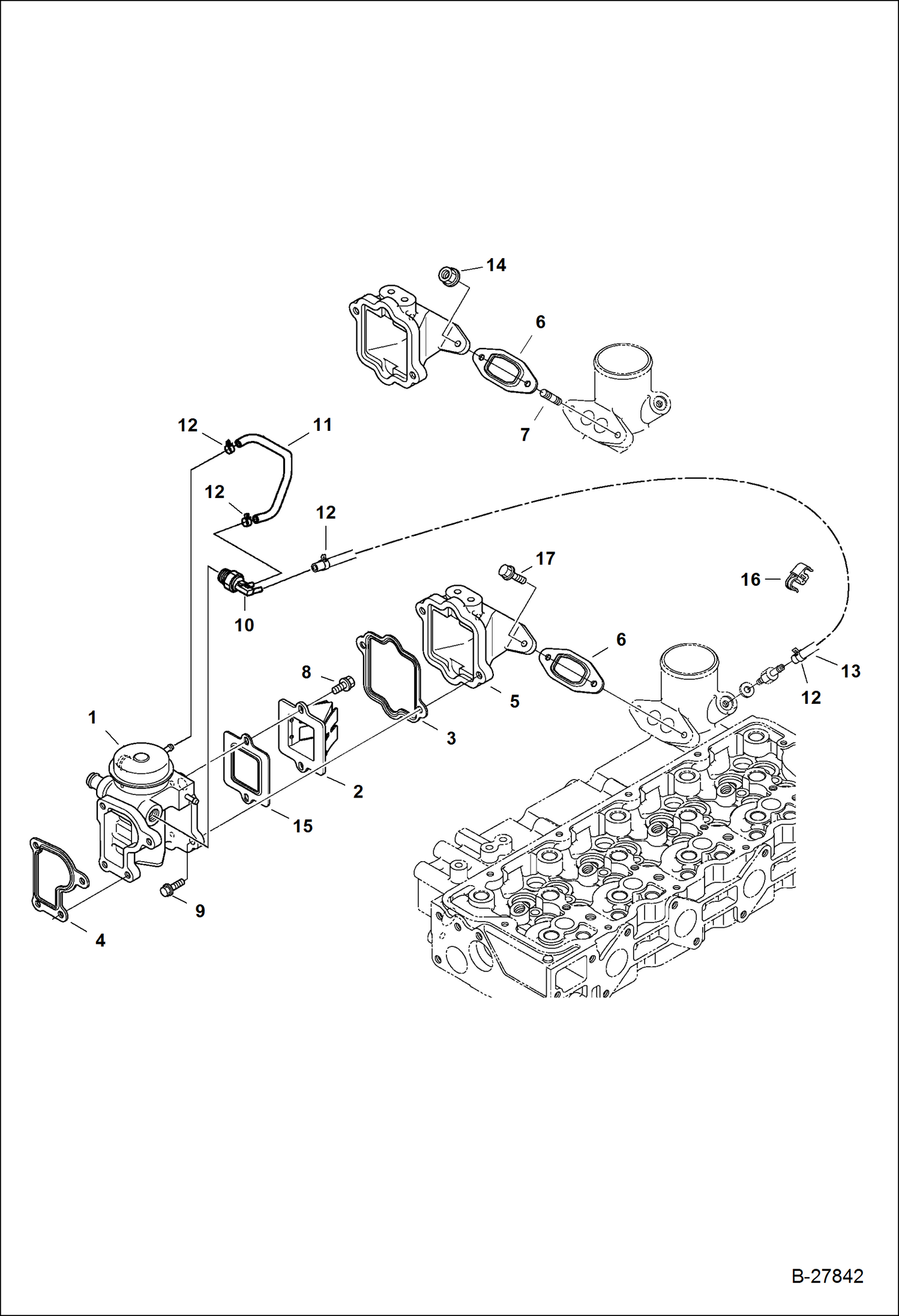

Схема запчастей Bobcat S-Series - EGR VALVE POWER UNIT

Артикул

Название

Примечание

Количество

1

7008538

VALVE, EGR

2

6698580

VALVE, LEAD

3

7000634

GASKET, EGR VALVE

4

7000633

GASKET, EGR VALVE

5

7000631

FLANGE, EGR

6

7000632

GASKET EGR INLET

7

6680564

STUD

8

6680803

BOLT

9

6680801

BOLT

10

6698585

VALVE, THERMOSTATIC

11

7012014

HOSE, VACUUM Was 7000641 - B

12

6657556

BAND

13

7008505

HOSE, VACUUM

14

6969819

NUT, FLANGE

15

7008467

GASKET, EGR VALVE

16

7012013

CLAMP, HOSE

17

7001139

BOLT,FLANGE

Выбрано товаров: 17
