Запчасти Bobcat S-Series TURBOCHARGER POWER UNIT

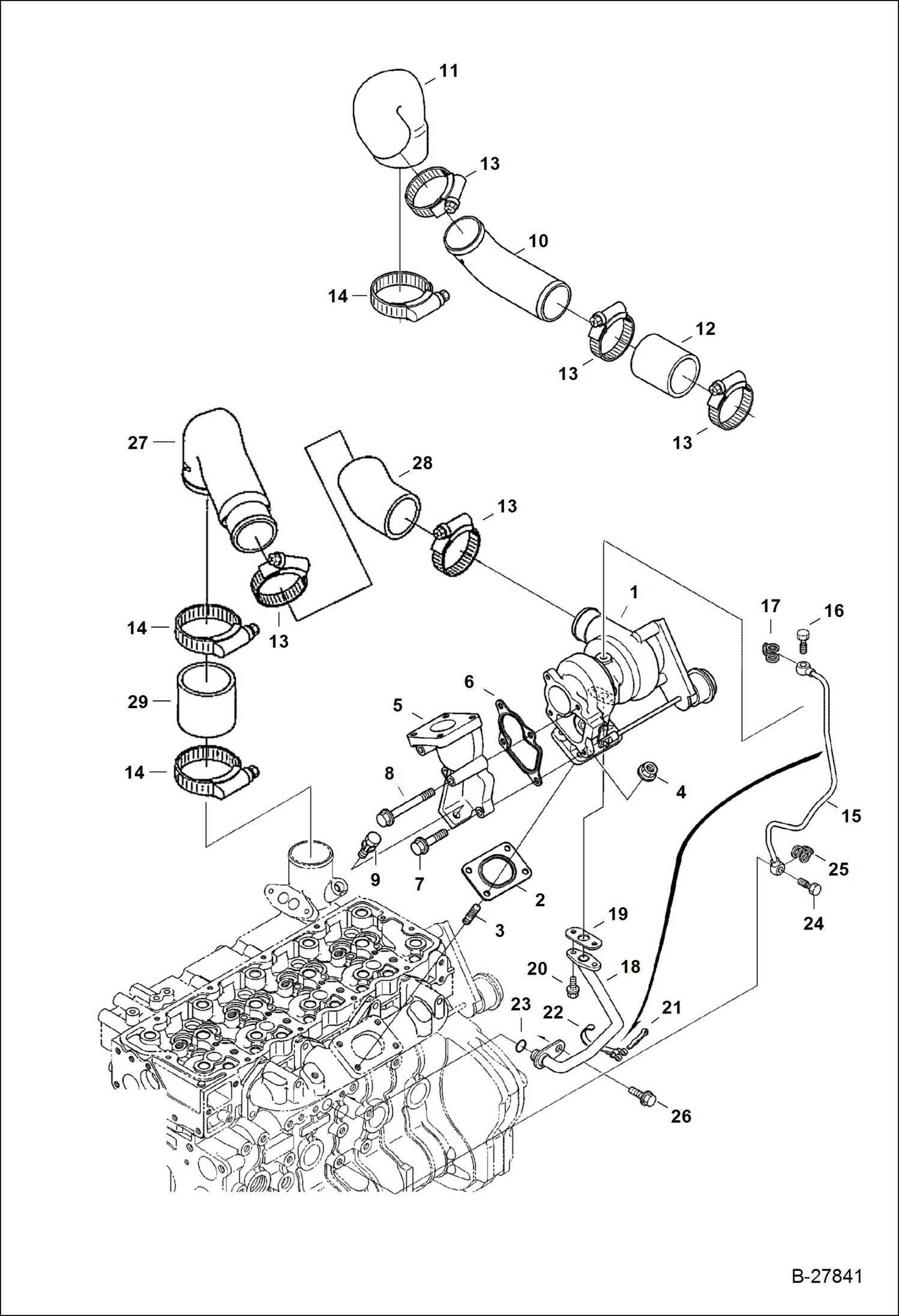

Схема запчастей Bobcat S-Series - TURBOCHARGER POWER UNIT

Артикул

Название

Примечание

Количество

1

7008469

TURBOCHARGER

1

7028627

HOSE, RUBBER fuel return hose

2

7008514

GASKET, TURBO

3

7008508

STUD

4

6969819

NUT, FLANGE

5

7008532

FLANGE, MUFFLER

6

7008515

GASKET, TURBO

7

7008513

BOLT, FLANGE

8

7008452

BOLT, FLANGE

9

7008507

BOLT

10

7008529

PIPE, INTAKE

11

7008530

HOSE, AIR INTAKE

12

7008521

HOSE, AIR FORMED

13

7008543

CLAMP, HOSE

14

7008544

CLAMP, HOSE

15

7008487

PIPE, OIL

16

6680900

BOLT

17

7000642

WASHER, SEALING COPPER

18

7008488

PIPE, OIL

19

7008516

GASKET oil return tube

20

29CM612

BOLT, FLANGED

21

6680576

PIN

22

6685601

CLAMP

23

7008387

O-RING

24

7022765

BOLT, EYE Was 6680791 - A

25

6689331

GASKET

26

7008383

BOLT, FLANGE

27

7024015

PIPE, INTAKE

28

7024016

HOSE, AIR INTAKE

29

7024017

HOSE, AIR INTAKE

Выбрано товаров: 30
