Запчасти Bobcat S-Series CAMSHAFT AND IDLE GEAR SHAFT POWER UNIT

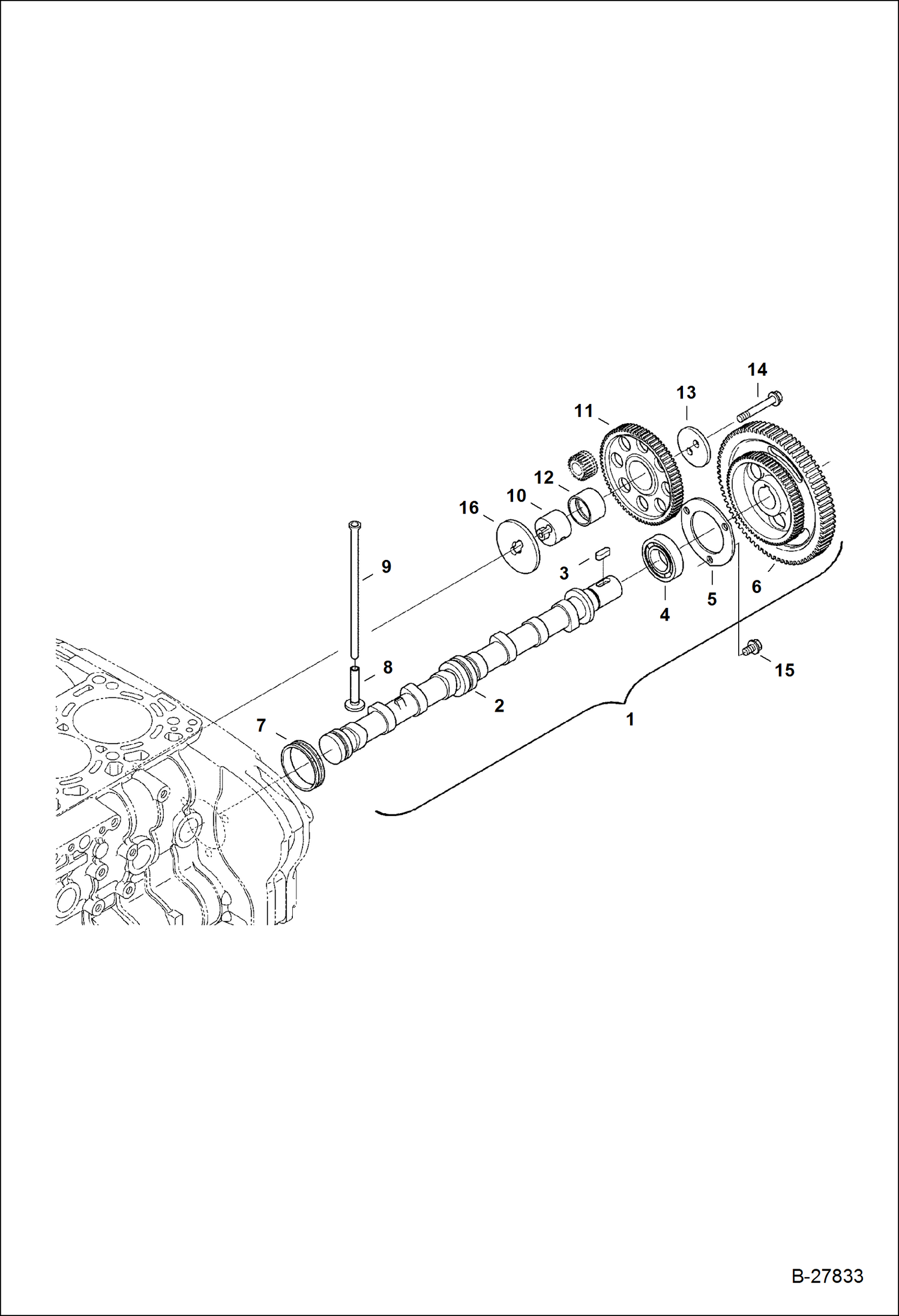

Схема запчастей Bobcat S-Series - CAMSHAFT AND IDLE GEAR SHAFT POWER UNIT

Артикул

Название

Примечание

Количество

1

7008411

CAMSHAFT, VALVE Ref. 2-6

2

CAMSHAFT NSS - Order Ref. 1

3

3974546

KEY

4

7008388

BEARING, BALL

5

7008412

RETAINER, BEARING

6

7008414

GEAR, CAMSHAFT

7

7008413

CAP, SEALING

8

7000612

TAPPET

9

7008410

ROD, PUSH

10

7008434

SHAFT, GEAR IDLER

10

7022431

SHAFT, GEAR IDLER

11

7008432

GEAR, IDLER W/Ref. 12

11

7022432

GEAR, IDLER W/Ref. 12

12

7008437

BUSHING, GEAR IDLE

13

7008436

COLLAR, GEAR IDLER

14

7008456

BOLT, FLANGE

14

7008396

BOLT, FLANGE

15

7001138

BOLT,FLANGE

16

7008435

COLLAR, GEAR IDLER

Выбрано товаров: 19
