Запчасти Bobcat S-Series VALVE & ROCKER ARM POWER UNIT

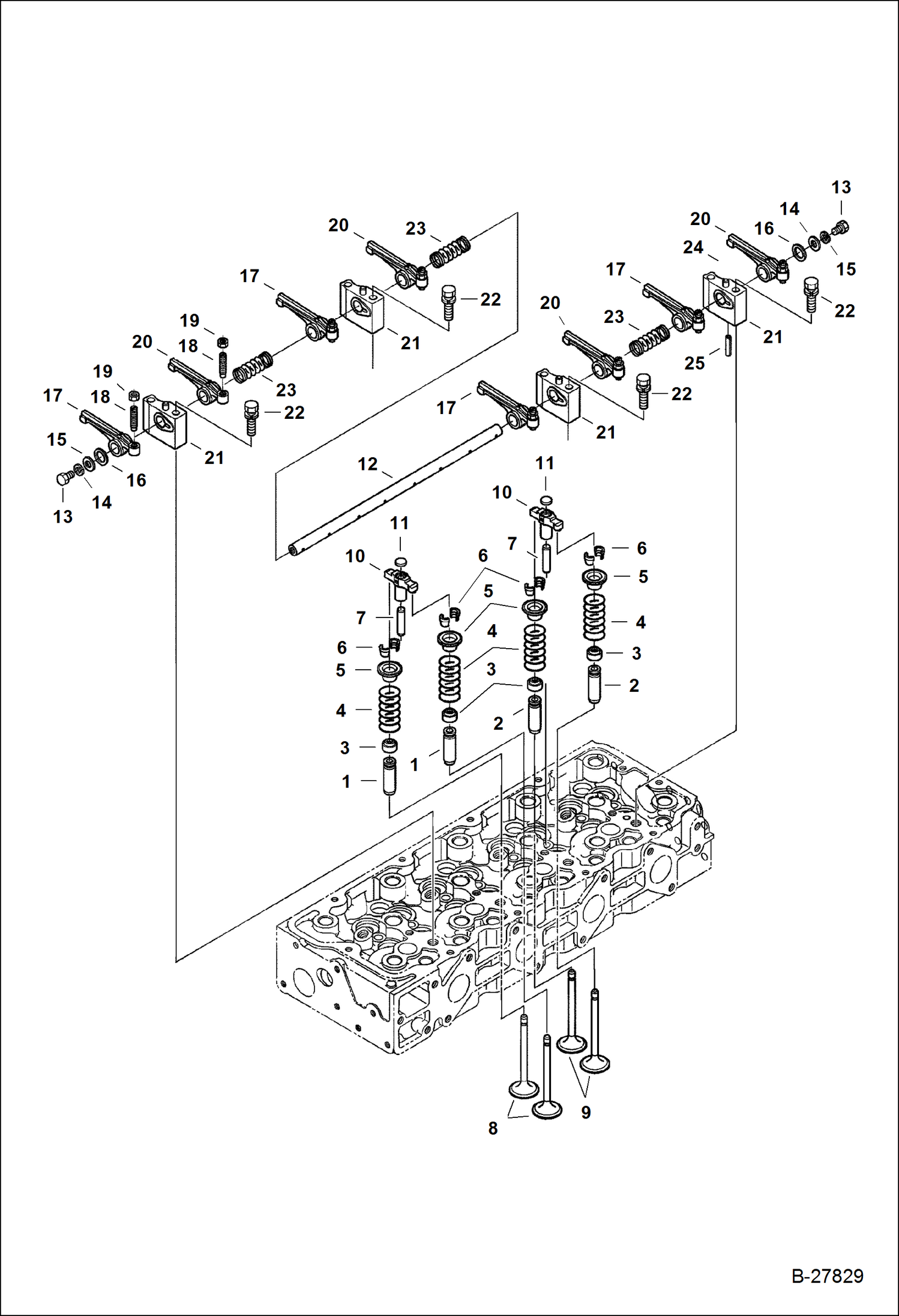

Схема запчастей Bobcat S-Series - VALVE & ROCKER ARM POWER UNIT

Артикул

Название

Примечание

Количество

1

6680859

GUIDE

2

6685958

GUIDE

3

6672436

SEAL valve stem

4

6680863

VALVE SPRING

5

6685959

RETAINER

6

7008389

RETAINER, VALVE SPRING

7

6680866

SHAFT

8

VALVE, INTAKE See BTI422 - NLA - Was 7008401

9

VALVE, EXHAUST See BTI422 - NLA - Was 7008402

10

ARM, VALVE BRIDGE See BTI422

11

7000665

PAD, WEAR Was 6680882 - A

12

7008405

SHAFT, ROCKER ARM

13

5CM812

BOLT

14

6667422

WASHER

15

6667451

WASHER plain

16

7008408

WASHER

17

7008403

ARM, ROCKER W/Ref. 18 & 19

18

3974920

SCREW

19

2DM8

NUT

20

7008404

ARM, ROCKER W/Ref. 18 & 19

21

7008407

BRACKET, ROCKER ARM

22

7008384

BOLT, FLANGE

23

7008406

SPRING, ROCKER ARM

24

6680877

PIN

25

7000599

PIN

Выбрано товаров: 25
