Запчасти Bobcat S-Series ENGINE LOWER GASKET KIT POWER UNIT

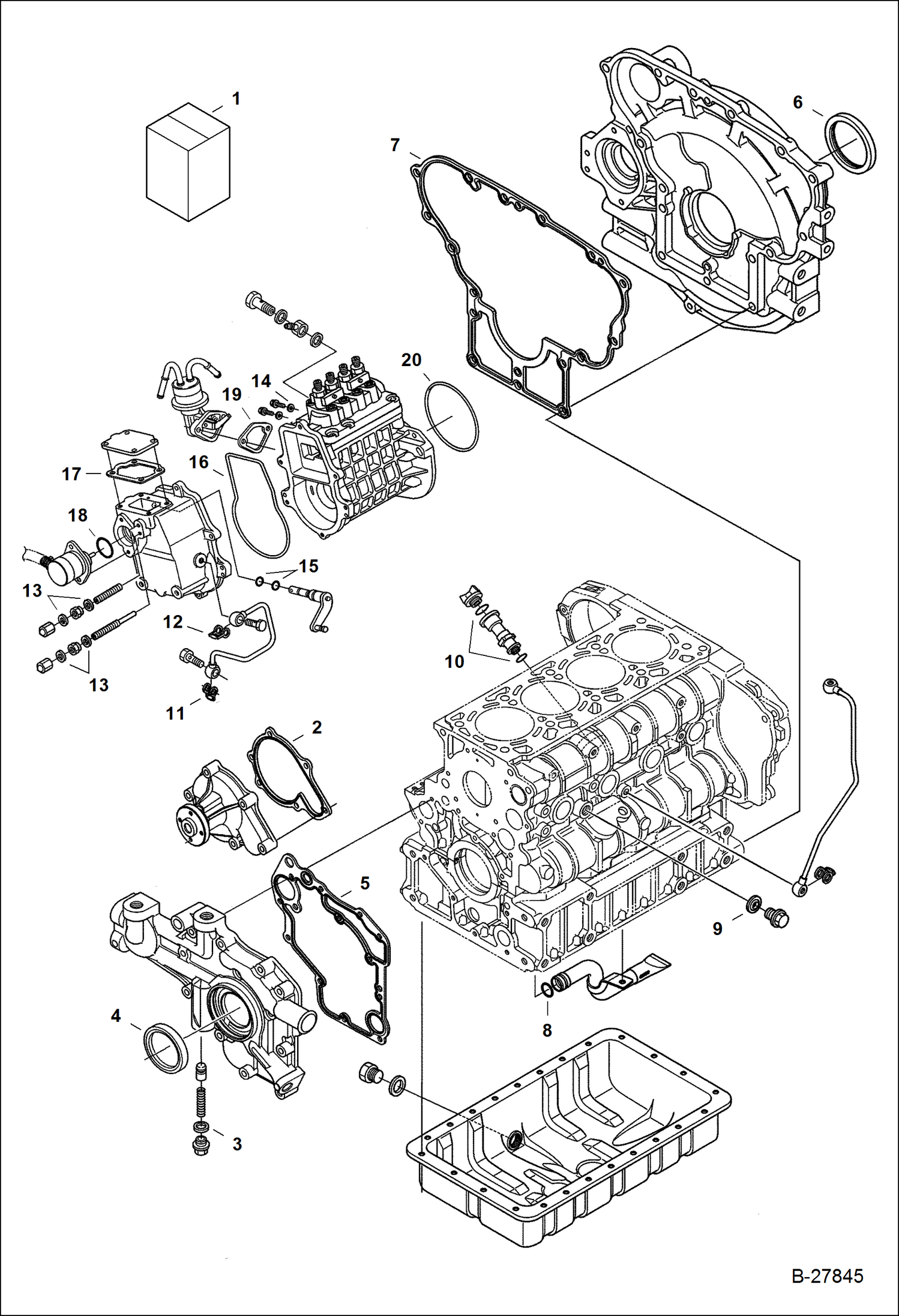

Схема запчастей Bobcat S-Series - ENGINE LOWER GASKET KIT POWER UNIT

Артикул

Название

Примечание

Количество

1

7008511

KIT, GASKET ENG LOWER Ref. 2-20

2

7008451

GASKET, PUMP WATER See Illustration WATER PUMP & THERMOSTAT/ B27839

3

6670347

GASKET See Illustration FRONT COVER/ B27831

4

6680680

SEAL See Illustration FRONT COVER/ B27831

5

7008398

GASKET, FRONT COVER See Illustration FRONT COVER/ B27831

6

7008390

SEAL, OIL See Illustration CRANKCASE/ B27826

7

7008461

GASKET, HOUSING See Illustration CRANKCASE/ B27826

8

6686981

O-RING See Illustration OIL PAN/ B27827

9

6652751

GASKET See Illustration CRANKCASE/ B27826

10

6684782

O-RING See Illustration OIL PAN/ B27827

11

6689331

GASKET See Illustration FUEL & INJECTION PUMP/ B27834

12

6685962

WASHER, SEALING ALUMINUM See Illustration CAMSHAFT AND IDLE GEAR SHAFT/ B27833

13

3974972

GASKET See Illustration INJECTION PUMP/ B27288

14

3974095

MET-GASK See Illustration FUEL & INJECTION PUMP/ B27834

15

6683023

O-RING See Illustration GOVERNOR/ B27836

16

6680829

GASKET See Illustration GOVERNOR/ B27836

17

6684841

GASKET See Illustration GOVERNOR/ B27836

18

6685465

O-RING See Illustration GOVERNOR/ B27836 - stop solenoid

19

7010133

GASKET, PUMP FUEL See Illustration FUEL & INJECTION PUMP/ B27834 Was 6670782 - B

20

7000618

GASKET, PUMP INJ See Illustration FUEL & INJECTION PUMP/ B27834

Выбрано товаров: 20
