Запчасти Bobcat S-Series ENGINE UPPER GASKET KIT POWER UNIT

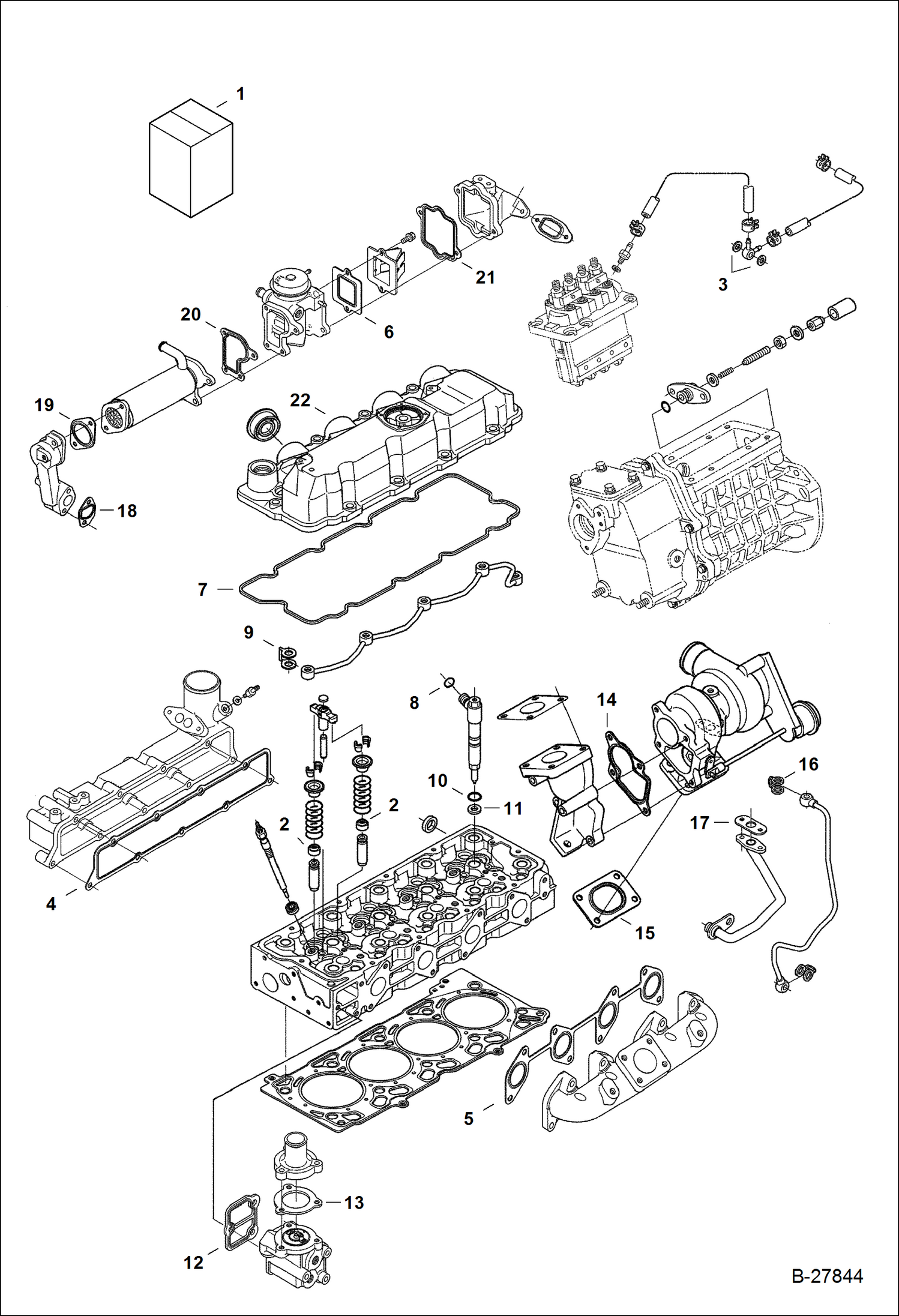

Схема запчастей Bobcat S-Series - ENGINE UPPER GASKET KIT POWER UNIT

Артикул

Название

Примечание

Количество

1

7008510

KIT, GASKET ENG UPPER Ref. 2-21

2

6672436

SEAL See Illustration VALVE & ROCKER ARM/ B27829 - valve stem

3

3974095

MET-GASK See Illustration FUEL & INJECTION PUMP/ B27834

4

7008399

GASKET, MANIFOLD INTAKE See Illustration MANIFOLDS/ B27840

5

7008400

GASKET, MANIFOLD EXHAUST See Illustration MANIFOLDS/ B27840

6

7008467

GASKET, EGR VALVE See Illustration EGR VALVE/ B27842

7

7008409

GASKET, ROCKER ARM See Illustration ROCKER ARM COVER/ B27830

8

6680778

O-RING See Illustration INJECTION NOZZLES/ B27838

9

6685498

GASKET See Illustration INJECTION NOZZLES/ B27838

10

7000619

ORING See Illustration INJECTION NOZZLES/ B27838

11

6969824

GASKET, NOZZLE INJ See Illustration INJECTION NOZZLES/ B27838

12

7008448

GASKET, FLANGE WATER See Illustration WATER PUMP & THERMOSTAT/ B27839

13

7020988

GASKET See Illustration WATER PUMP & THERMOSTAT/ B27839 - thermostat cover - Was 6680844 - A

14

7008515

GASKET, TURBO See Illustration TURBOCHARGER/ B27841 - Was 6687147 - A

15

7008514

GASKET, TURBO See Illustration TURBOCHARGER/ B27841 - Was 6680893 - A

16

7000642

WASHER, SEALING COPPER See Illustration TURBOCHARGER/ B27841

17

7008516

GASKET See Illustration TURBOCHARGER/ B27841 - not in kit - can use 6680570

17

6680570

GASKET oil return tube - will replace 7008516

18

7000636

GASKET, EGR BASE See Illustration EGR COOLER/ B27843

19

7000635

GASKET, EGR COOLER See Illustration EGR COOLER/ B27843

20

7000633

GASKET, EGR VALVE See Illustration EGR VALVE/ B27842

21

7000634

GASKET, EGR VALVE See Illustration EGR VALVE/ B27842

Выбрано товаров: 22
