Запчасти Bobcat S-Series ENGINE SPEED CONTROL (SJC) (4616 mm) (181.7) Hand Cable - (2292 mm) (90.3) Foot Cable POWER UNIT

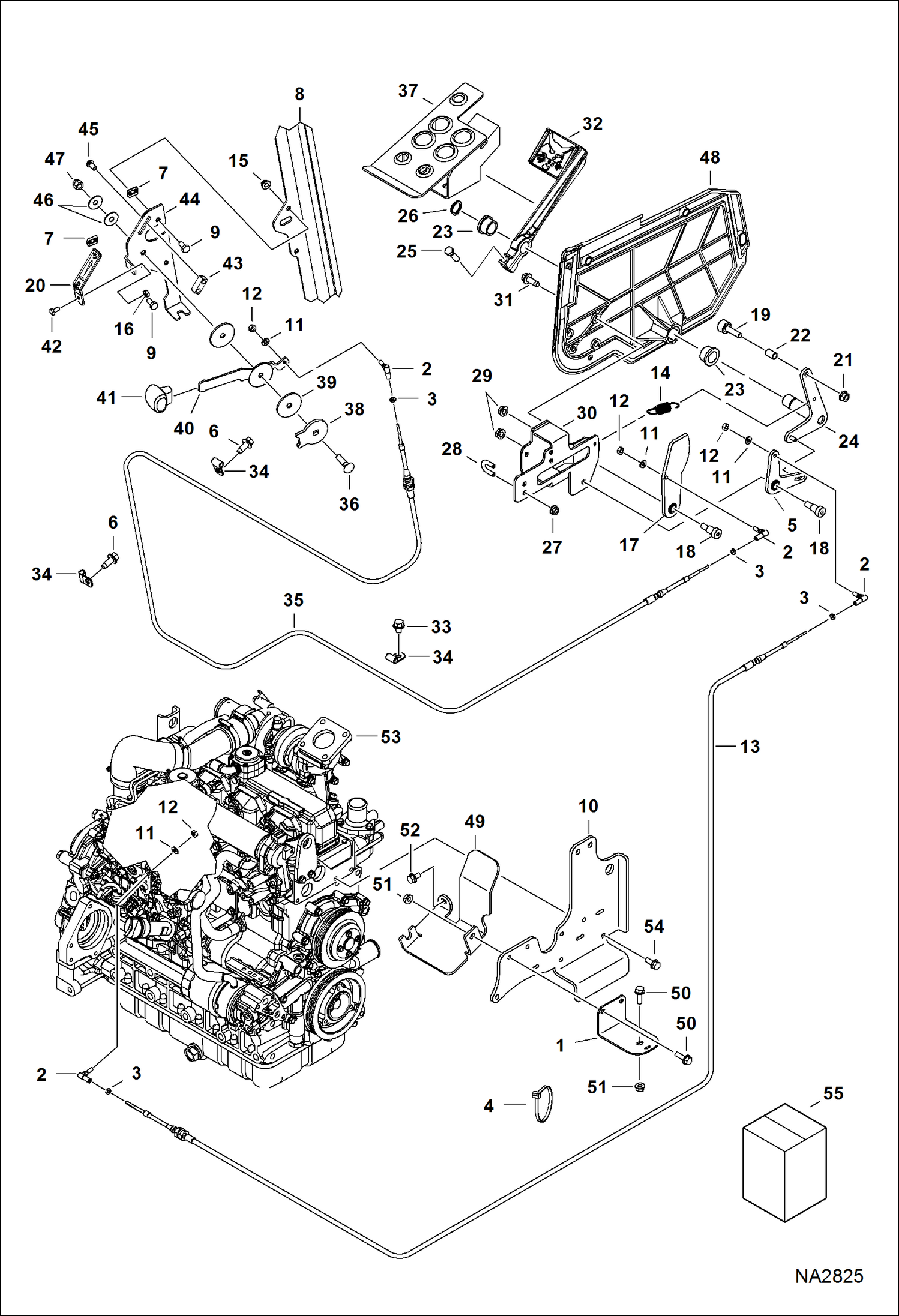

Схема запчастей Bobcat S-Series - ENGINE SPEED CONTROL (SJC) (4616 mm) (181.7) Hand Cable - (2292 mm) (90.3) Foot Cable POWER UNIT

Артикул

Название

Примечание

Количество

1

BRACKET, THROTTLE See Illustration ENGINE & ATTACHING PARTS/ NA6359 NLA - Was 7190164 - A

2

6644965

BALL JOINT

3

14D10

NUT

4

6624289

STRAP, TIE

5

LEVER See BTI426 - NLA - Was 7191528 - A

6

84G3712

BOLT 5

7

774220

NUT

8

CAB, ASSY See Illustration OPERATOR CAB/ NA1122

9

17C510

BOLT

10

MOUNT, MUFFLER See Illustration ENGINE & ATTACHING PARTS/ NA1279

11

25E11

WASHER

12

62D4

NUT

13

CABLE, THROTTLE See BTI426 - NLA - foot cable - 2292 mm (90.3'') - Was 7196284 - A

14

7188749

SPRING

15

55D5

NUT

16

61D4

NUT 5

17

CAM, LEVER See BTI426 - NLA - Was 7176043 - A

18

38C816

BOLT

19

6737692

BEARING

20

7169911

PLATE, DECAL

21

98D6

NUT

22

6737693

SPACER

23

7159624

BUSHING

24

LEVER See BTI426 - NLA - Was 7176039 - A

25

17C620

BOLT

26

6534668

SNAP RING

27

57D5

NUT

28

6592766

U-BOLT

29

57D6

NUT 5

30

MOUNT See BTI426 - NLA - Was 7176037 - A

31

84G3716

SCREW 5

32

7164294

PEDAL, FOOT THROTTLE

33

35C612

BOLT

34

30H20

CLIP

35

CABLE See BTI426 - NLA - hand cable - 4616 mm (181.7'') - Was 7166623 - A

36

37C624

BOLT

37

7157725

PEDAL ASSY

38

7166269

WASHER

39

7159386

WASHER

40

7166172

HANDLE

41

7166173

HANDLE black was orange

42

17C408

BOLT

43

7166174

BLOCK

44

7166171

BRACKET

45

25G510

BOLT

46

6630038

WASHER

47

59D6

NUT

48

7180032

PANEL, RH

49

BRACKET, CABLE See Illustration ENGINE & ATTACHING PARTS/ NA6359 NLA - Was 7174813 - A

50

59CM825

Screw Hex FLNG W/T8.8

51

43DM8

NUT

52

59CM816

BOLT

53

ENGINE See Illustration ENGINE & GASKET KITS/ NA2401

54

59CM820

SCREW HX FLNG W/T 8.8

55

KIT, THROTTLE FOOT See BTI426 - NLA - Was 7213423 - B

Выбрано товаров: 55
