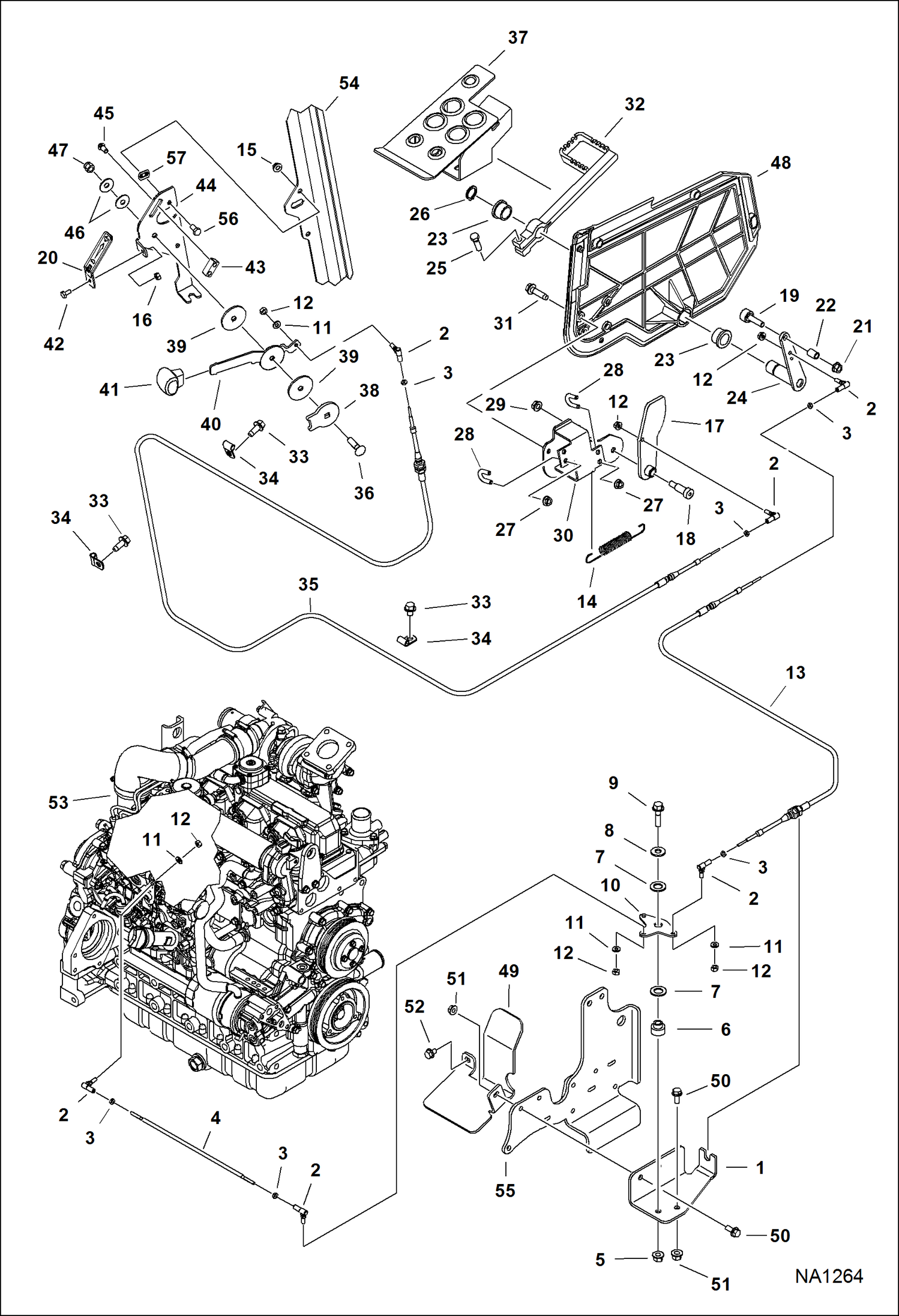

Запчасти Bobcat S-Series ENGINE SPEED CONTROL (SJC) (S/N A3NT11001 - 11888, A3NU11001 - 11023) POWER UNIT

1

7180954

MOUNT

2

6644965

BALL JOINT

3

14D10

NUT

4

7168962

ROD

5

89D6

NUT

6

7157731

TUBE SPACER

7

25E18

WASHER

8

6700170

WASHER

9

49C624

SCREW

10

7157729

BELLCRANK

11

25E11

WASHER

12

62D4

NUT

13

7158988

CABLE, THROTTLE

14

7168921

SPRING

15

55D5

NUT

16

61D4

NUT 5

17

7170374

CAM, WELDMENT

18

38C816

BOLT

19

6737692

BEARING

20

7169911

PLATE, DECAL

21

98D6

NUT

22

6737693

SPACER

23

7159624

BUSHING

24

7167173

PIVOT ASSY

25

17C620

BOLT

26

6534668

SNAP RING

27

57D5

NUT

28

6592766

U-BOLT

29

57D6

NUT 5

30

7167169

MOUNT

31

84G3716

SCREW 5

32

7164294

PEDAL, FOOT THROTTLE

33

31C612

BOLT

34

30H20

CLIP

35

7213435

CABLE, THROTTLE hand cable - 4724 mm (186'') - Was 7166623 - A

36

37C624

BOLT

37

7157725

PEDAL ASSY

38

7166269

WASHER

39

7159386

WASHER

40

7166172

HANDLE

41

7166173

HANDLE black was orange

42

17C408

BOLT

43

7166174

BLOCK

44

7166171

BRACKET

45

25G510

BOLT

46

6630038

WASHER

47

59D6

NUT

48

7180032

PANEL, RH Was 7156919 - A

49

7174814

BRACKET, CABLE

50

59CM825

Screw Hex FLNG W/T8.8 Was 59CM820 - B

51

43DM8

NUT

52

59CM816

BOLT

53

ENGINE See Illustration ENGINE & GASKET KITS/ NA2401

54

CAB, ASSY See Illustration OPERATOR CAB/ NA1122

55

MOUNT, MUFFLER See Illustration ENGINE & ATTACHING PARTS/ NA1279

56

17C510

BOLT

57

774220

NUT
