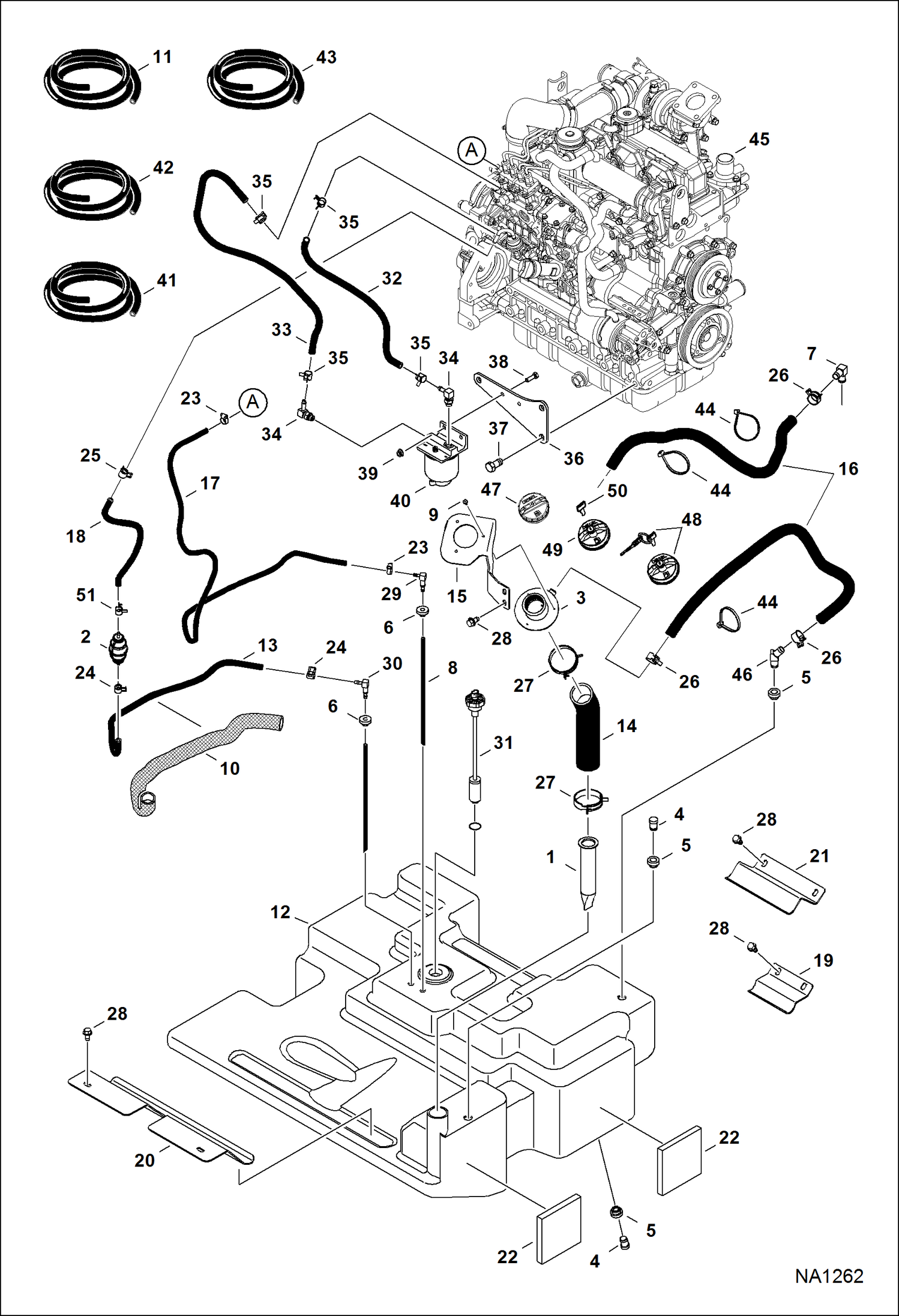

Запчасти Bobcat S-Series ENGINE & ATTACHING PARTS (Fuel System) POWER UNIT

1

7120881

SCREEN, FILLER Was 6569219 - A

2

6657734

PUMP, PRIMER HAND barbed fittings for 6,35 mm (.25'') ID hose

2

7219755

PUMP, PRIMER HAND (1) barbed fitting for 6,35 mm (.25'') ID hose & (1) barbed fitting for 7,94 mm (.3125'') ID hose

3

6701449

FILLER TUBE

4

7203382

PLUG, STEEL Was 6717404 - A

5

6717402

BUSHING 0.54'' ID

6

6735696

GROMMET

7

6808798

ELBOW 90 degree

8

6735249

HOSE, FUEL

9

7106279

BOLT

10

7178623

COVER, HOSE

11

6577822

HOSE bulk - sold per foot - .3125'' ID

12

7130652

TANK, FUEL

13

HOSE, FUEL NLA - 641,35 mm (25.25'') long - Order Ref. 41

14

7176970

HOSE, FUEL FORMED

15

7176971

BRACKET, FUEL

16

HOSE, FUEL NLA - 749,3 mm (29.5'') long - Order Ref. 42

16

HOSE, FUEL NLA - 851 mm (33.5'') long - Order Ref.42

17

HOSE, FUEL NLA - 1231,9 mm (48.5'') long - Order Ref. 43

18

HOSE, FUEL NLA - 6,35 mm (.25'') ID - 368 mm (14.5'') long - Order Ref 41

18

HOSE, FUEL NLA - 7,94 mm (.3125'') ID - 368 mm (14.5'') long - Order Ref. 11

19

7163765

BRACKET, FUEL Use on wheel loaders only

20

7183784

BRACKET FUEL Was 7163766 - A

21

7163768

BRACKET, FUEL Use on track loaders only

22

7170635

INSULATION, TANK FUEL 19 mm (.75'') thick

22

7224427

INSULATION, TANK FUEL 31,8 mm (1.25'') thick

23

42HS04

CLAMP, HOSE

24

5HM13

CLAMP

25

5HM14

CLAMP Use W/Ref. 41

25

5HM15

CLAMP Use W/Ref. 11

26

5HM22

CLAMP

27

5HM58

CLAMP

28

84G3712

BOLT 5

29

7101291

ELBOW 3 barb on outlet end

30

6598908

ELBOW

31

7179839

SENSOR FUEL W/gasket - Was 6680438 - A

32

HOSE, FUEL NLA - 495,3 mm (19.5'') long - Order Ref. 44

33

HOSE, FUEL NLA - 698,5 mm (27.5'') long - Order Ref. 44

34

6715183

ELBOW

35

5HM14

CLAMP

36

7143931

MOUNT, FILTER

37

6730894

BOLT

38

43C516

BOLT

39

55D5

NUT

40

6667353

FILTER ASSY

40

6667352

FILTER, FUEL W/SEPARATOR 12

40

6658180

PLUG, BLEED

41

6577821

HOSE bulk - sold per foot - 0.25'' ID

42

6578172

HOSE bulk - sold per foot

43

6578169

HOSE bulk - sold per foot - 0.19'' ID

44

6624289

STRAP, TIE

45

ENGINE See Illustration ENGINE & GASKET KITS/ NA2401

46

7203384

FITTING, ELBOW 45 degree - Was 7122519 - B

47

7113340

CAP. DIESEL

48

7121223

CAP. DIESEL LOCKING

49

7023550

CAP, DIESEL LOCKING

50

6693241

KEY 10 ignition - single key W/O ring

51

5HM13

CLAMP Use W/Ref. 41

51

5HM15

CLAMP Use W/Ref. 11
