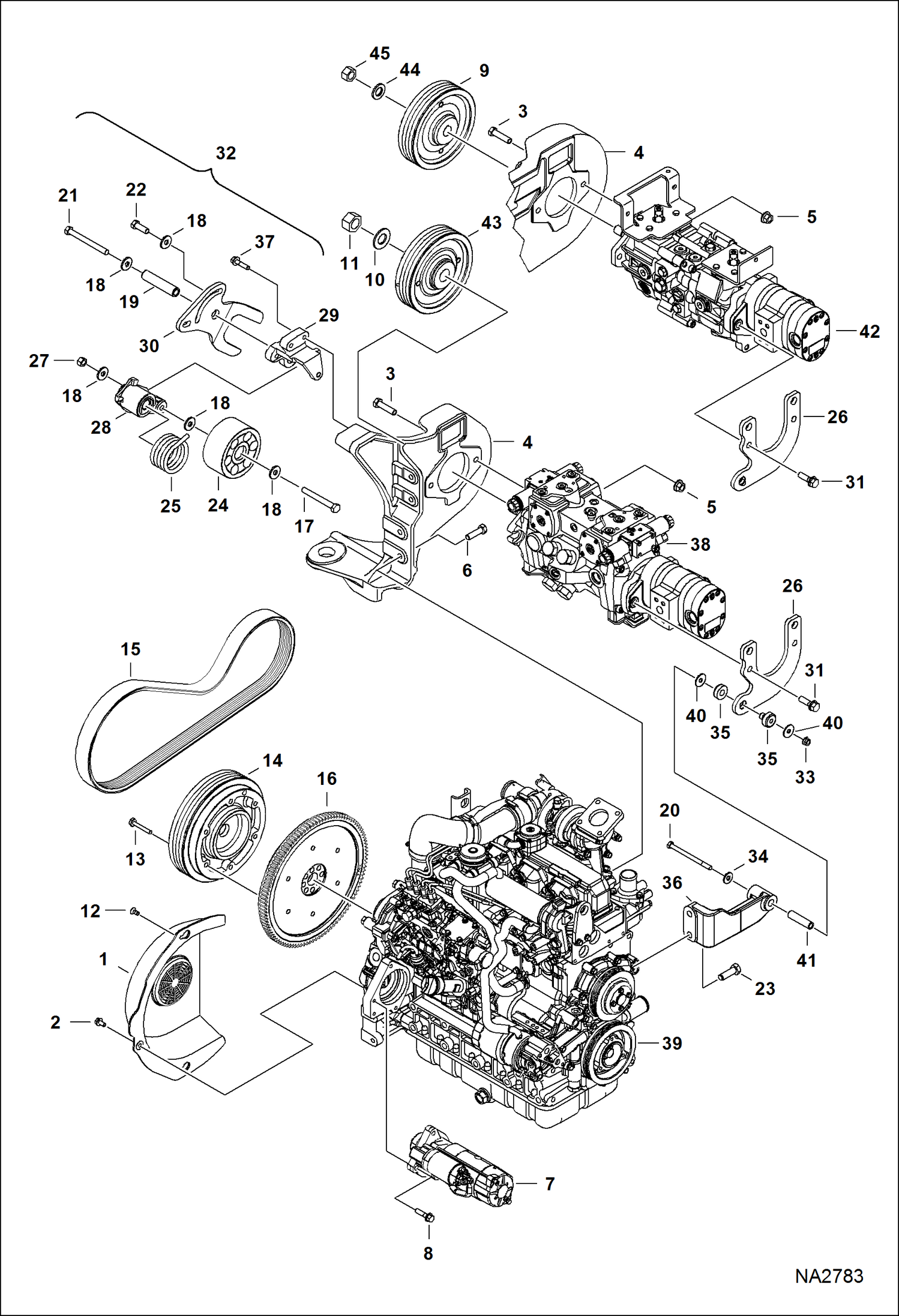

Запчасти Bobcat S-Series ENGINE & ATTACHING PARTS (Belt Drive) (S/N A3NT12030 & Above, A3NU11045 & Above) POWER UNIT

1

7142422

SHIELD, FLYWHEEL

2

59CM816

BOLT

3

17C832

BOLT

4

7147861

MOUNT, ENG

5

83D8

NUT 5

6

7135124

SCREW

7

STARTER See Illustration STARTER/ B16488R

8

45C620

BOLT

9

7147858

PULLEY, PUMP HYD

10

6576033

WASHER

11

96D12

NUT

12

7155238

BOLT

13

7110310

SCREW

14

7141780

FLYWHEEL

15

7188792

BELT, DRIVE Was 7147859 - A

16

FLYWHEEL, ENG ASSY See Illustration CRANKCASE/ B27826

17

7CM12100

BOLT

18

7152658

WASHER

19

7152605

SLEEVE

20

17C680

BOLT

21

55CM12120

BOLT

22

55CM1235

BOLT

23

7147745

SCREW

24

7167165

WHEEL, TENSIONER

25

7145358

SPRING

26

7193687

BRACKET, MOUNTING

27

53DM12

NUT

28

7167164

ARM, TENSIONER

29

7131211

MOUNT

30

7174407

ARM, IDLER

31

45C828

BOLT

32

7141788

IDLER ASSY Ref. 17-19, 21, 22, 24, 25 & 27-30

33

83D6

NUT 5 Wasa 53D6 - B

34

27E6

WASHER 5

35

7149357

MOUNT, LOAD ISOLATOR

36

7194572

MOUNT

37

49C636

BOLT

38

PUMP, HYD See Illustration HYDROSTATIC PUMP/GEAR PUMP/ NA1309 - SJC

39

ENGINE See Illustration ENGINE & GASKET KITS/ NA2401

40

6737388

WASHER

41

7147350

SPACER, TUBE

42

PUMP, HYD See Illustration HYDROSTATIC PUMP/GEAR PUMP/ NA1309 - manual controls, AHC & ACS

43

7155309

PULLEY

44

6805550

WASHER

45

96D16

NUT
