Запчасти Bobcat S-Series ENGINE & ATTACHING PARTS (Air Cleaner & Muffler) POWER UNIT

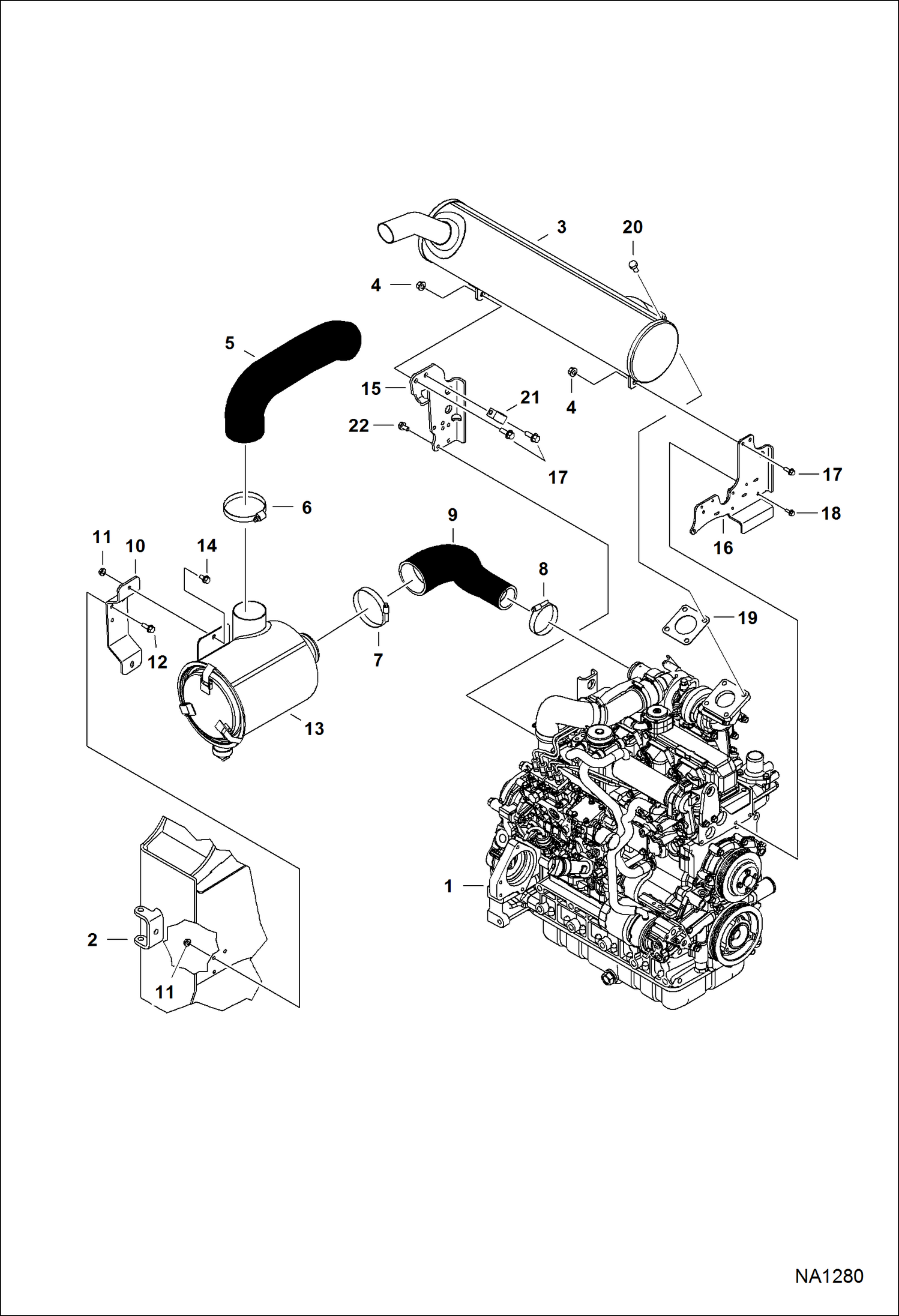

Схема запчастей Bobcat S-Series - ENGINE & ATTACHING PARTS (Air Cleaner & Muffler) POWER UNIT

Артикул

Название

Примечание

Количество

1

ENGINE See Illustration ENGINE & GASKET KITS/ NA2401

2

MAIN FRAME See Illustration MAIN FRAME/ NA1000

3

7142021

MUFFLER See Illustration MUFFLER/PURIFIER/ NA2072

4

89D6

NUT

5

7237648

HOSE, AIR FORMED Was 7145659 - C

6

42H52

CLAMP

7

42HC375

CLAMP

8

42HC300

CLAMP

9

7145660

HOSE, AIR FORMED

10

7157092

BRACKET

11

97D6

NUT 10

12

84G3712

BOLT 5

13

FILTER, AIR CLEANER ASSY See Illustration AIR CLEANER/ NA2170

14

35C612

BOLT

15

7236162

MOUNT, MUFFLER Was 7161893 - A

16

MOUNT, MUFFLER See Illustration ENGINE & ATTACHING PARTS/ NA6359 NLA - Was 7155193 - A

17

35C616

BOLT 5

18

59CM820

SCREW HX FLNG W/T 8.8

19

7102747

GASKET

20

5CM1020

SCREW

21

30H65

CLIP Was 30HJ612 - B

22

59CM816

BOLT

Выбрано товаров: 22
