Запчасти Bobcat S-Series CONTROLS ELECTRICAL (ACS) ELECTRICAL SYSTEM

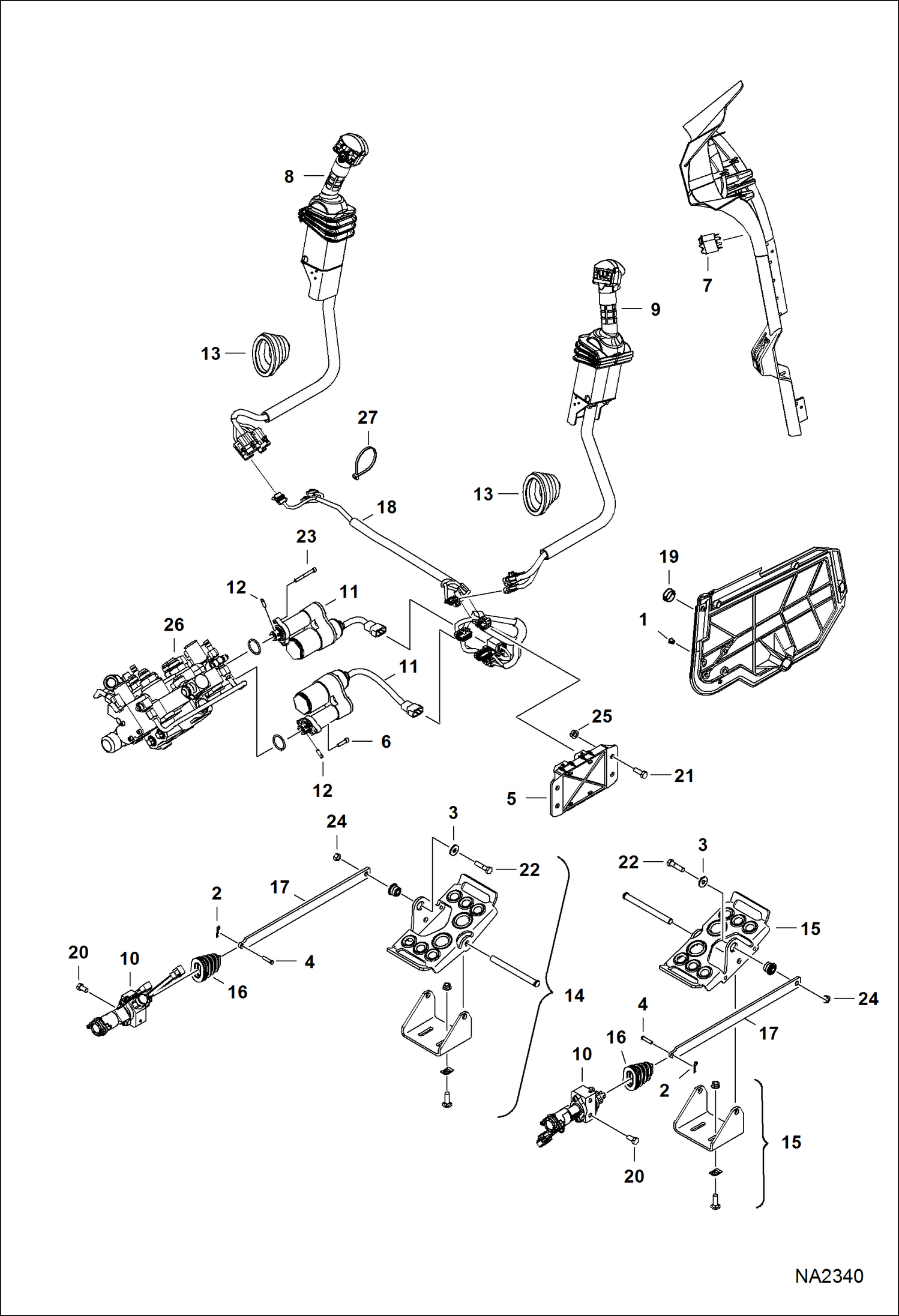

Схема запчастей Bobcat S-Series - CONTROLS ELECTRICAL (ACS) ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

5289686

PLUG black - 0.38'' dia hole

2

6513495

COTTER PIN

3

6563914

WASHER

4

6564654

PIN

5

6680410

CONTROLLER plastic - W/ 3-connector plug

6

29G416

BOLT Was 6814021 - A

7

7001713

SWITCH

8

LEVER, RH See Illustration CONTROLS ELECTRICAL/ NA2799

9

LEVER, LH See Illustration CONTROLS ELECTRICAL/ NA2799

10

7003496

SENSOR

11

7101672

ACTUATOR

12

7108236

PIN

13

7147815

BOOT

14

PEDAL ASSY See Illustration CONTROL PEDALS/ NA1261 - LH

15

PEDAL ASSY See Illustration CONTROL PEDALS/ NA1261 - RH

16

7153503

BOOT

17

7154903

LINK

18

7164144

HARNESS

19

7166315

PLUG

20

1C612

BOLT

21

1C616

BOLT

22

1C624

BOLT

23

69G436

BOLT

24

95D6

NUT

25

97D6

NUT 10

26

VALVE, CONTOL See Illustration HYDRAULIC CONTROL VALVE/ NA1217

27

6624289

STRAP, TIE

Выбрано товаров: 27
