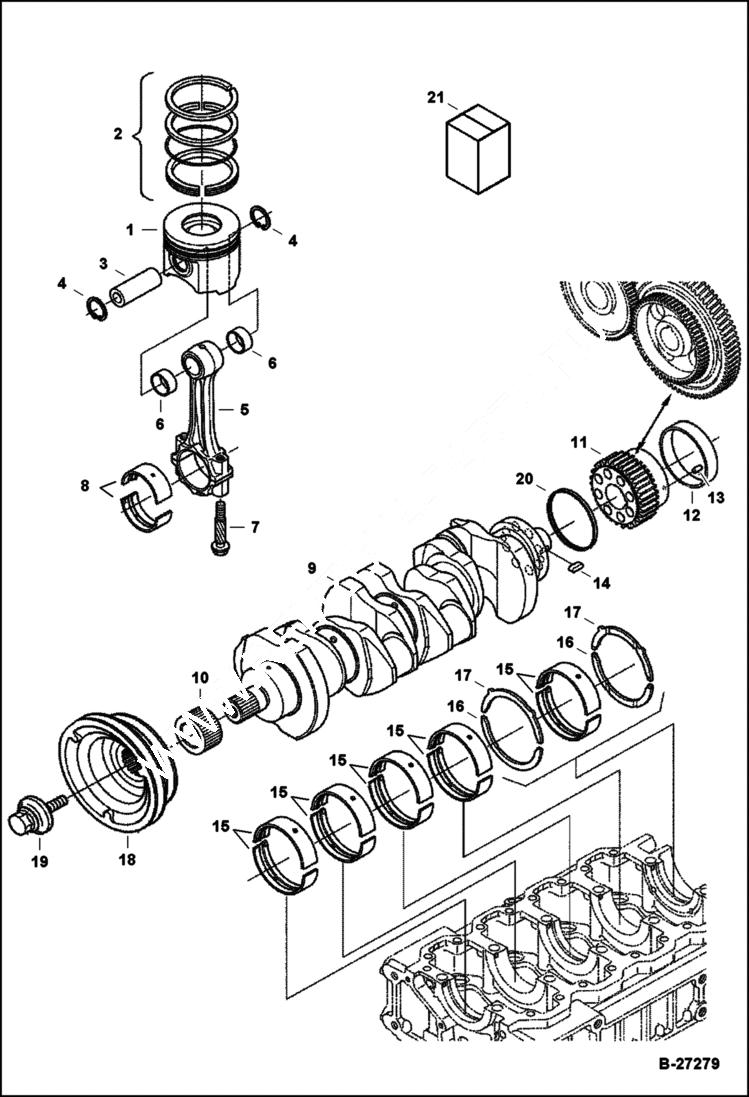

Запчасти Bobcat S-Series PISTON & CRANKSHAFT POWER UNIT

1

7000682

PISTON, ENG (05) std (1J700-2111)

1

7000683

PISTON, ENG (00) std (1J700-2112)

1

7000684

PISTON, ENG (10) std (1J700-2113)

1

7000686

PISTON, ENG OS +.25 mm (05) (1J700-2111 OS25)

1

7000687

PISTON, ENG OS +.25 mm (00) (1J700-2112 OS25)

1

7000688

PISTON, ENG OS (10) +0,25 mm (1J700-2113)

2

7000680

RING, PISTON std

2

7000681

RING, PISTON +0,25 mm

3

7000685

PIN, PISTON ENG

4

7000596

CIRCLIP

5

7020997

ROD, CONNECTING

6

7000689

BUSHING, PIN PISTON

7

BOLT NLA - Order 2 of 7020998 bolt and be advised of different torque specs

8

7000691

BEARING, ENG ROD CONNECTING std blue set

8

7000692

BEARING, ENG ROD CONNECTING std set

8

7000693

BEARING, ENG ROD CONNECTING -0,20 mm set

8

7000694

BEARING, ENG ROD CONNECTING -0,40 mm set

9

7000695

CRANKSHAFT, ENG

10

7000616

GEAR, DRIVE

11

7000759

GEAR, CRANKSHAFT

12

7000696

SLEEVE, WEAR

13

3974395

PIN

14

7000749

KEY, SHAFT

15

7000697

BEARING, ENG CRANKSHAFT std set

15

7000703

BEARING, ENG CRANKSHAFT -0,20 mm set

15

7000704

BEARING, ENG CRANKSHAFT -0,40 mm set

16

7000698

WASHER, THRUST std

16

7000705

WASHER, THRUST +0,20 mm

16

7000706

WASHER, THRUST +0,40 mm

17

7000699

WASHER, THRUST std

17

7000707

WASHER, THRUST +0,20 mm

17

7000708

WASHER, THRUST +0,40 mm

18

7000585

PULLEY, DRIVE

19

7000748

BOLT W/washer

20

7002989

SEAL, OIL

21

7000700

KIT, BEARING ENG std - Ref. 8 & 15-17

21

7000701

KIT, BEARING ENG -0,20 mm/+0,20 mm - Ref. 8 & 15-17

21

7000702

KIT, BEARING ENG -0,40 mm/+0,40 mm - Ref. 8 & 15-17
