Запчасти Bobcat S-Series ENGINE SPEED CONTROL (SJC) (4224 mm) (166.3) Hand Cable - (2469 mm) (97.2) Foot Cable POWER UNIT

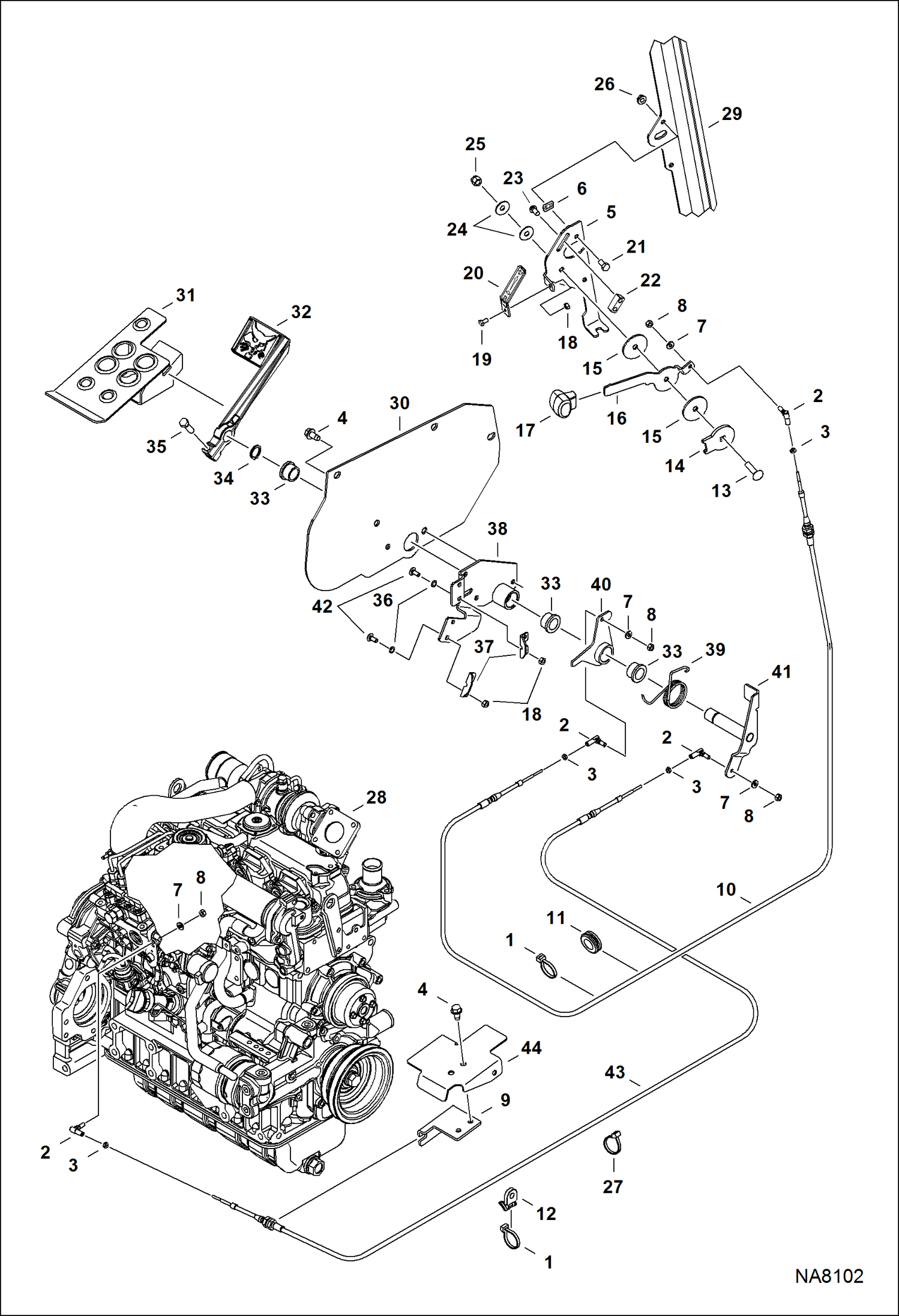

Схема запчастей Bobcat S-Series - ENGINE SPEED CONTROL (SJC) (4224 mm) (166.3) Hand Cable - (2469 mm) (97.2) Foot Cable POWER UNIT

Артикул

Название

Примечание

Количество

1

6624289

STRAP, TIE

2

6644965

BALL JOINT

3

14D10

NUT

4

84G3712

BOLT 5

5

7166171

BRACKET

6

774220

NUT

7

25E11

WASHER

8

62D4

NUT

9

7204325

MOUNT, THROTTLE

10

7213434

CABLE, THROTTLE hand cable - 4224 mm (166.3'')

11

7221861

GROMMET

12

6679034

MOUNT

13

37C624

BOLT

14

7166269

WASHER

15

7159386

WASHER

16

7166172

HANDLE

17

7166173

HANDLE

18

61D4

NUT 5

19

17C408

BOLT

20

7169911

PLATE, DECAL

21

17C510

BOLT

22

7166174

BLOCK

23

25G510

BOLT

24

6630038

WASHER

25

59D6

NUT

26

55D5

NUT

27

6675734

STRAP, TIE

28

ENGINE See Illustration ENGINE & GASKET KITS/ NA2410

29

CAB, ASSY See Illustration OPERATOR CAB/ NA6526

30

7213406

PANEL, RH

31

7181865

PEDAL ASSY

32

7164294

PEDAL, FOOT THROTTLE

33

7159624

BUSHING

34

6534668

SNAP RING

35

17C620

BOLT

36

6675212

RETAINER

37

7213396

CLAMP, CABLE

38

7213407

BRACKET, THROTTLE

39

7213411

SPRING, TORSION

40

7213412

LEVER

41

7213415

LEVER

42

17C410

BOLT 10

43

7213427

CABLE, THROTTLE foot cable - 2468 mm (97.2'')

44

SHIELD, ALT See Illustration ENGINE & ATTACHING PARTS/ NA6789

Выбрано товаров: 44
