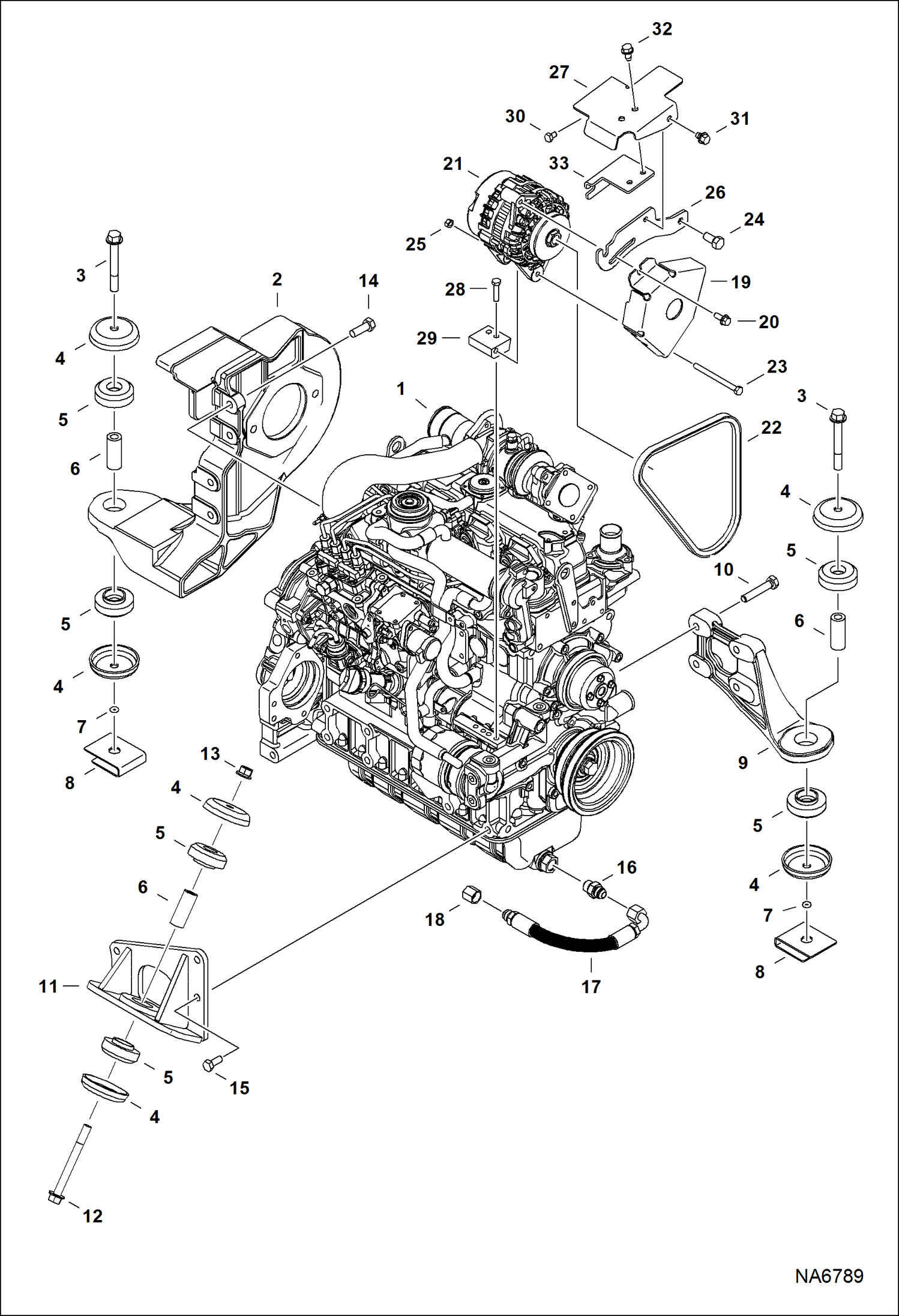

Запчасти Bobcat S-Series ENGINE & ATTACHING PARTS (Engine Mounts) POWER UNIT

1

ENGINE See Illustration ENGINE & GASKET KITS/ NA2410

2

7214069

MOUNT, PUMP

2

7225686

MOUNT, PUMP

3

31C864

BOLT

4

7116851

CUP

5

7000489

DAMPER

6

7141405

BUSHING

7

7120149

O-RING, RETAINING

8

7152037

NUT, RETAINING

9

7180029

MOUNT, ENG

9

7225684

MOUNT, ENG

10

7135124

SCREW

11

7191010

MOUNT, ENG

12

31C880

SCREW

13

83D8

NUT 5

14

6719829

BOLT

15

6719827

BOLT

16

15KB0808

FITTING, HYD CONNECTOR

17

7215765

HOSE, DRAIN

18

36K6

CAP

19

7141045

SHIELD, ALT

20

29CM820

SCREW

21

ALTERNATOR, 90 AMP See Illustration ALTERNATOR/ C3529

22

7143498

BELT

23

1CM8100

SCREW

24

5CM1020

SCREW Was 7120308 - D

25

53DM8

NUT

26

7139335

BRACKET, ALT

27

7217608

SHIELD, ALT

28

1CM835

BOLT

29

7135598

MOUNT, ALT

30

1CM812

BOLT

31

84G3708

SCREW

32

84G3712

BOLT 5

33

7204325

MOUNT, THROTTLE
