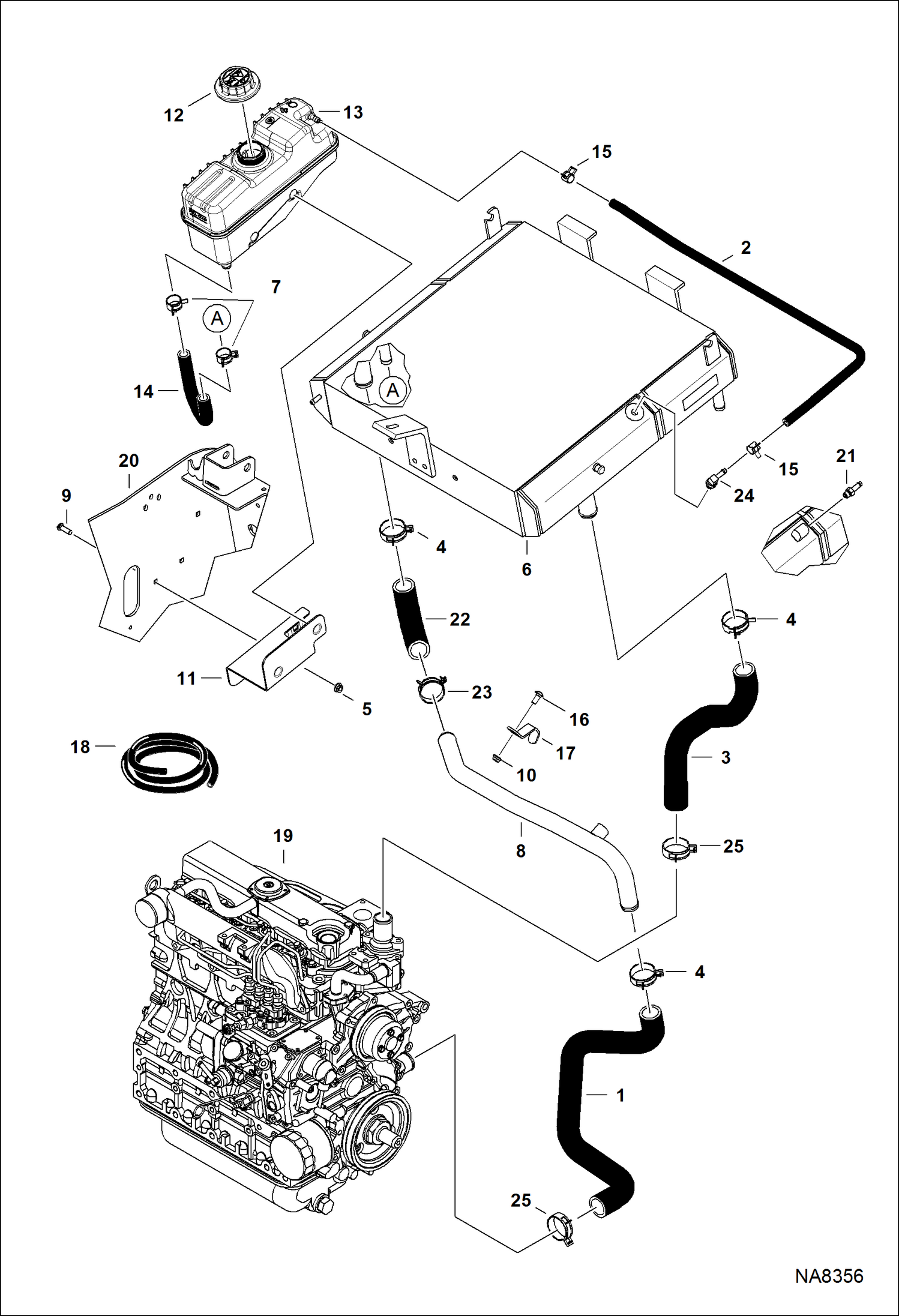

Запчасти Bobcat S-Series ENGINE & ATTACHING PARTS (Radiator Water Exchanger) (S/N A3NL & Above) POWER UNIT

Схема запчастей Bobcat S-Series - ENGINE & ATTACHING PARTS (Radiator Water Exchanger) (S/N A3NL & Above) POWER UNIT

Артикул

Название

Примечание

Количество

1

7226152

HOSE, WATER FORMED

2

HOSE, WATER NLA - 34'' (863,6mm) long - Order Ref. 18

3

7226151

HOSE, WATER FORMED

4

5HM42

HOSECLAMP

5

5HM44

CLAMP

6

7226240

EXCHANGER, OIL WATER

7

5HM42

HOSECLAMP

8

7234546

TUBE, COOLING

9

53C516

BOLT

10

55D5

NUT

11

7220031

MOUNT, TANK COOLANT

12

6733429

CAP

13

7220028

TANK, WATER COOLANT

14

7227549

HOSE, WATER FORMED

15

5HM14

CLAMP

16

10C512

BOLT

17

7235073

BRACKET

18

6577822

HOSE Bulk - sold per foot

19

ENGINE See Illustration ENGINE & GASKET KITS/ NA2410 See Ilustration ENGINE & GASKET KITS

20

MAIN FRAME See Illustration MAIN FRAME/ NA6525 See Illustration MAIN FRAME

21

7213056

FITTING, ADAPTER

22

7234665

HOSE, WATER

23

5HM40

HOSECLAMP

Выбрано товаров: 23
