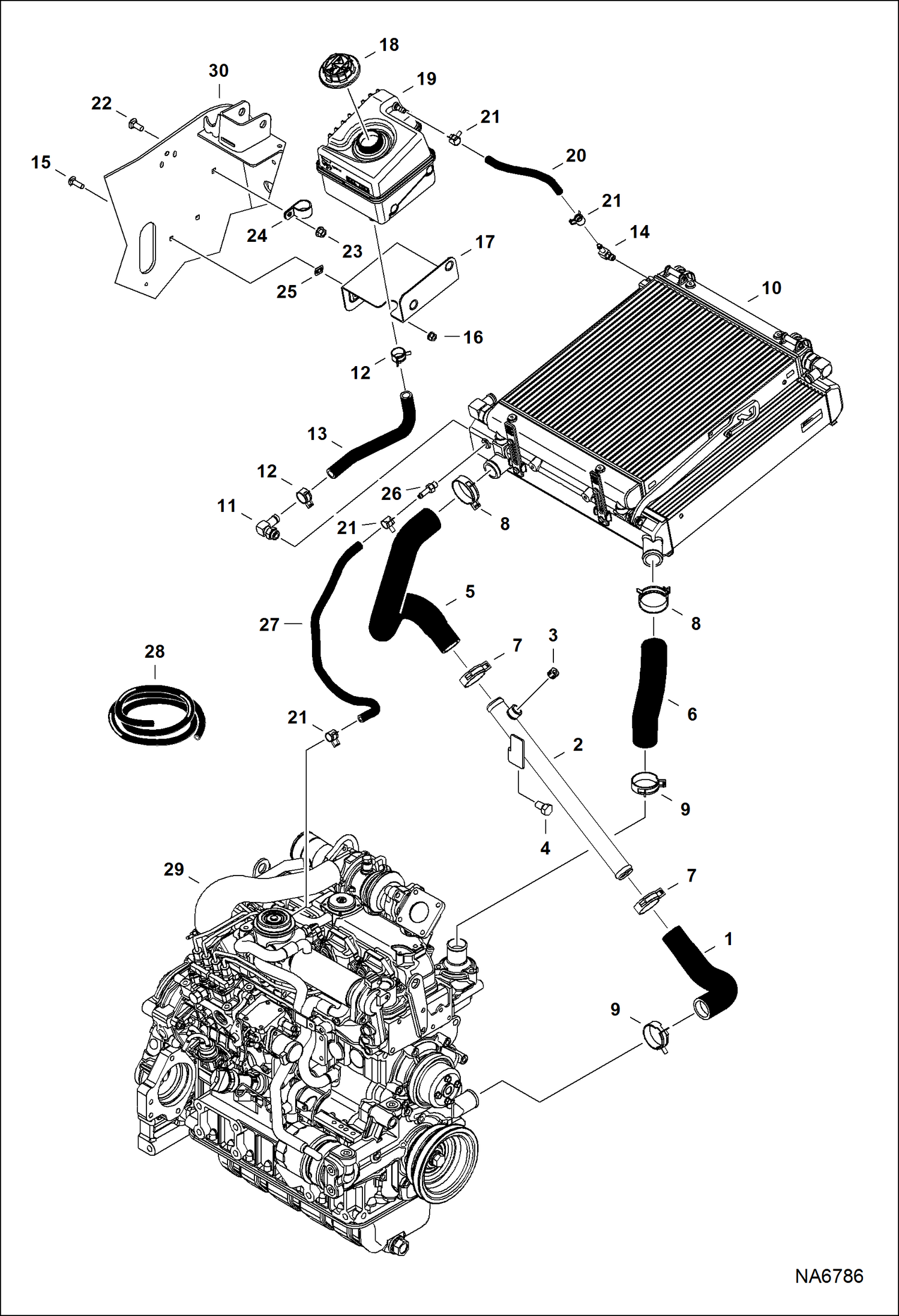

Запчасти Bobcat S-Series ENGINE & ATTACHING PARTS (Radiator Water Exchanger) (S/N A3NL11001 - ) POWER UNIT

1

7211861

HOSE, WATER LOWER

2

7211695

TUBE ASSY WATER W/Ref. 3

3

16F6

PLUG

4

6719827

BOLT

5

7211469

HOSE, WATER

6

7204637

HOSE, WATER

7

5HM42

HOSECLAMP

8

5HM44

CLAMP

9

5HM47

CLAMP

10

EXCHANGER, WATER RADIATOR See Illustration HYDROSTATIC CIRCUITRY/ NA6647

11

6680952

FITTING 90 DEG BARB

11

79K8

O RING 10

12

5HM23

CLAMP

13

7197790

HOSE, WATER FORMED

14

7204614

FITTING, ELBOW

15

37C516

BOLT

16

89D5

NUT

17

7144265

MOUNT, TANK

18

6733429

CAP

19

7137747

TANK, EXPANSION

20

HOSE NLA - 203,2 mm (8'') long - Order Ref. 28

21

5HM14

CLAMP

22

37C616

BOLT

23

89D6

NUT

24

30H73

CLAMP

25

774220

NUT

26

6734090

ADAPTER

27

HOSE NLA - 560 mm (22'') long - Order Ref. 28

28

6577822

HOSE bulk - sold per foot

29

ENGINE See Illustration ENGINE & GASKET KITS/ NA2410

30

MAIN FRAME See Illustration MAIN FRAME/ NA6525
