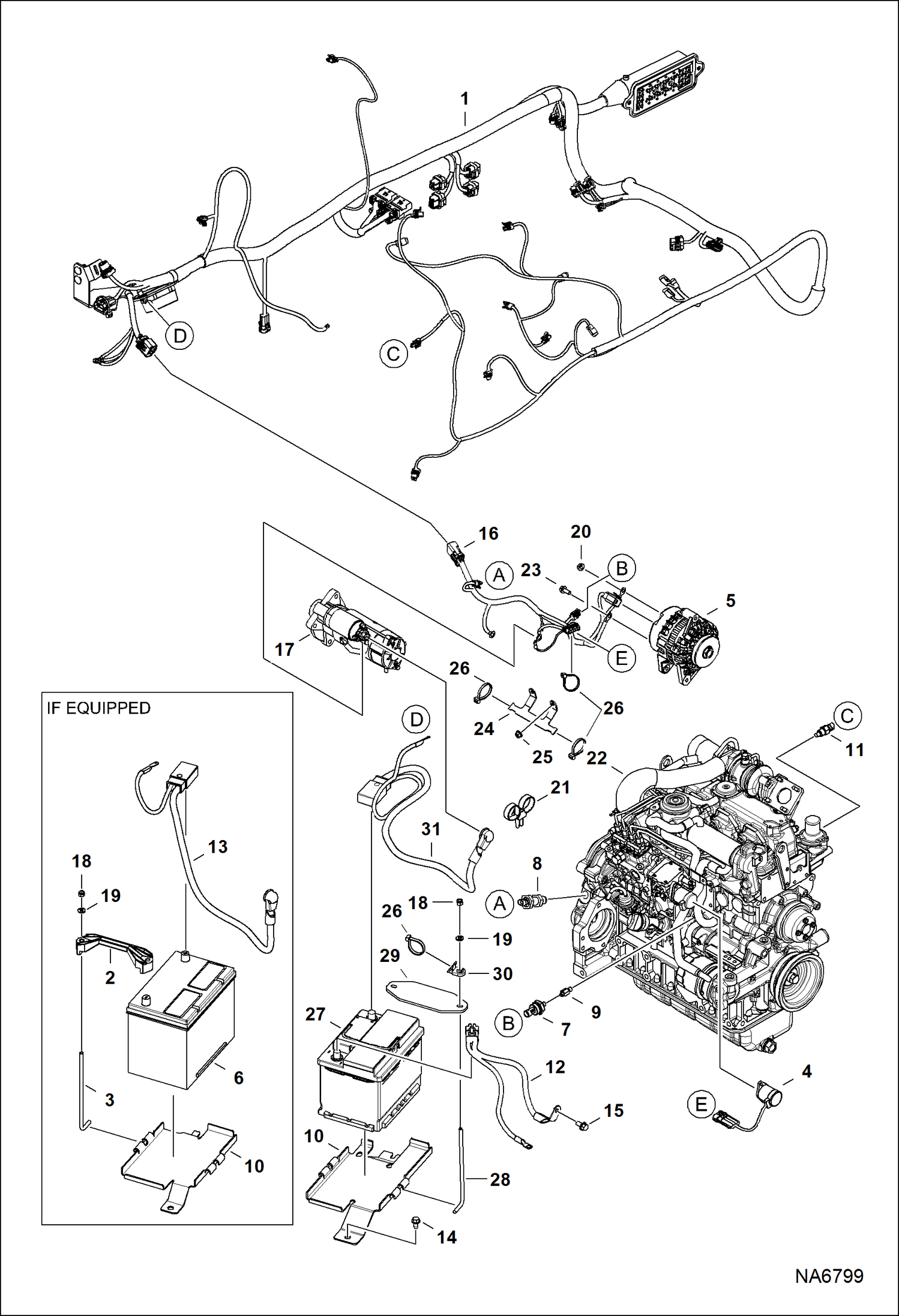

Запчасти Bobcat S-Series ENGINE ELECTRICAL CIRCUITRY (Engine Sensors, Battery, Alt & Starter) ELECTRICAL SYSTEM

1

HARNESS, MFR See Illustration ENGINE ELECTRICAL CIRCUITRY/ NA6567

2

6569203

CLAMP

3

6576280

BOLT

4

7000769

SOLENOID, SHUTOFF FUEL W/ 240 mm (9.45'') lead

5

ALTERNATOR See Illustration ALTERNATOR/ C3529

6

6674687

BATTERY, DRY 600 AMP

7

6697920

SENSOR, PRESS OIL ENG

8

6693921

SENSOR, RPM

9

7102451

FITTING

10

7192301

PAN, BATTERY

11

6718414

SENDER, TEMP ENG

12

7162966

CABLE, NEGATIVE

13

7162967

CABLE, POSITIVE

14

84G3712

BOLT 5

15

35C612

BOLT

16

7181037

HARNESS, ENG

17

STARTER See Illustration STARTER/ B16488R

18

59D5

NUT 5

19

25E15

WASHER

20

29CM820

SCREW

21

6678668

STRAP, DUAL TIE

22

ENGINE See Illustration ENGINE & GASKET KITS/ NA2410

23

43DM8

NUT

24

7160280

BRACKET, HARNESS

25

51DM8

NUT

26

6624289

STRAP, TIE
