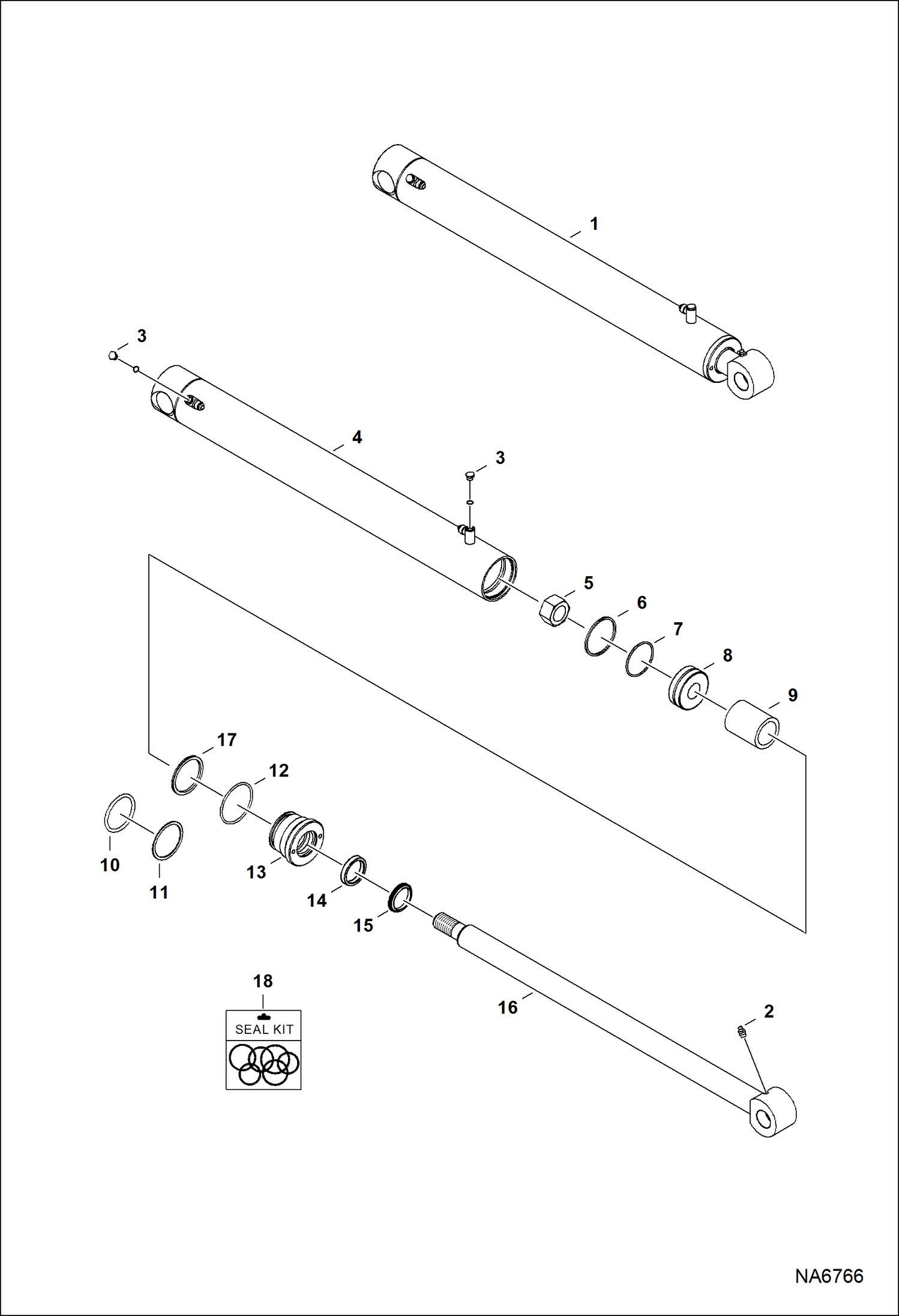

Запчасти Bobcat S-Series LIFT CYLINDER HYDRAULIC SYSTEM

1

7152266

CYLINDER, LIFT Ref. 2-18

2

10H25

FITTING, GREASE 5

3

6812170

PLUG

4

7152267

TUBE, CASE CYL LIFT

5

6810539

NUT

6

6516229

PISTON SEAL

7

25K30210

O-RING

8

6678932

PISTON 25,4 mm (1'') long - LH and RH lift cylinders must be serviced with same size pistons - W/Ref. 6 & 7

8

PISTON, ASSY See Illustration LIFT CYLINDER CUSHION/ NA6760 - if equipped - 60,9 mm (2.4'') long - W/Ref. 6 & 7

9

7196033

SPACER

10

54K60212

O-RING

11

73K332

RING back-up

12

54K40224

O-RING

13

6800686

HEAD, CYL TILT

14

6669267

SEAL back-up

15

6687000

WIPER ROD wiper

16

7152268

SHAFT, ROD CYL LIFT

17

7135489

KIT, SEAL Ref. 5-7, 10-12, 14 & 15
