Запчасти Bobcat S-Series HYDRAULIC CIRCUITRY (W/BPV Junction Block) HYDRAULIC SYSTEM

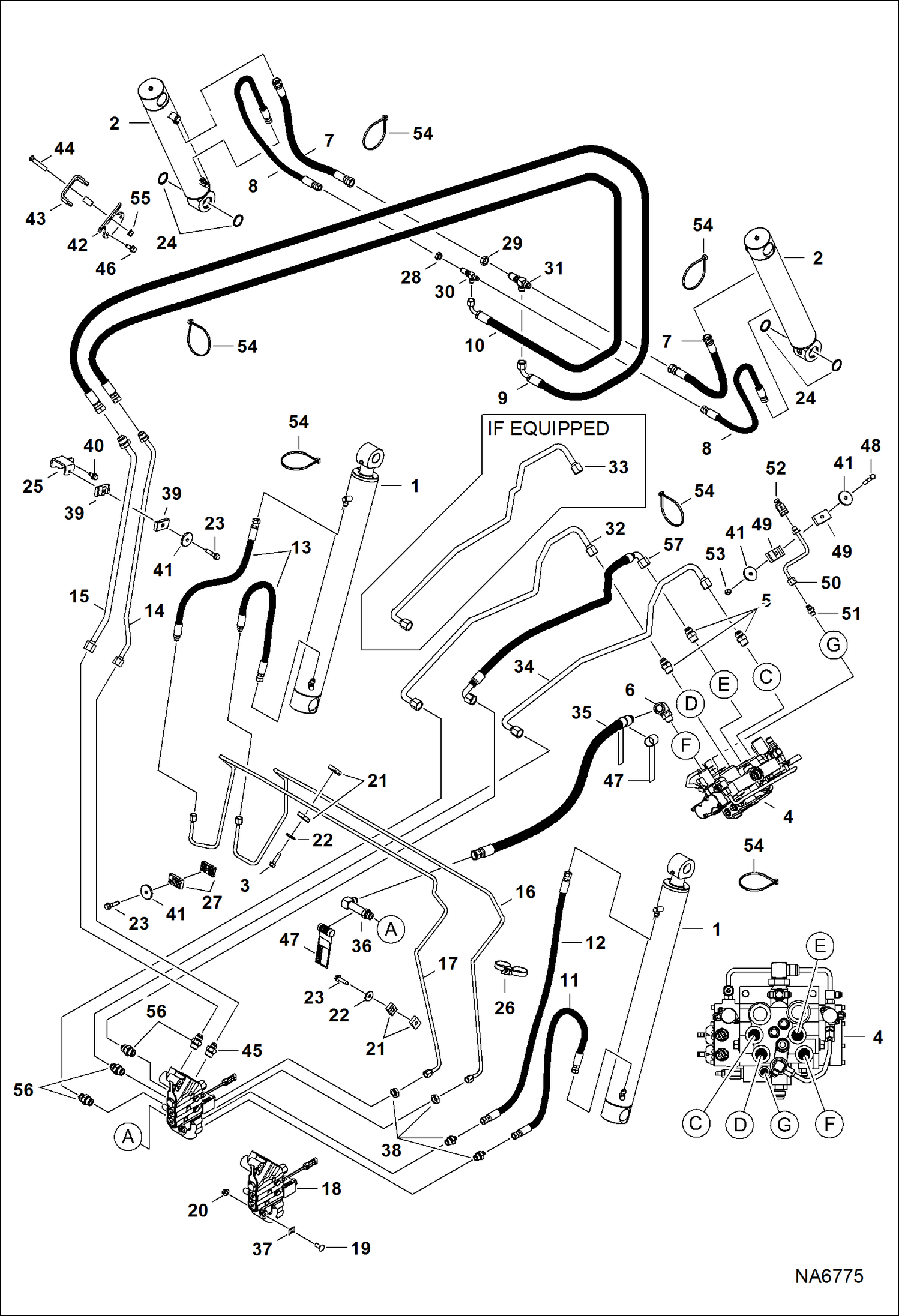

Схема запчастей Bobcat S-Series - HYDRAULIC CIRCUITRY (W/BPV Junction Block) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

CYLINDER, LIFT See Illustration LIFT CYLINDER/ NA6766

2

CYLINDER, TILT See Illustration TILT CYLINDER/ NA6577

3

84G3724

BOLT

4

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA6580 - manual controls

4

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA6582 - ACS, AHC, SJC

5

15KB1010

FITTING, HYD CONNECTOR

5

79K10

O RING 10

6

6814531

ELBOW

6

79K10

O RING 10

7

7179366

HOSE, HYD

8

7188997

HOSE, HYD

9

7160586

HOSE, HYD

10

7160604

HOSE, HYD

11

7179368

HOSE, HYD

12

7183332

HOSE, HYD

13

7116564

HOSE

14

7197118

TUBELINE, HYD

15

7197116

TUBELINE, HYD

16

7193546

TUBELINE, HYD

16

7232111

TUBELINE HYD

17

7193547

TUBELINE, HYD

17

7232112

TUBELINE HYD

18

7011060

VALVE, BPV

19

37C640

BOLT

20

83D6

NUT 5

21

6726277

CLAMP

22

619021

WASHER, 5 0.13'' thick - 32 mm (1.25'') OD

23

84G3728

BOLT

24

225855

SEAL, OIL 10

25

7197039

MOUNT, BULKHEAD RH

26

6678668

STRAP, DUAL TIE

27

7196075

CLAMP, TUBELINE

28

86F5

NUT

29

86F6

NUT

30

91K7

FITTING

31

91K6

TEE

32

7194715

TUBELINE, HYD

33

7194713

TUBELINE, HYD

34

7194714

TUBELINE, HYD

35

7189378

HOSE, HYD W/Ref. 47 - available only as an assembly W/one danger decal installed near the male threaded end of the hose

36

7211446

KIT, FITTING W/DECAL W/Ref. 47 - this elbow must always display the danger decal

36

79K10

O RING 10

37

6684033

NUT

38

15KB0608

FITTING, HYD CONNECTOR

39

6729605

CLAMP

40

84G3712

BOLT 5

41

872229

WASHER 0.19'' thick - 44.5 mm (1.75'') OD

42

7199814

CLAMP, HOSE

43

7199815

CLAMP, HOSE

44

37C632

BOLT

45

15KB0810

FITTING, HYD CONNECTOR

46

84G3716

SCREW 5

47

7170355

DECAL, DANGER

48

17C632

BOLT 5

49

7183298

CLAMP

50

7182882

TUBELINE, HYD

51

15KB0606

FITTING, HYD CONNECTOR

51

79K6

O RING 10

52

6684125

COUPLER

53

85D6

NUT, 5

54

6624289

STRAP, TIE

55

84G3740

BOLT

56

15KB1010

FITTING, HYD CONNECTOR
