Запчасти Bobcat S-Series LIFT KIT (Four Point) ACCESSORIES & OPTIONS

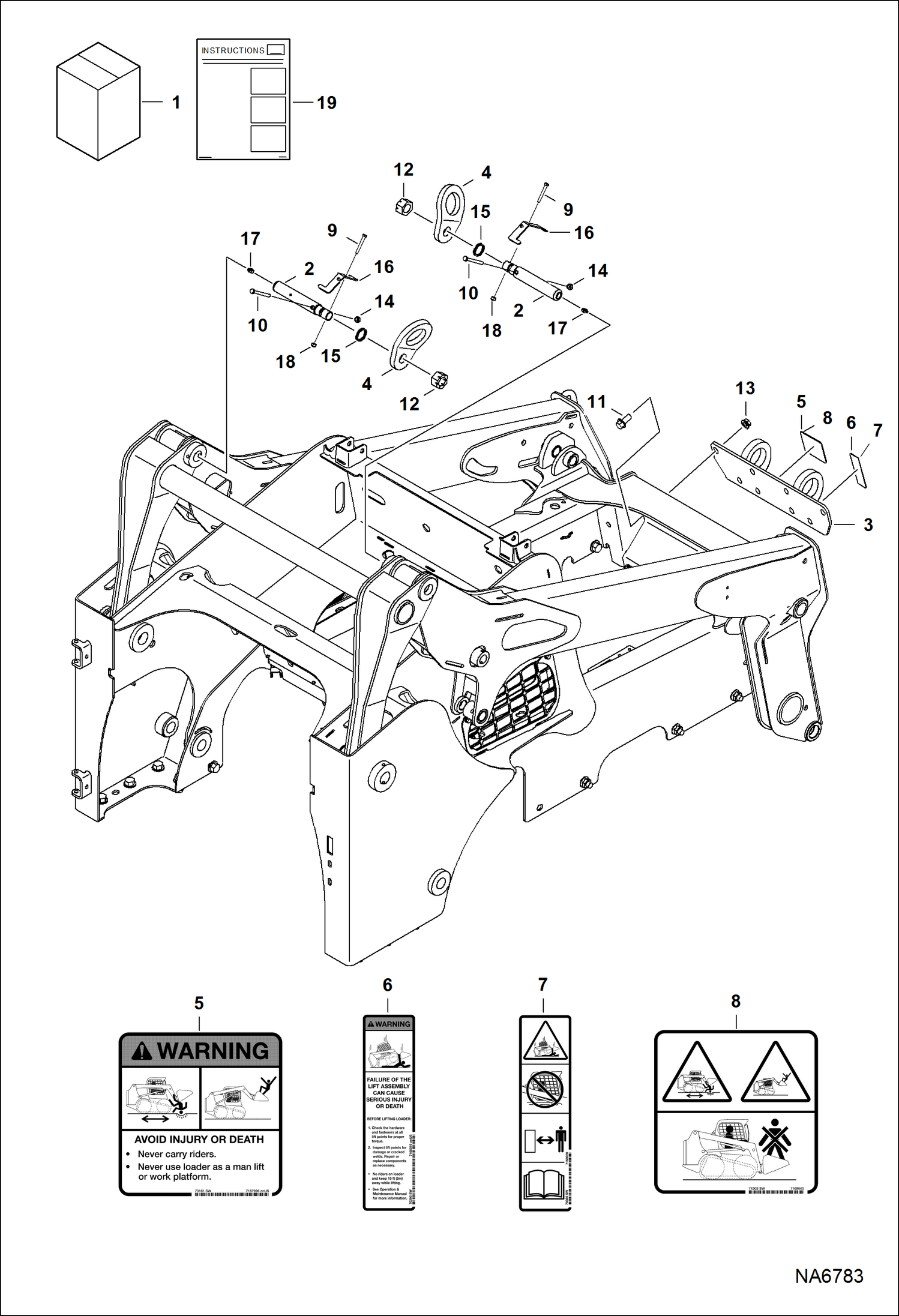

Схема запчастей Bobcat S-Series - LIFT KIT (Four Point) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

7161979

KIT, LIFT 4-POINT Ref. 2-19

1

RESEALING PLUG KIT See Illustration RESEALING KIT/ NA2775

2

7195483

PIN, PIVOT

3

7156606

BRACKET, ASSY

4

6706825

LIFT EYE

5

7167996

DECAL, WARNING

6

7168019

DECAL, WARNING

7

7168020

DECAL, WARNING no text

8

7168040

DECAL, WARNING no text

9

17C540

BOLT

10

17C660

BOLT

11

31C1024

BOLT

12

4D20

NUT

13

53D10

NUT

14

85D6

NUT, 5

15

7195619

WASHER, SPRING

16

7195617

BRACKET

17

10H25

FITTING, GREASE 5

18

87D5

NUT

19

6990047

INSTRUCTIONS

Выбрано товаров: 20
