Запчасти Bobcat S-Series ENGINE ELECTRICAL CIRCUITRY (Rear Lights & Back-up Alarm) ELECTRICAL SYSTEM

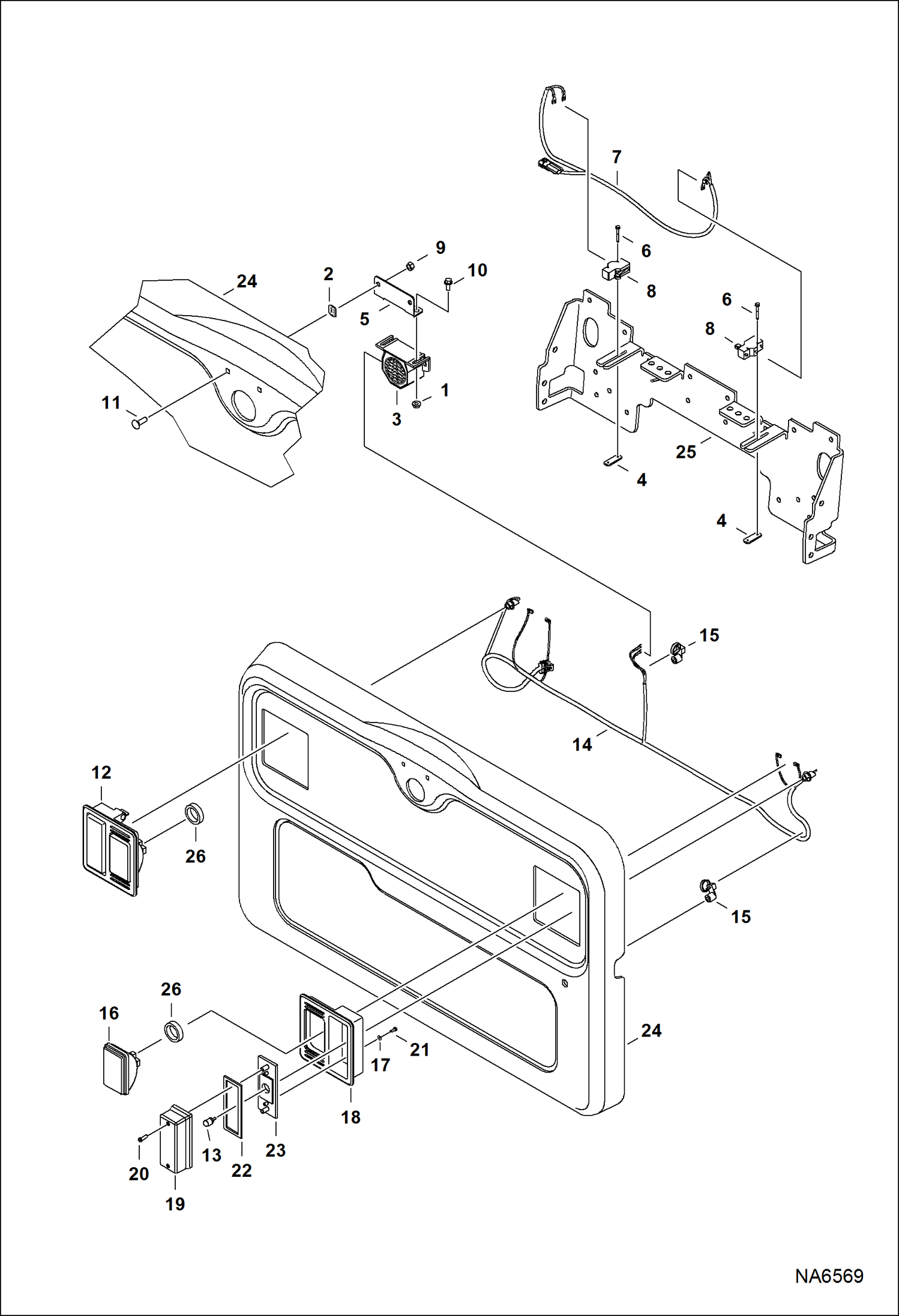

Схема запчастей Bobcat S-Series - ENGINE ELECTRICAL CIRCUITRY (Rear Lights & Back-up Alarm) ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

97D4

NUT

2

774220

NUT

3

6651512

ALARM, BACK-UP

3

6737189

DECAL, WARNING backup alarm

4

6702593

SPACER

5

7167871

MOUNT, ALARM

6

84G1320

BOLT

7

7175017

HARNESS, ALARM BACK-UP

8

6646781

SWITCH

9

61D5

NUT

10

35C410

BOLT 5

11

37C516

BOLT

12

6670284

LIGHT ASSY

13

6649481

LIGHT, WEDGE BASE

14

7217484

HARNESS, REAR DOOR

15

7002988

TIE, STUD MOUNT

16

6661353

LIGHT ASSY W/bulb - white

16

898731

1156 BULB

17

6672272

WASHER

18

6672279

MOUNT, LIGHT RUBBER

19

6672276

LENS, LIGHT RED

20

6672274

SCREW

21

6672273

SCREW

22

6672275

GASKET

23

6672277

BRACKET

24

REAR DOOR See Illustration REAR DOOR/ NA6413

25

MOUNT See Illustration PANELS/ NA6530
