Запчасти Bobcat S-Series ENGINE ELECTRICAL CIRCUITRY (Engine Sensors, Battery, Alt & Starter) ELECTRICAL SYSTEM

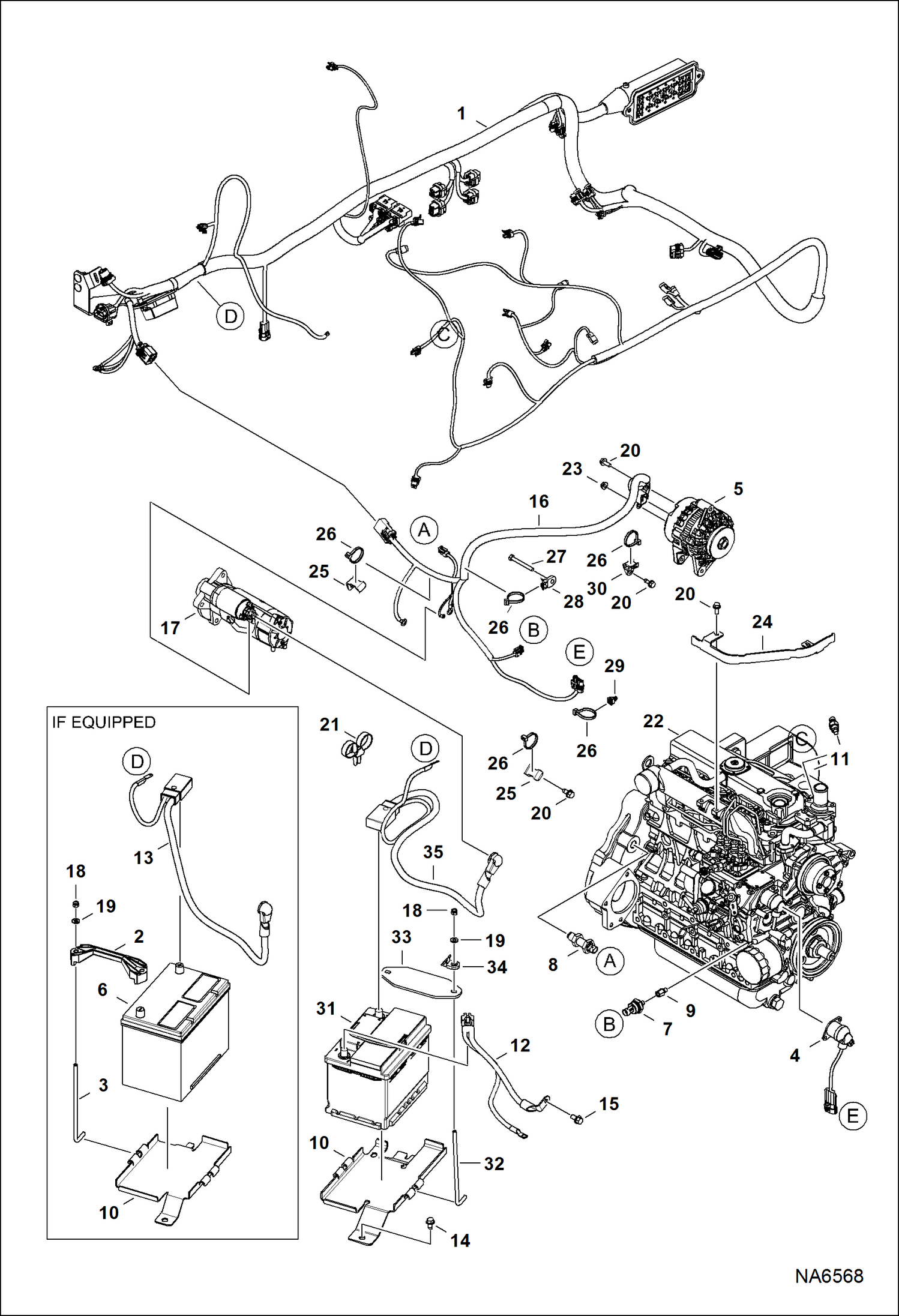

Схема запчастей Bobcat S-Series - ENGINE ELECTRICAL CIRCUITRY (Engine Sensors, Battery, Alt & Starter) ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

HARNESS, MFR See Illustration ENGINE ELECTRICAL CIRCUITRY/ NA6567

2

6569203

CLAMP

3

6576280

BOLT

4

7000769

SOLENOID, SHUTOFF FUEL W/ 240 mm (9.45'') lead

5

ALTERNATOR See Illustration ALTERNATOR/ C3529

6

6674687

BATTERY, DRY 600 AMP

7

6697920

SENSOR, PRESS OIL ENG

8

6693921

SENSOR, RPM

9

7102451

FITTING

10

7192301

PAN, BATTERY

11

6718414

SENDER, TEMP ENG

12

7162966

CABLE, NEGATIVE

13

7162967

CABLE, POSITIVE

14

84G3712

BOLT 5

15

35C612

BOLT

16

7181036

HARNESS, ENG

17

STARTER See Illustration STARTER/ B16488R

18

59D5

NUT 5

19

25E15

WASHER

20

29CM820

SCREW

21

6678668

STRAP, DUAL TIE

22

ENGINE See Illustration ENGINE & GASKET KITS/ NA6703

23

43DM8

NUT

24

7194203

BRACKET, HARNESS

25

7164564

BRACKET, A/C

26

6624289

STRAP, TIE

27

1CM870

BOLT

28

6679034

MOUNT

29

7015668

MOUNT, STRAP TIE Was 6678666 - B

30

6678818

MOUNT

Выбрано товаров: 30
