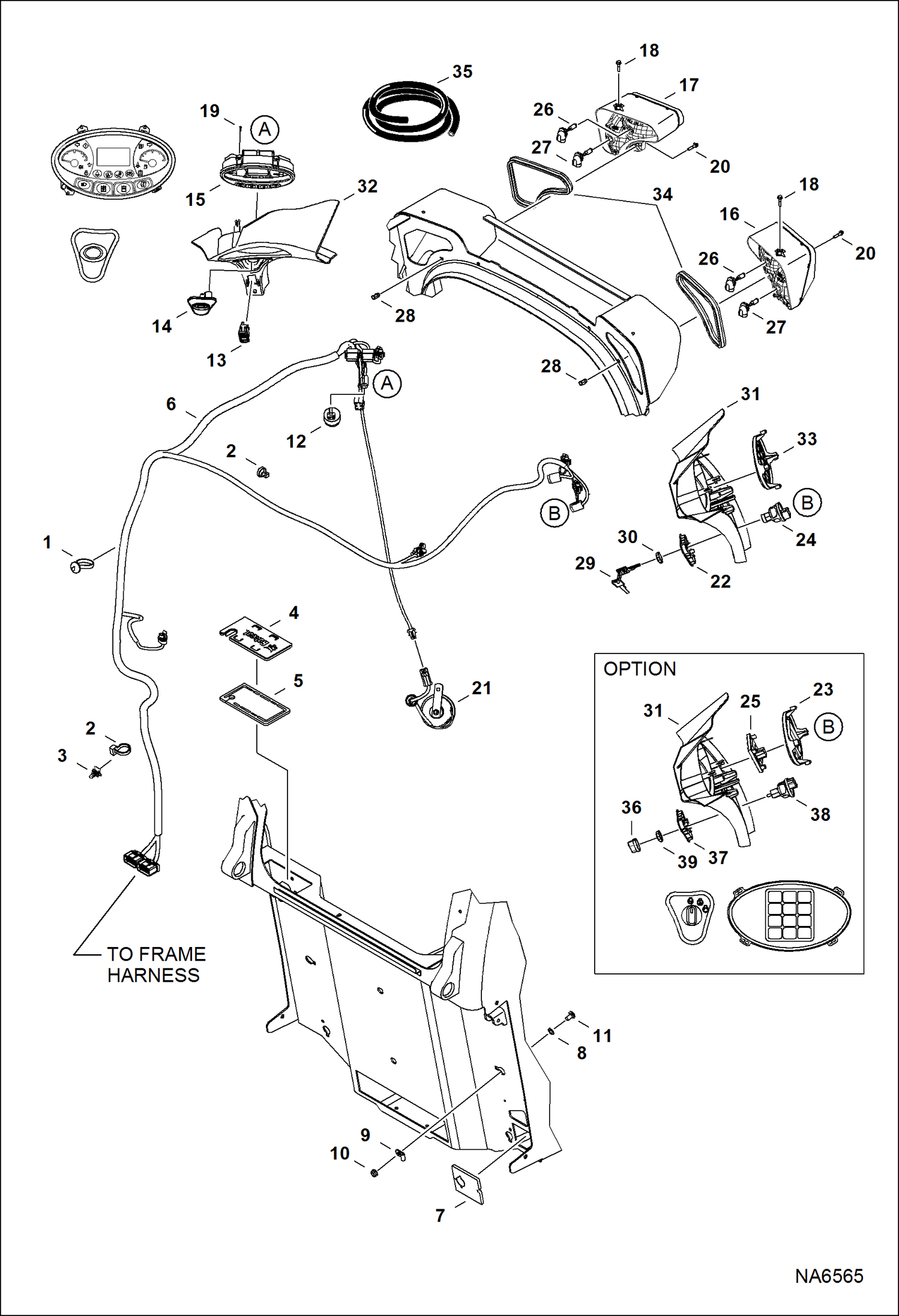

Запчасти Bobcat S-Series CAB ELECTRICAL CIRCUITRY (Standard) ELECTRICAL SYSTEM

1

6675734

STRAP, TIE

2

6624289

STRAP, TIE

3

7015668

MOUNT, STRAP TIE push in - Use W/tie strap

4

7179136

PLUG, HARNESS CAB STD

5

7179137

FOAM

6

7210557

HARNESS, CAB

7

7185150

PLUG, HARNESS CAB

8

6674894

NUT

9

30H20

CLIP

10

57D6

NUT 5

11

31C612

BOLT

12

6692489

ALARM, BUZZER

13

6690948

SWITCH PARK BRAKE

14

7003032

SWITCH, OVERRIDE TRACTION

15

7022670

DISPLAY

16

7138040

LIGHT, RH ASSY

17

7138041

LIGHT, LH ASSY

18

35C410

BOLT 5

19

7179008

SCREW, PLASTIC

20

31C420

BOLT 5

21

HORN, ALARM See Illustration HORN KIT/ NA6325 manual controls, AHC & ACS

21

HORN, ALARM See Illustration HORN KIT/ NA6326 selectable joystick controls

22

7163589

INSERT, SWITCH

23

7003027

INSERT, KEYPAD if loader is equipped W/SJC & text decals, Also Order Ref. 33 & 7168114 decal - if loader is equipped W/SJC & no text decals, Also Order Ref. 33 & 7177707 decal

24

6693245

SWITCH, IGN W/Ref. 30

25

6693712

KEYPAD, PANEL

26

7008814

BULB, 5W

27

6675336

LIGHT, BULB 50W

28

7154910

INSERT, THREADED

29

6693241

KEY 10 ignition - single key W/O ring

30

7009081

NUT

31

7155791

PANEL, RH

32

7155792

PANEL, LH

33

7002985

INSERT, BLANK W/Bobcat head - if loader is equipped W/SJC & text decals, Also Order Ref. 33 & 7168114 decal - if loader is equipped W/SJC & no text decals, Also Order Ref. 33 & 7177707 decal

34

SEAL NLA - 609,6 mm (24'') long - Order Ref. 35

35

7202956

SEAL, BULK bulk - sold per foot

36

7023588

KNOB

37

7163589

INSERT, SWITCH

38

7023022

SWITCH ROTARY W/Ref. 39

39

7009081

NUT
