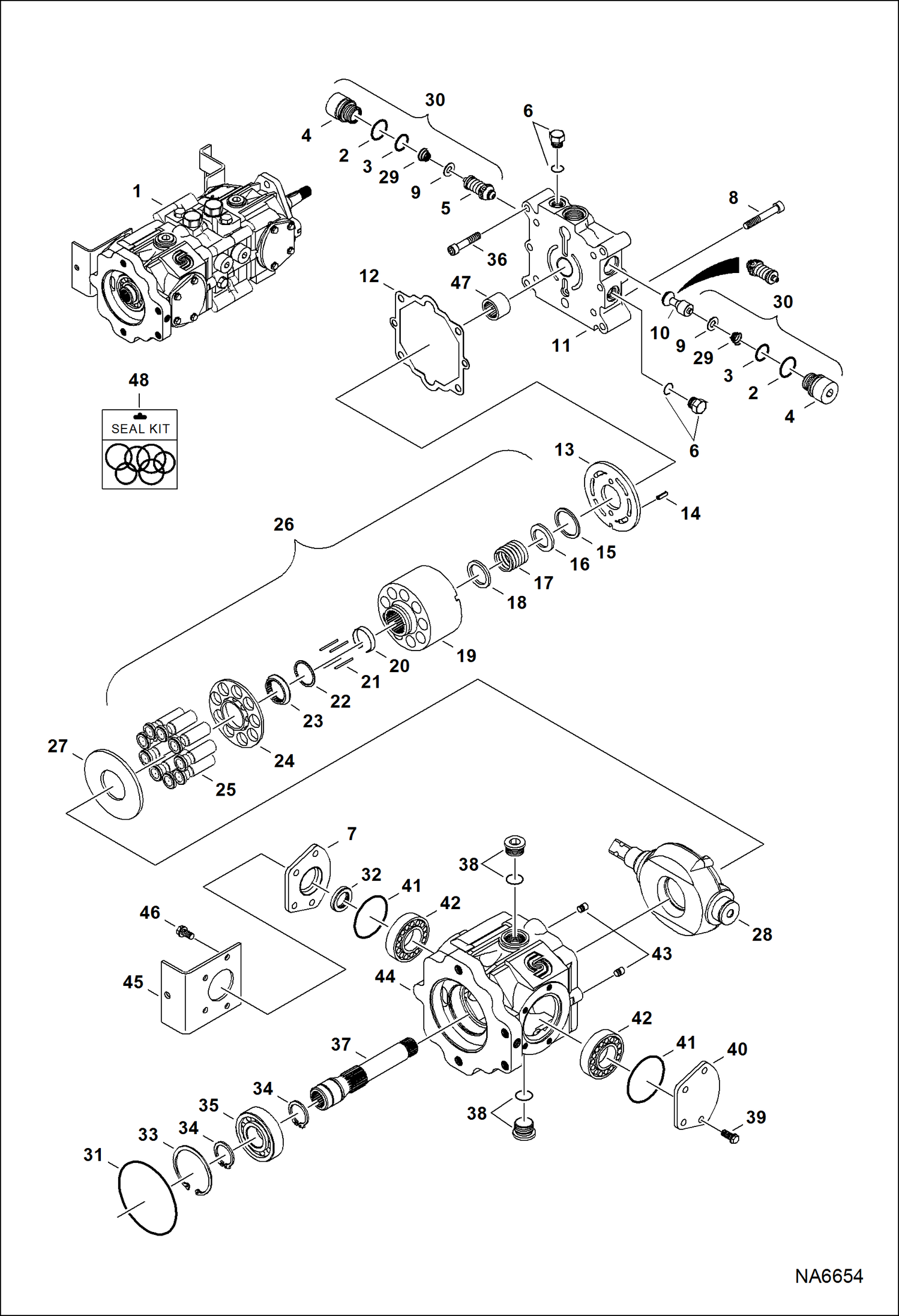

Запчасти Bobcat S-Series HYDROSTATIC PUMP (Manual Controls & ACS) (Right Half) HYDROSTATIC SYSTEM

1

6687863

PUMP, HYD TANDEM W/O GEAR PUMP Model 4445203

2

6657028

O-RING

3

79K8

O RING 10

4

PLUG NLA - Order Ref. 30

5

VALVE, RELIEF NLA - 5000 PSI (345 bar) - Order Ref. 30

6

6645086

PLUG

7

6657067

COVER W/Ref. 32

8

6650674

BOLT

9

RETAINER NLA - Order Ref. 30

10

VALVE, CHECK NLA - poppet - Order Ref. 30

11

6669405

CAP, END

12

6650634

GASKET

13

6687773

PLATE, PUMP HYD

14

6650636

PIN

15

6666881

RETAINER

16

6666882

WASHER

17

6667725

SPRING

18

6667724

WASHER

19

6683167

CYLINDER BLOCK

20

6650630

RETAINER

21

6650629

PIN

22

6666338

WASHER

23

6657073

RETAINER

24

6657072

RETAINER

25

7023548

PISTON, ASSY

26

6671512

GROUP, ROTARY W/Ref. 15-25

27

6650627

PLATE

28

6685344

SWASHPLATE W/threaded shaft hole

29

SPRING NLA - Order Ref. 30

30

6689601

VALVE Ref. 2-5, 9, 10 & 29

31

6671520

O-RING

32

6678226

SEAL, OIL

33

669863

RING, SNAP

34

658128

RING, SNAP

35

654299

BEARING

36

7024885

BOLT

37

6682264

SHAFT

38

47K8

PLUG

38

79K12

O RING 10

39

6650668

BOLT

40

6657068

COVER

41

6660814

O-RING

42

6669411

BEARING

43

6675342

PIN

44

6693867

HOUSING

45

7024890

BRACKET

46

6671518

BOLT

47

6650635

BEARING

48

6671516

KIT, SEAL Ref. 2, 3, 12, 31 & 41 - Also includes Ref. 7, 9, 13, 34, 35, 42, 43, 45, 46 & 50 on previous page
