Запчасти Bobcat S-Series HYDROSTATIC MOTOR (2-Speed) HYDROSTATIC SYSTEM

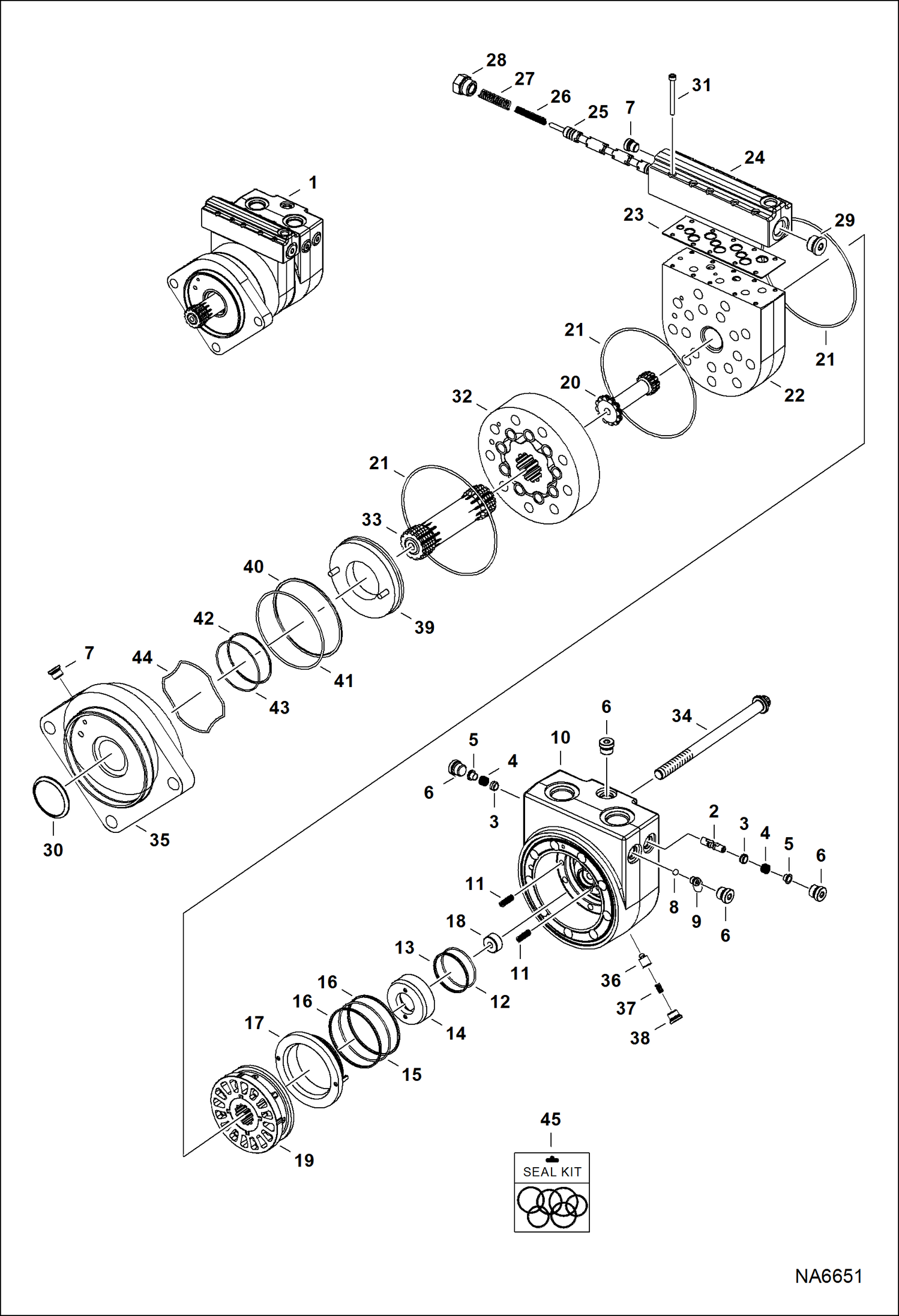

Схема запчастей Bobcat S-Series - HYDROSTATIC MOTOR (2-Speed) HYDROSTATIC SYSTEM

Артикул

Название

Примечание

Количество

1

7010868

MOTOR, DRIVE HYD 2-SPD

2

6685066

PISTON

3

6692530

POPPET

4

6513533

SPRING Was 6692528 - A

5

6685065

SHUTTLE

6

6668089

PLUG, MOTOR W/ O-ring

6

O-RING NSS

7

6691541

PLUG W/ O-ring

7

O-RING NSS

8

7024892

BALL, STEEL

9

6691542

SEAT ball - W/ O-ring

9

O-RING NSS

10

7024891

HOUSING

11

6692523

SPRING, COMPRESSION

12

6691543

O-RING

13

6691544

RING back-up

14

6691545

RING

15

6691546

O-RING

16

6691547

RING back-up

17

6691548

RING balance

18

6691549

PIN dowel

19

6691550

VALVE

20

6691551

SHAFT

21

6691552

O-RING

22

6691553

PLATE

23

6691554

GASKET

24

7024893

HOUSING

25

6691556

SPOOL

26

6691557

SPRING compression

27

6691558

SPRING compression

28

6651974

PLUG W/ O-ring - Was 7024894 - A

28

O-RING NSS

29

6599910

PLUG ASSY. W/ O-ring

29

O-RING NSS

30

6691564

SEAL

31

6691559

BOLT

32

6691560

GEROLER

33

6691561

SHAFT

34

6691562

BOLT

35

7024895

FLANGE, MOUNTING

36

6685064

POPPET

37

6688521

SPRING

38

6668079

PLUG, MOTOR

39

7024900

PLATE

40

7024896

RING, BACK-UP

41

6679818

O-RING

42

7024898

RING, BACK-UP

43

7024897

O-RING

44

7024899

WASHER, WAVE

45

7031609

KIT, SEAL Ref. 12,13,15,16,21,23,30 & 40-43

Выбрано товаров: 50
