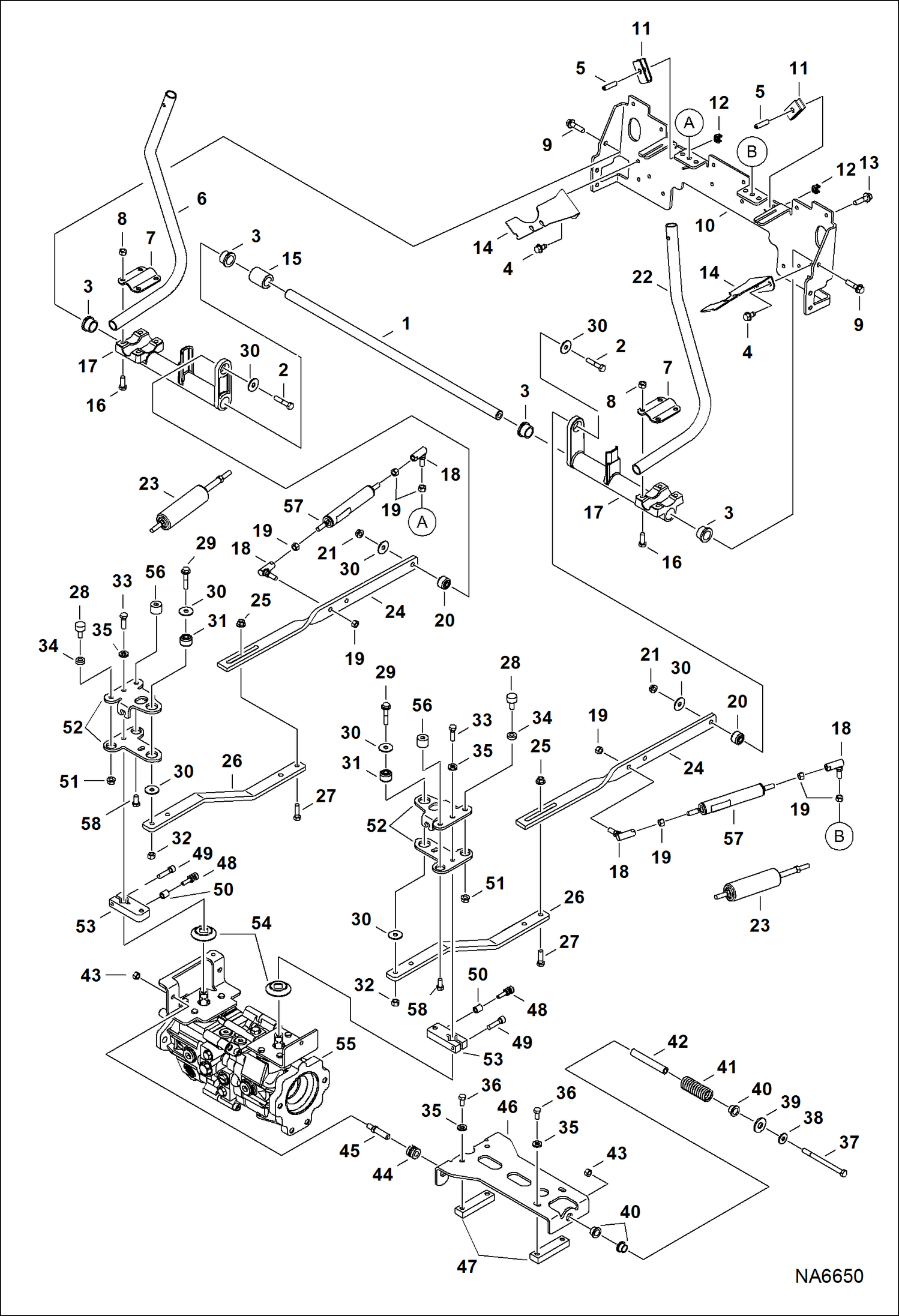

Запчасти Bobcat S-Series HAND CONTROLS HYDROSTATIC SYSTEM

1

7189893

SHAFT, STEERING

2

17C628

BOLT

3

7159624

BUSHING

4

84G3712

BOLT 5

5

15G624

SCREW

6

7153379

LEVER, STEERING LH

7

7156761

PLATE

8

95D6

NUT

9

49C624

SCREW

10

7189892

MOUNT, BELLCRANK

11

7121779

PAD

12

6685663

NUT, RETAINING

13

84G3724

BOLT

14

7163216

BRACKET

15

7189894

SPACER, STEERING

16

17C616

BOLT 5

17

7151889

BELLCRANK

18

6599744

BALL JOINT

19

62D6

NUT 5

20

6685060

BUSHING, TORSION

21

53D6

NUT

22

7145147

LEVER, STEERING RH

23

GAS SPRING NLA - Order Ref. 57

24

7231591

LINK, STEERING Was 7183799 - A

25

83D6

NUT 5

26

7210060

LINK, CENTER

27

17C636

BOLT

28

6673789

BEARING ACS & AHC

29

17C628

BOLT

30

6737388

WASHER

31

6685060

BUSHING, TORSION

32

83D6

NUT 5

33

47C620

BOLT

34

7100699

WASHER ACS & AHC

35

7103217

WASHER

36

17C616

BOLT 5

37

17C680

BOLT

38

6563914

WASHER

39

25E24

WASHER AHC & ACS

40

6715163

BUSHING, PRESS FIT

41

6701535

SPRING

42

6715164

SLEEVE, SPRING

43

95D6

NUT

44

6706098

GUIDE

45

6577058

PIN

46

6734298

MOUNT

47

6702716

BLOCK

48

7103711

BOLT

49

73G624

BOLT

50

7105223

SPACER

51

98D6

NUT

52

7110365

ARM, PINTLE

53

7103708

BRACKET pintle arm

54

6687913

SEAL

55

PUMP, HYD See Illustration HYDROSTATIC PUMP/GEAR PUMP/ NA6652 - manual controls, AHC & ACS

56

6711643

CAM manual controls

57

7188108

GAS SPRING
