Запчасти Bobcat S-Series RADIATOR/COOLER ASSEMBLY HYDROSTATIC SYSTEM

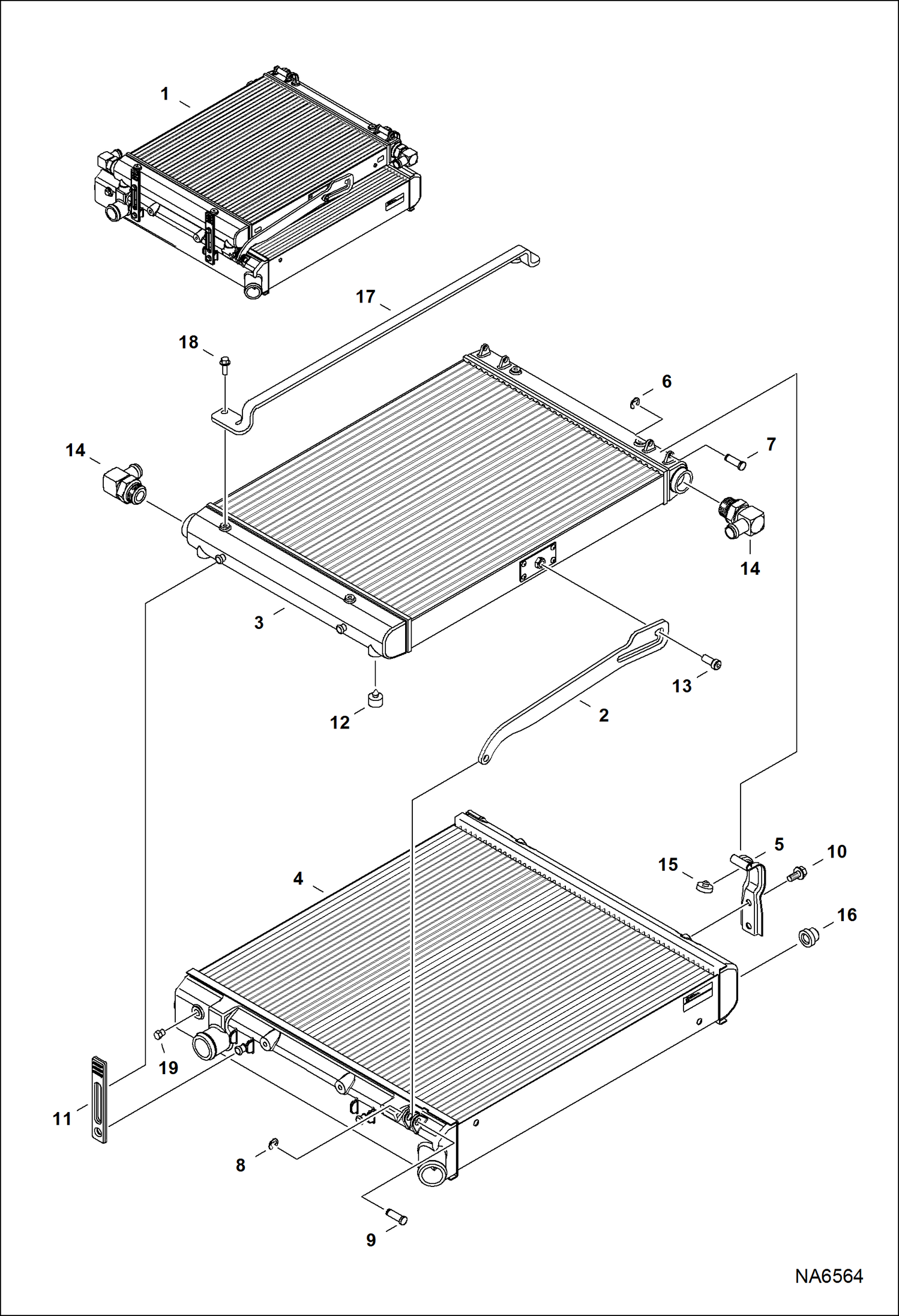

Схема запчастей Bobcat S-Series - RADIATOR/COOLER ASSEMBLY HYDROSTATIC SYSTEM

Артикул

Название

Примечание

Количество

1

EXCHANGER, OIL WATER NSS

2

7025116

ROD, PROP UP

3

7012614

EXCHANGER, OIL COOLER

4

7024100

EXCHANGER, WATER RADIATOR

5

7025588

BRACKET, HINGE FORMED 11 gage - .119'' thickness

6

7009258

RING, RETAINER

7

7024103

PIN

8

7009261

RING, RETAINER

9

7024104

PIN

10

7009256

BOLT, FLANGE

11

7012611

STRAP, HOLD DOWN

12

7024107

BUMPER

13

7010126

BOLT

14

FITTING, ELBOW NSS - Order Ref. 3

15

7012613

BUMPER, RUBBER

16

7208181

BUSHING

17

7169118

GUARD, CONDENSER

18

49C412

BOLT

19

24K3

PLUG

Выбрано товаров: 19
