Запчасти Bobcat S-Series HYDROSTATIC CIRCUITRY (Single Speed Motor) HYDROSTATIC SYSTEM

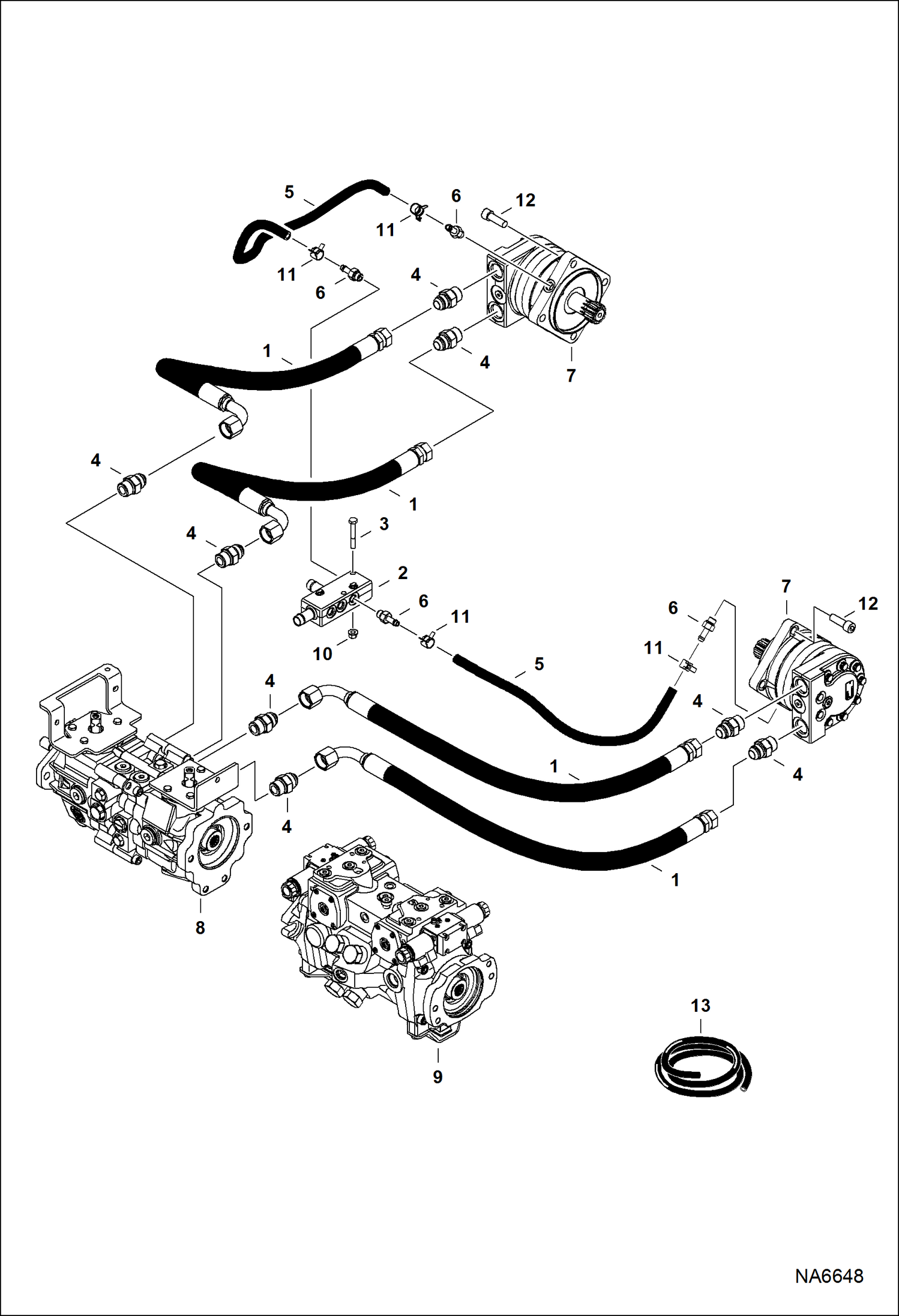

Схема запчастей Bobcat S-Series - HYDROSTATIC CIRCUITRY (Single Speed Motor) HYDROSTATIC SYSTEM

Артикул

Название

Примечание

Количество

1

7200142

HOSE, HYD

2

7201981

MANIFOLD, DRAIN CASE

3

17C536

BOLT

4

15KB1212

FITTING, HYD CONNECTOR

4

79K12

O RING 10

5

HOSE, HYD NLA - Order 673 mm (26.5'') of Ref. 13

6

7158632

CONNECTOR

6

79K6

O RING 10

7

6682034

MOTOR See Illustration HYDROSTATIC MOTOR/ PE2620

8

PUMP, HYD See Illustration HYDROSTATIC PUMP/GEAR PUMP/ NA6652 - manual controls, AHC & ACS

9

PUMP, HYD See Illustration HYDROSTATIC PUMP/GEAR PUMP/ NA6652 - SJC

10

83D5

NUT 5

11

5HM16

CLAMP

12

73G824

BOLT

13

6586251

HOSE bulk - sold per foot

Выбрано товаров: 15
