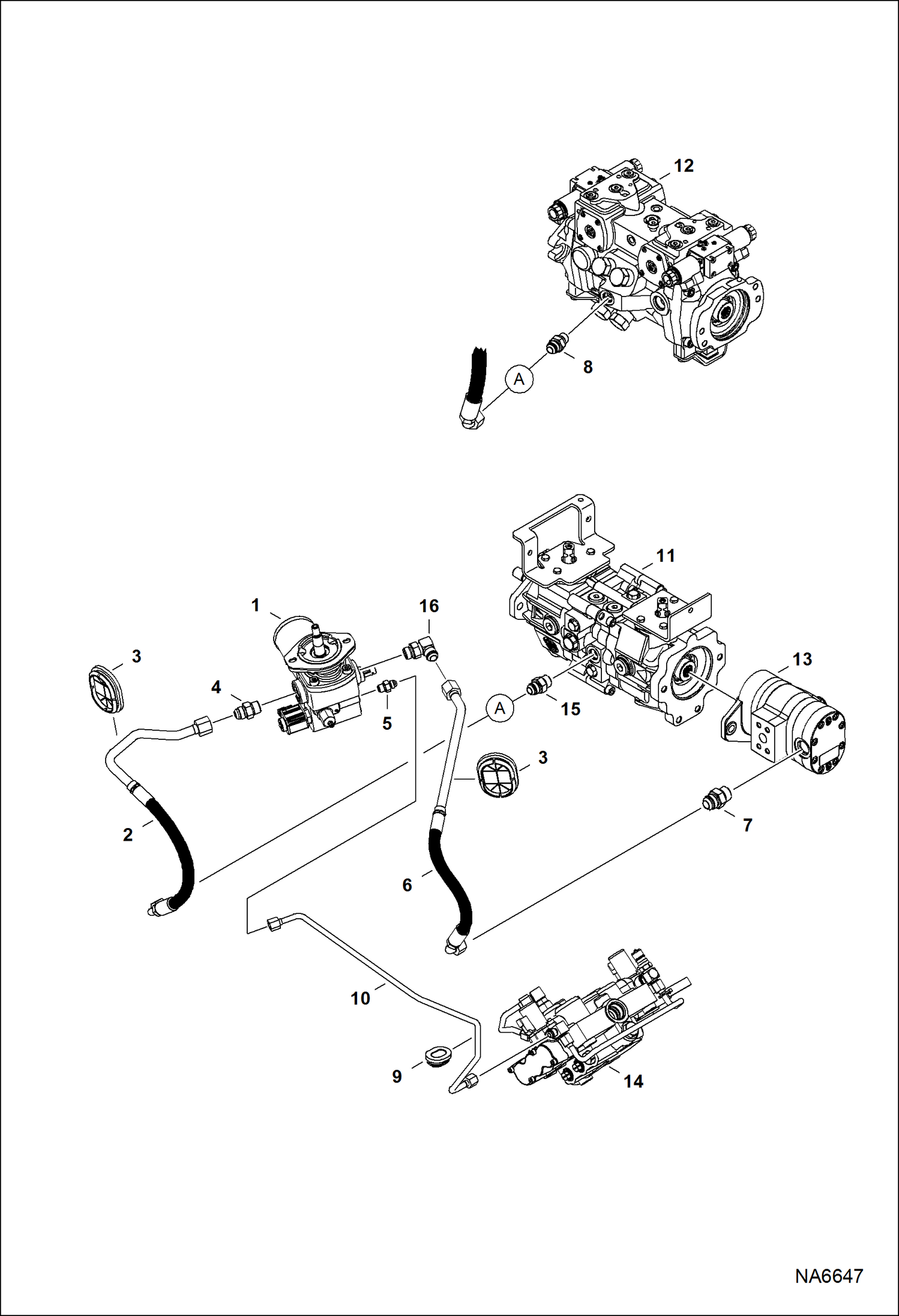

Запчасти Bobcat S-Series HYDROSTATIC CIRCUITRY (Cooling Fan) HYDROSTATIC SYSTEM

1

MOTOR, HYD COOLING FAN See Illustration COOLING FAN MOTOR/ NA6655

2

7220002

HOSE, HYD

3

7219416

GROMMET

4

15KB1010

FITTING, HYD CONNECTOR

4

79K10

O RING 10

5

15KB0606

FITTING, HYD CONNECTOR

5

79K6

O RING 10

6

7181453

HOSE, HYD

7

15KB0812

FITTING, HYD CONNECTOR

7

79K12

O RING 10

8

15KB0808

FITTING, HYD CONNECTOR

8

79K8

O RING 10

9

7002739

GROMMET

10

7210308

TUBELINE, HYD

11

PUMP, HYD See Illustration HYDROSTATIC PUMP/GEAR PUMP/ NA6652 - manual controls, AHC, ACS

12

PUMP, HYD See Illustration HYDROSTATIC PUMP/GEAR PUMP/ NA6652 - SJC

13

PUMP, GEAR See Illustration GEAR PUMP/ MS1454 - standard flow hydraulics

14

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA6582 - ACS, AHC & SJC

14

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA6580 - manual controls

15

15KB0810

FITTING, HYD CONNECTOR

15

79K8

O RING 10

16

17KB1010

FITTING, HYD ELBOW

16

79K10

O RING 10
