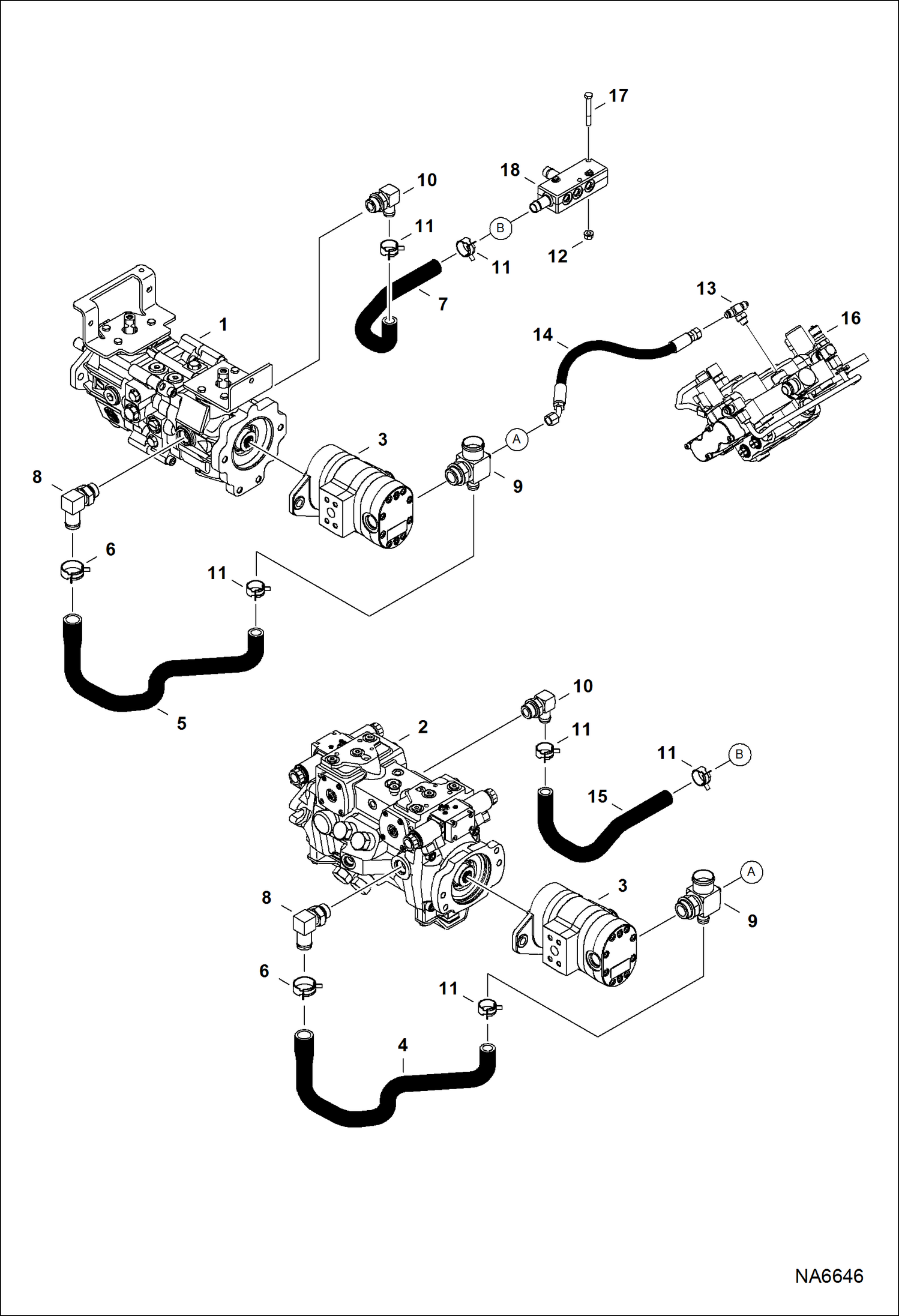

Запчасти Bobcat S-Series HYDROSTATIC CIRCUITRY (Hydrostatic Pump) (Case Drain Manifold) HYDROSTATIC SYSTEM

1

PUMP, HYD See Illustration HYDROSTATIC PUMP/GEAR PUMP/ NA6652 - manual controls, AHC, ACS

2

PUMP, HYD See Illustration HYDROSTATIC PUMP/GEAR PUMP/ NA6652 - SJC

3

PUMP, GEAR See Illustration GEAR PUMP/ MS1454 - standard flow hydraulics

4

7213016

HOSE, HYD FORMED

5

7213016

HOSE, HYD FORMED

6

5HM35

HOSECLAMP

7

7183864

HOSE, DRAIN

8

7015518

VALVE, CHECK

9

7158921

FITTING See Illustration HYDROSTATIC CIRCUITRY/ NA6644

9

79K12

O RING 10

10

7113631

ELBOW

10

79K12

O RING 10

11

5HM27

CLAMP

12

83D5

NUT 5

13

19KB0606

TEE See Illustration HYDROSTATIC CIRCUITRY/ NA6649 See Illustration HYDROSTATIC CIRCUITRY/ NA6648

13

79K6

O RING 10

14

7235459

HOSE, HYD Was 7159735 - A

15

7183863

HOSE, DRAIN

16

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA6580 - manual controls

16

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA6582 - ACS, AHC & SJC

17

17C536

BOLT

18

7201981

MANIFOLD, DRAIN CASE See Illustration HYDROSTATIC CIRCUITRY/ NA6645
