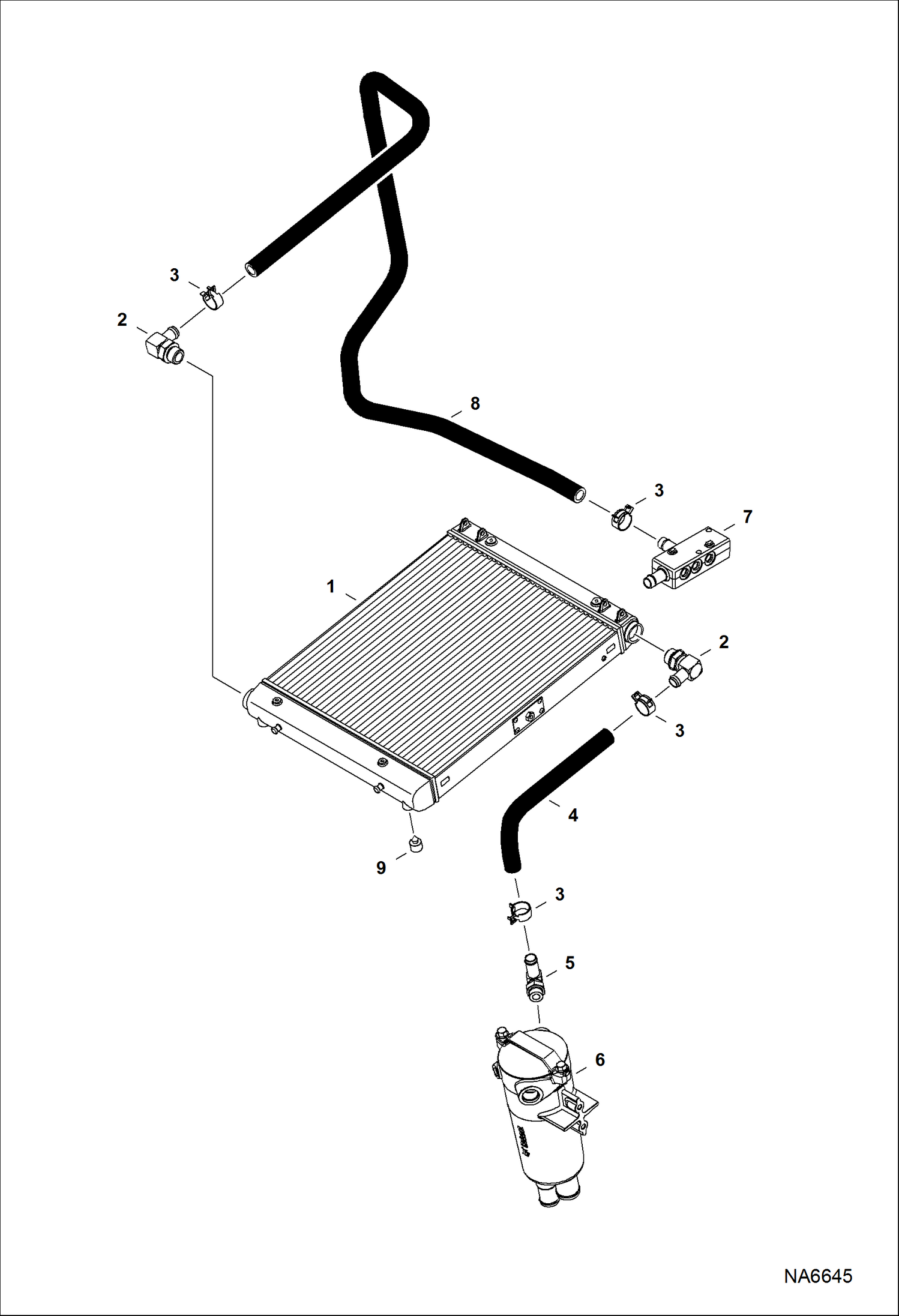

Запчасти Bobcat S-Series HYDROSTATIC CIRCUITRY (Cooler) HYDROSTATIC SYSTEM

1

EXCHANGER, OIL COOLER See Illustration RADIATOR/COOLER ASSEMBLY/ NA6564 W/Ref. 2

2

FITTING, ELBOW NSS - Order Ref. 1

3

5HM27

CLAMP

4

7218899

HOSE, HYD FORMED

5

6717885

ELBOW

5

79K10

O RING 10

6

FILTER, OIL HYD TANK ASSY See Illustration HYDROSTATIC CIRCUITRY/ NA6644

7

MANIFOLD, DRAIN CASE See Illustration HYDROSTATIC CIRCUITRY/ NA6646

8

7210364

HOSE, HYD FORMED

9

7024107

BUMPER
