Запчасти Bobcat S-Series TURBOCHARGER POWER UNIT

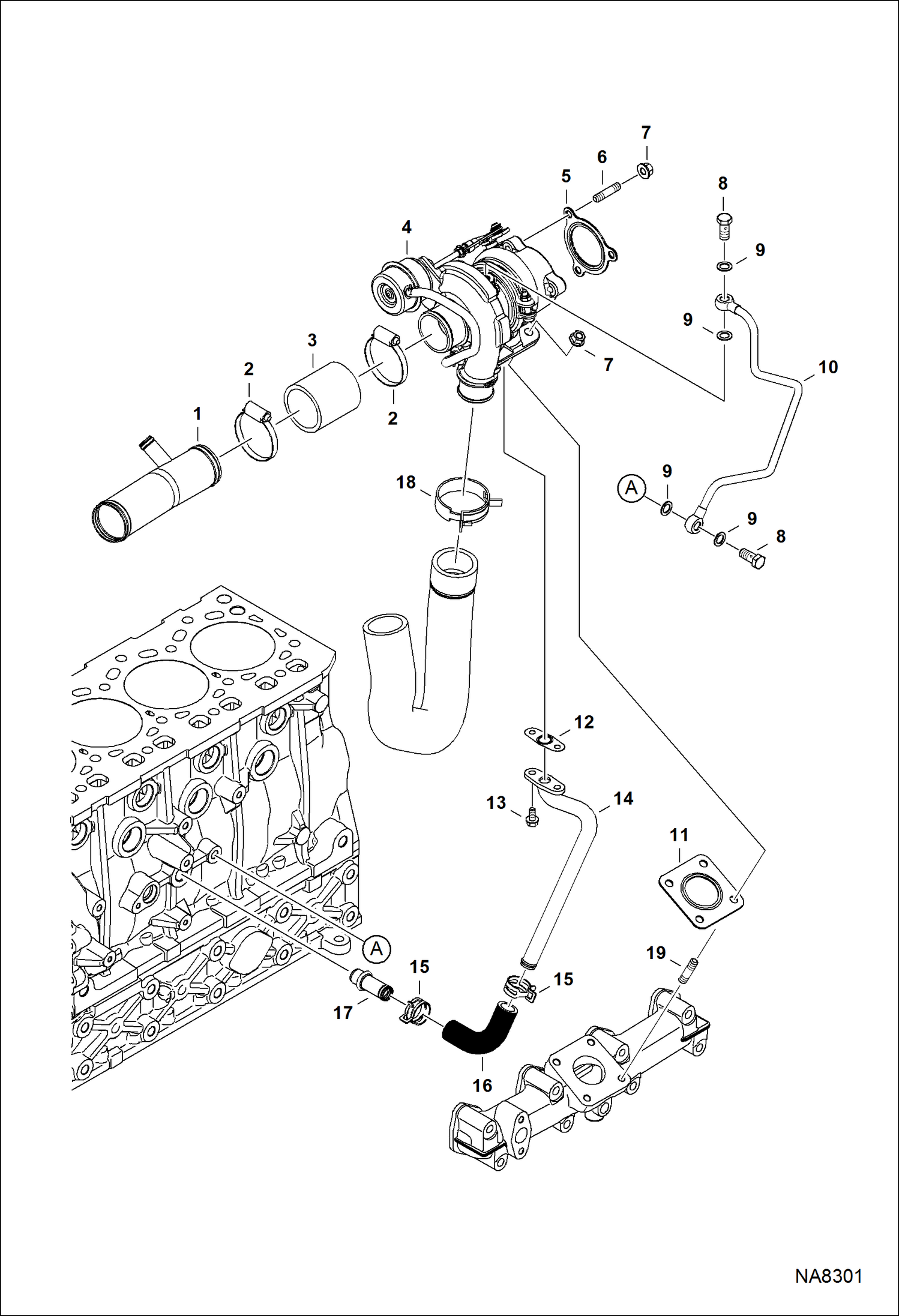

Схема запчастей Bobcat S-Series - TURBOCHARGER POWER UNIT

Артикул

Название

Примечание

Количество

1

7030827

PIPE, INTAKE

2

7030309

CLAMP, HOSE

3

7030362

HOSE

4

7030304

TURBOCHARGER

5

7030341

GASKET, TURBOCHARGER

6

7030289

STUD

7

7030370

NUT

8

7030428

BOLT, BANJO

9

7030420

RING, SEAL

10

7030383

TUBE, OIL

11

7030340

GASKET, TURBOCHARGER

12

7030339

GASKET

13

7030282

BOLT

14

7030393

PIPE, OIL

15

7030308

CLAMP, HOSE

16

7030359

HOSE, RETURN

17

7030401

PLUG, OIL

18

5HM46

CLAMP

19

7030288

STUD

Выбрано товаров: 19
