Запчасти Bobcat S-Series HYDRAULIC CONTROL VALVE (AHC, ACS & SJC) HYDRAULIC SYSTEM

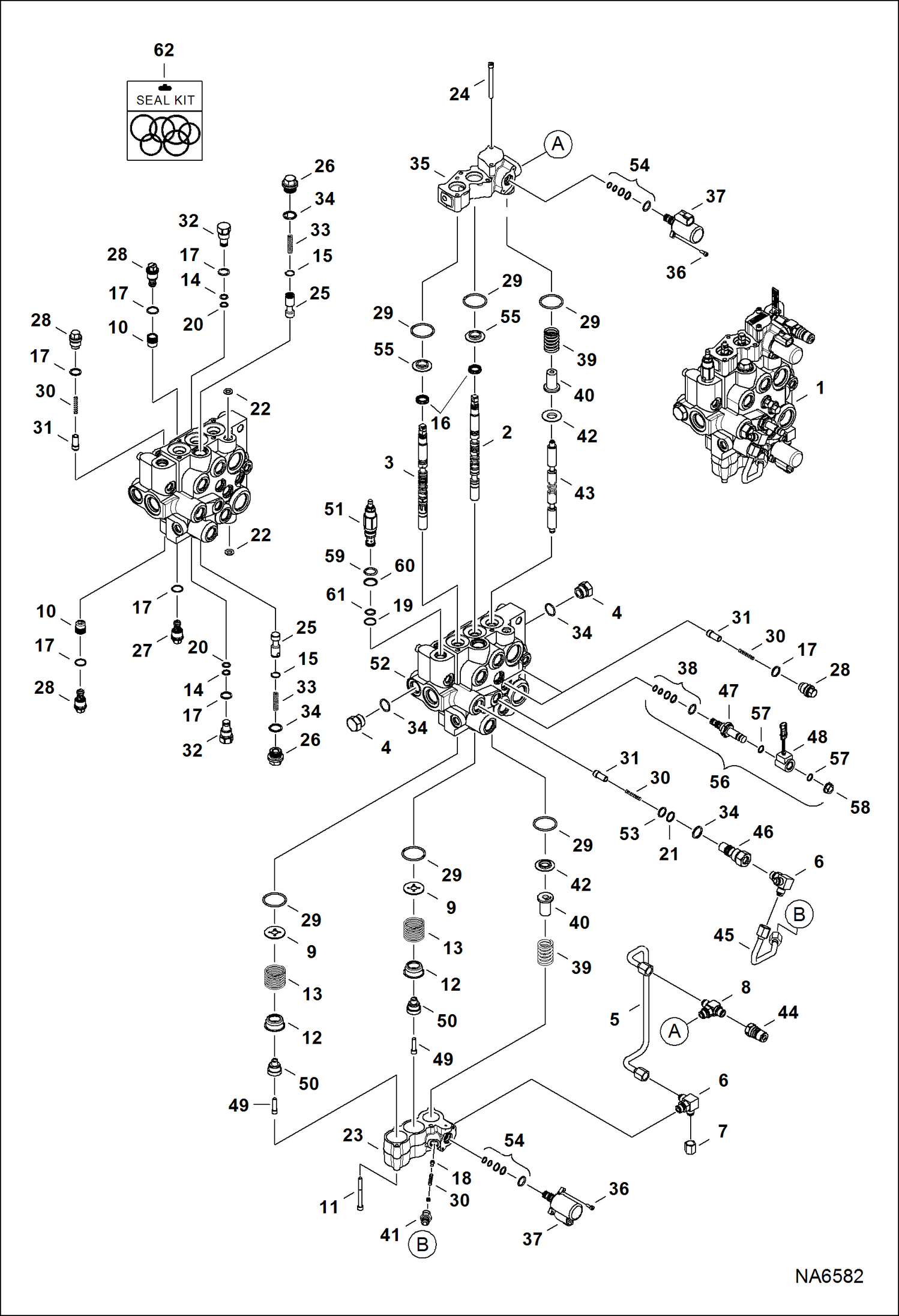

Схема запчастей Bobcat S-Series - HYDRAULIC CONTROL VALVE (AHC, ACS & SJC) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

7215960

VALVE, CONTROL

2

7108242

SPOOL, TILT

3

7209496

SPOOL, LIFT

4

24K7

PLUG W/Ref. 34

5

7157291

TUBELINE

6

7166338

TEE, BOSS

7

36K5

CAP

8

7232515

FITTING, HYD TEE

8

79K6

O RING 10

9

7211397

WASHER, SPRING

10

7208227

SEAT, RELIEF PORT

11

29G444

BOLT Was 6814022 - A

12

6592100

COLLAR

13

6587580

SPRING

14

58K013

O-RING

15

7214312

RING, RETAINING

16

6683274

SEAL, SPOOL 10

17

79K8

O RING 10

18

7214722

VALVE, CHECK

19

6665570

RING

20

73K013

RING, BACK-UP

21

73K016

RING, BACK-UP

22

55K204

O RING 10

23

7222562

BLOCK, VALVE CONTROL HYD

24

29G444

BOLT Was 6814022 - A

25

7217075

SPOOL, BICS

26

7219703

PLUG, BICS W/Ref. 34

27

6684646

VALVE, ANTI-CAV anti-cav - W/Ref. 17

28

7134520

PLUG check valve - W/Ref. 17

29

7219080

O-RING

30

7166339

SPRING, LOAD CHECK

31

7166047

SEAT, CHECK VALVE

32

6816549

PLUG ASSY PORT RLF W/Ref. 14, 17 & 20

33

7203643

SPRING, VALVE

34

79K10

O RING 10

35

7166388

CASTING ASSY

36

7002716

SCREW

37

6698434

VALVE, PROPORTIONAL

38

6669732

KIT, SEAL

39

7121399

SPRING

40

6814694

RETAINER

41

7202329

FITTING, HYD CONNECTOR W/SCREEN

42

7138376

BUSHING

43

7112383

AUX SPOOL

44

6684125

COUPLER

45

7202325

TUBELINE, HYD VALVE CONTROL

46

7134522

PLUG W/Ref. 21, 34 & 53

47

6667687

VALVE, STEM SOLENOID

48

6675559

COIL W/Ref. 57 & 58

49

7102652

SCREW

50

6592109

ADAPTER

51

7219324

VALVE, RELIEF W/ O-rings - pressure to be set in field

52

BODY NLA

53

58K016

O-RING 10

54

7008771

KIT, SEAL

55

7211393

RETAINER, SEAL

56

6672471

VALVE, SOLENOID Ref. 47 & 48

57

54K20028

O RING 10

58

6668820

NUT

59

58K017

O-RING 10

60

6665569

WASHER

61

25K20016

O RING 10

62

7218923

KIT, SEAL COMPLETE

62

7218924

KIT, SEAL Ref. 16, 17, 22 & 29

62

7123965

KIT, SEAL external fitting - Ref. 14, 17, 20, 22 & 34

Выбрано товаров: 65
