Запчасти Bobcat S-Series ENGINE SPEED CONTROL (W/Foot Throttle) POWER UNIT

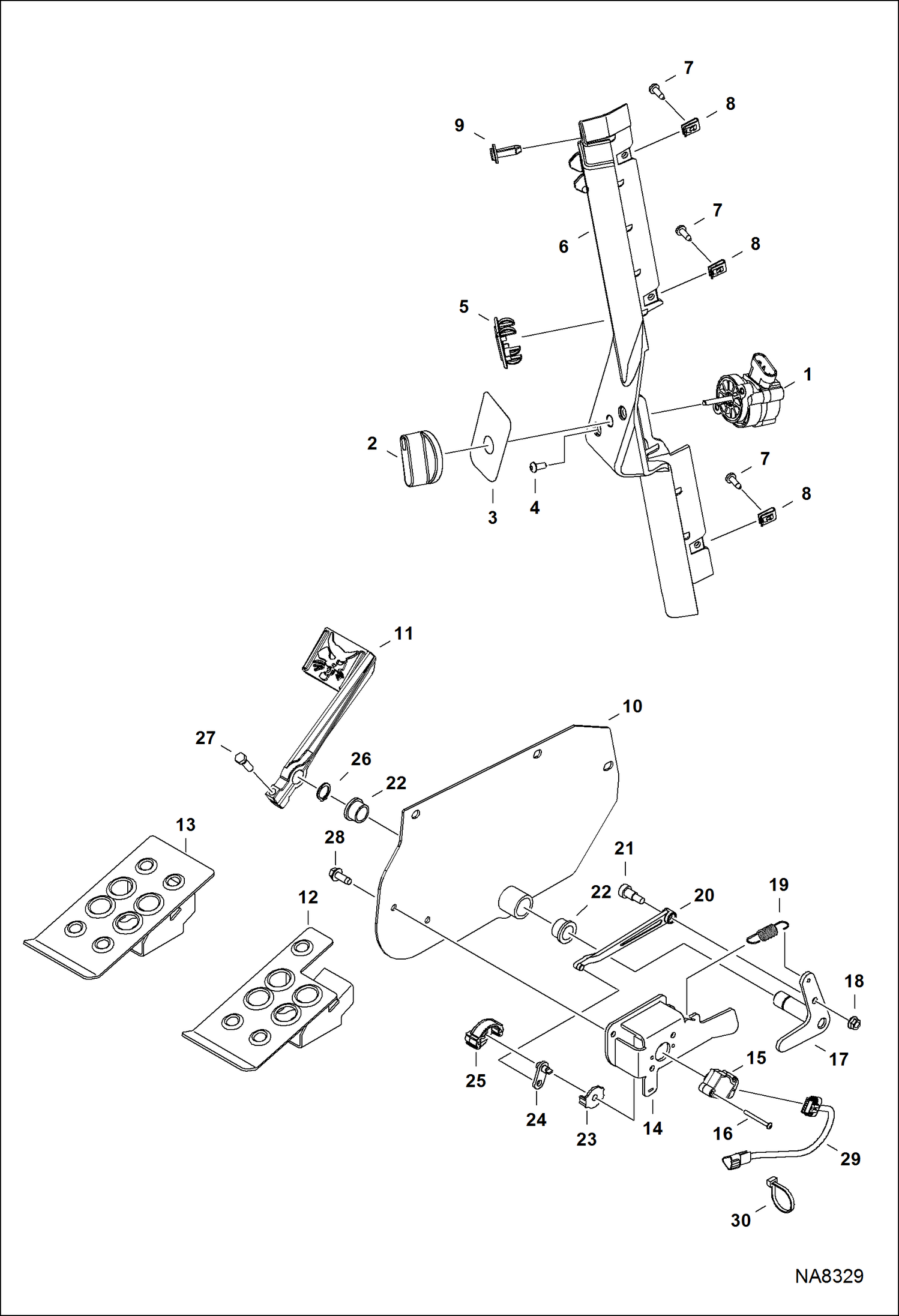

Схема запчастей Bobcat S-Series - ENGINE SPEED CONTROL (W/Foot Throttle) POWER UNIT

Артикул

Название

Примечание

Количество

1

6698640

CONTROL, THROTTLE W/Ref. 2

2

7022367

KNOB

3

7206487

DECAL, THROTTLE

4

7135909

SCREW

5

6665314

PLUG

6

7206486

COLUMN, FRONT RIGHT

7

6669224

BOLT

8

7142762

CLIP

9

7160382

RIVET, BIRD CAGE

10

7211662

PANEL, RH

11

7164294

PEDAL, FOOT THROTTLE

12

7181865

PEDAL ASSY

13

7181868

PEDAL ASSY

14

7207579

MOUNT

15

7207563

CONTROL, THROTTLE

16

7165799

SCREW

17

7207569

LEVER, THROTTLE

18

57D6

NUT 5

19

7188749

SPRING

20

7207572

LINK, THROTTLE

21

38C810

BOLT

22

7159624

BUSHING

23

7207577

GUIDE

24

7207571

LINK, THROTTLE

25

7207576

RETAINER

26

6534668

SNAP RING

27

17C620

BOLT

28

84G3716

SCREW 5

29

7217683

HARNESS, THROTTLE FOOT

30

6624289

STRAP, TIE

Выбрано товаров: 30
