Запчасти Bobcat S-Series ENGINE & ATTACHING PARTS (Fuel System) POWER UNIT

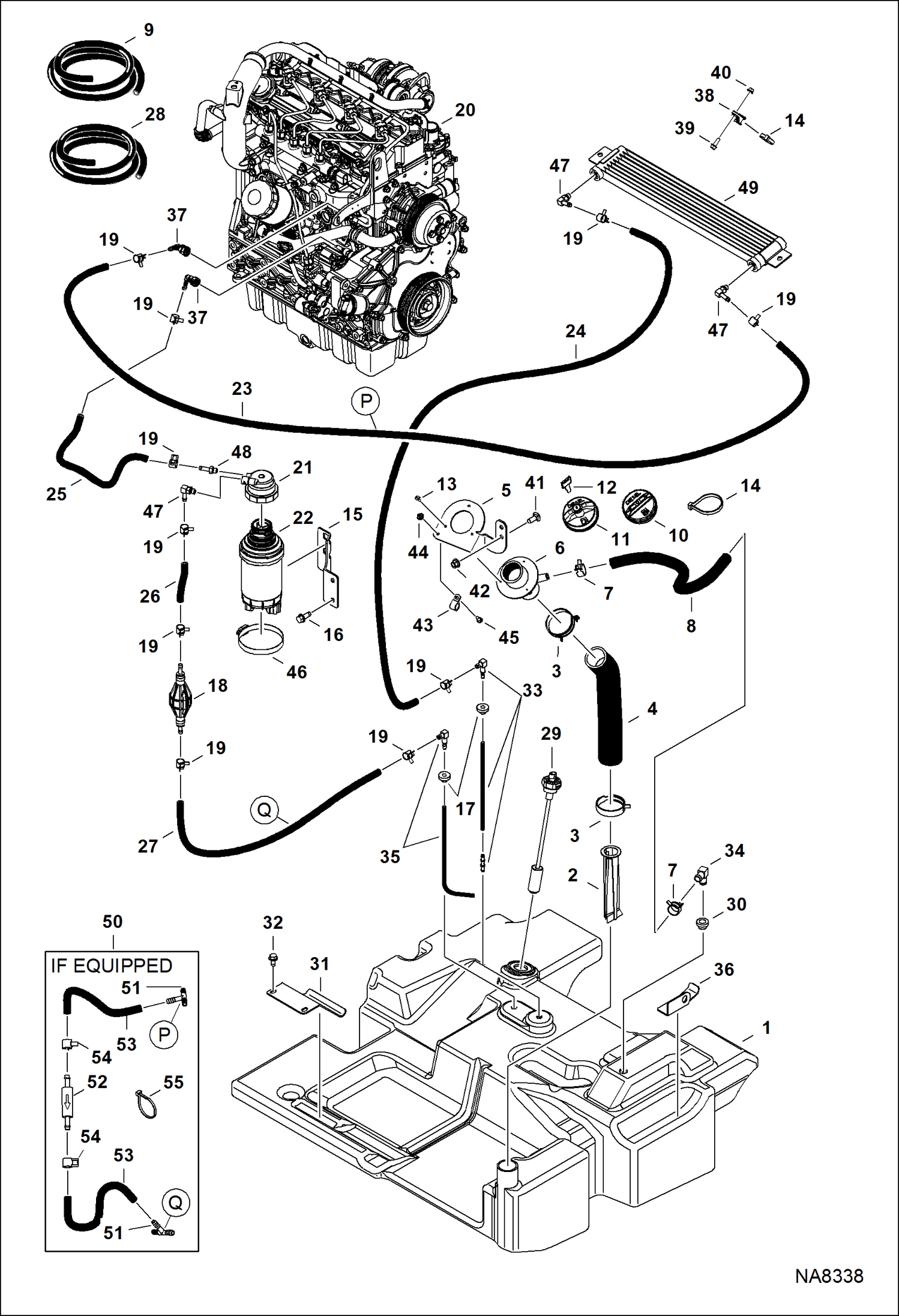

Схема запчастей Bobcat S-Series - ENGINE & ATTACHING PARTS (Fuel System) POWER UNIT

Артикул

Название

Примечание

Количество

1

7181068

TANK, FUEL

2

7120881

SCREEN, FILLER

3

5HM58

CLAMP

4

7238155

FUEL, TUBE

5

7237823

BRACKET, FUEL

6

6701449

FILLER TUBE

7

5HM22

CLAMP

8

HOSE NLA - 698,5 mm (27.5'') long - Order Ref. 9

9

6578172

HOSE bulk - sold per foot

10

7113340

CAP. DIESEL

11

7023550

CAP, DIESEL LOCKING

12

6693241

KEY 10 ignition - single key W/O ring

13

7106279

BOLT

14

6624289

STRAP, TIE

15

7237876

BRACKET, FILTER

16

84G3716

SCREW 5

17

6735696

GROMMET

18

6667170

PUMP

19

5HM14

CLAMP

20

ENGINE See Illustration ENGINE/ NA8294

21

7013579

FILTER, FUEL W/Ref. 22

22

7023589

FILTER, FUEL W/SEPERATOR

23

HOSE NLA - 2159 mm (85'') long - Order Ref. 28

24

HOSE NLA - 2159 mm (85'') long - Order Ref. 28

25

HOSE NLA - 492,8 mm (19.40'') long - Order Ref. 28

26

HOSE NLA - 114,3 mm (4.5'') long - Order Ref. 28

27

HOSE NLA - 1092,2 mm (43'') long - Order Ref. 28

28

6577822

HOSE bulk - sold per foot

29

85D5

NUT 5

30

7179839

SENSOR FUEL W/Ref. 31

30

6717579

GASKET

31

6717402

BUSHING

32

7181174

BRACKET, TANK

33

84G3712

BOLT 5

34

7189953

FUEL, TUBE

35

7203383

FITTING, ELBOW

36

7228391

FUEL, TUBE

37

7221488

BRACKET

38

7188104

FITTING, FUEL ELBOW

39

6678818

MOUNT

40

35C514

BOLT

41

89D5

NUT

42

37C616

BOLT

43

89D6

NUT

44

30H33

CLIP

45

97D4

NUT

46

17C408

BOLT

47

42H56

CLAMP

48

7213054

FITTING, ELBOW

49

7213056

FITTING, ADAPTER

50

7239278

EXCHANGER, FUEL

Выбрано товаров: 51
