Запчасти Bobcat S-Series ENGINE & ATTACHING PARTS (Air Cleaner & Muffler) POWER UNIT

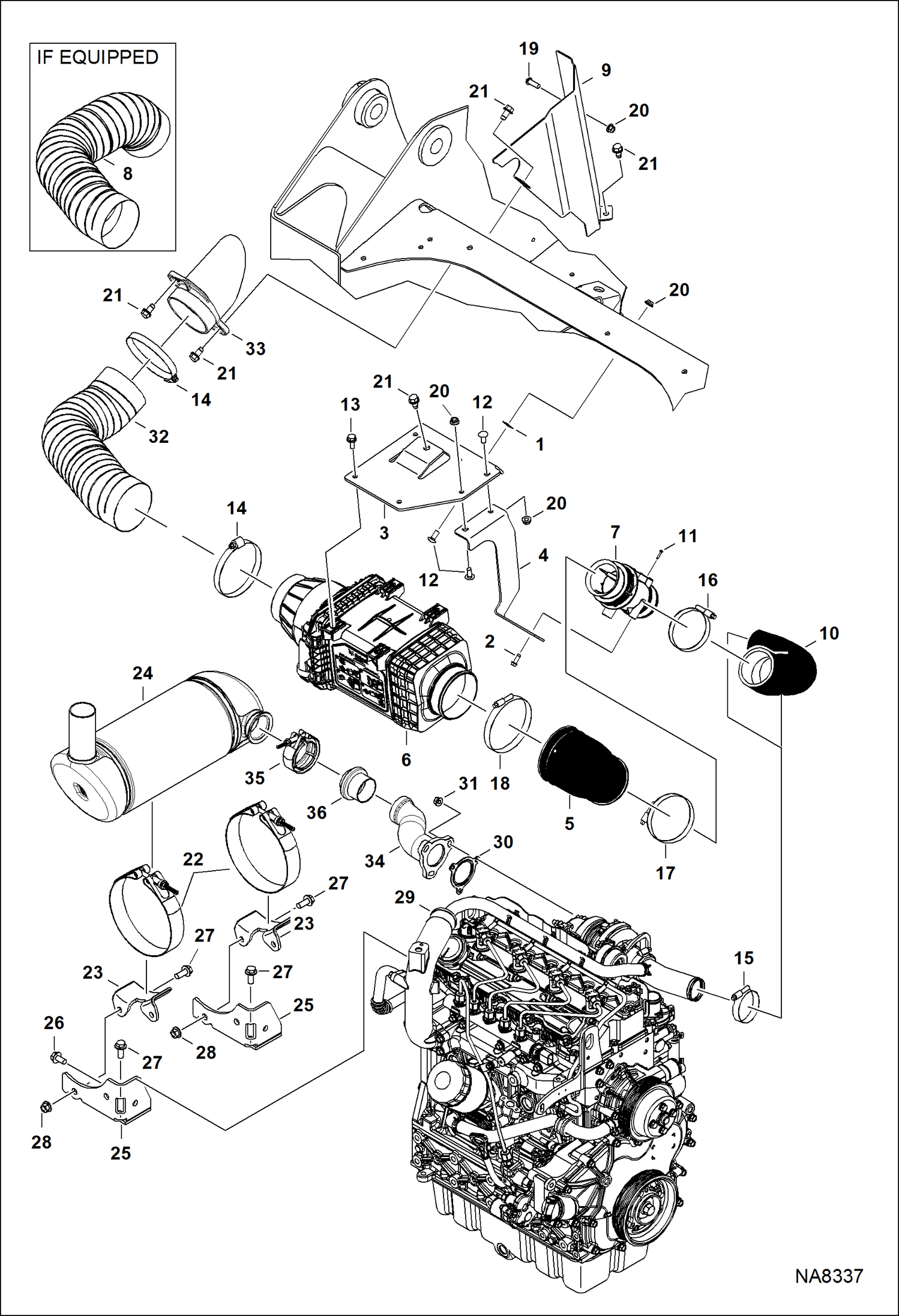

Схема запчастей Bobcat S-Series - ENGINE & ATTACHING PARTS (Air Cleaner & Muffler) POWER UNIT

Артикул

Название

Примечание

Количество

1

774220

NUT

2

6702642

SCREW

3

7220847

MOUNT, FILTER AIR

4

7220851

BRACKET

5

7220863

ELBOW, RUBBER

6

7221930

FILTER, AIR CLEANER ASSY See Illustration AIR CLEANER/ NA8334

7

7221932

TUBE, MAF

8

7221939

HOSE, AIR INTAKE

9

7226380

PLATE, DIVERTER

10

7231658

HOSE, AIR FORMED

11

7231674

SCREW, PLASTIC

12

10C512

BOLT

13

29CM820

SCREW

14

42H64

CLAMP

15

42HC250

CLAMP

16

42HC325

CLAMP

17

42HC375

CLAMP

18

42HC450

CLAMP, HOSE

19

53C516

BOLT

20

55D5

NUT

21

84G3712

BOLT 5

22

7221599

CLAMP, PIPE

23

7229439

MOUNT, CLAMP

24

7232463

DOC (DIESEL OXIDATION CATALYST)

25

7233089

MOUNT, DOC

26

29CM1020

BOLT

27

29CM1025

BOLT

28

47DM10

NUT

29

ENGINE See Illustration ENGINE/ NA8294

30

7030341

GASKET, TURBOCHARGER

31

7030370

NUT

Выбрано товаров: 31
