Запчасти Bobcat S-Series ENGINE ELECTRICAL CIRCUITRY (Frame Harness & Filter Sensors) ELECTRICAL SYSTEM

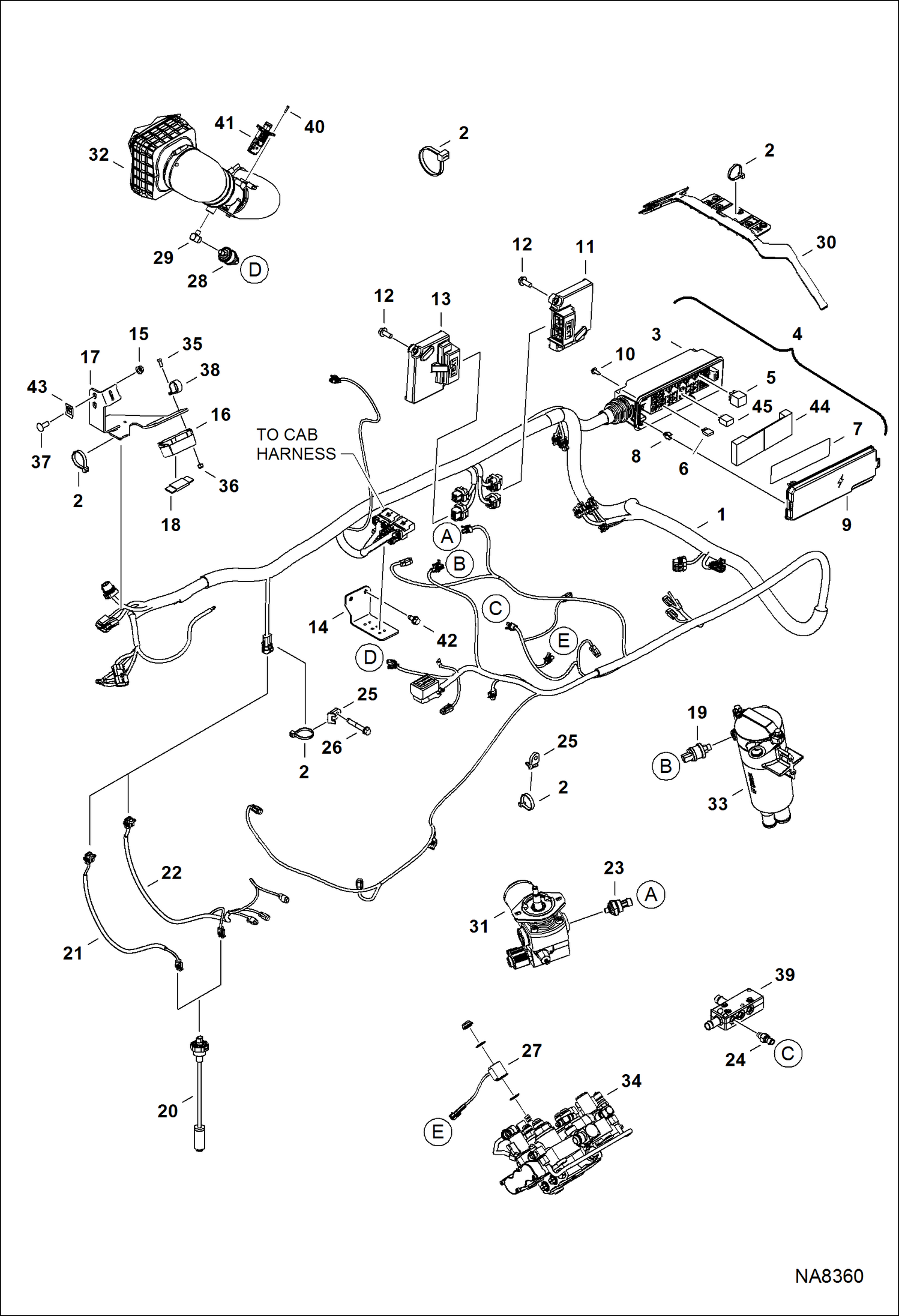

Схема запчастей Bobcat S-Series - ENGINE ELECTRICAL CIRCUITRY (Frame Harness & Filter Sensors) ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

7223849

HARNESS, MF MAN

1

7228632

HARNESS, MF CTRL

2

6624289

STRAP, TIE

3

7207542

HOUSING, FUSE

4

7207545

BLOCK, FUSE

5

6679820

RELAY

6

6803264

FUSE, 5A MINI

6

6654806

FUSE, 15A

6

6625575

FUSE, 20A

6

6702444

FUSE 25A 5

6

6718034

FUSE, 30A

6

6707621

FUSE, 15A MINI 5

6

6707623

FUSE, 25A MINI 5

6

6691626

FUSE 50 AMP

6

7219044

RELAY, ELECTRICAL

7

7218779

DECAL, FUSE

8

7165333

CLIP

9

7208472

COVER, FUSE BOX

10

6702642

SCREW

11

6693353

CONTROLLER, GATEWAY Bobcat

12

7168429

BOLT, CONTROLLER flanged head - M10 x 25 mm

13

7012048

CONTROLLER, AUX CONTROL

14

7212967

BRACKET, HARNESS

15

57D6

NUT 5

16

6675154

HOLDER high amp fuse

17

7199121

BRACKET mega fuse

18

6675155

FUSE, 100A mega fuse

19

7002980

SWITCH, PRESSURE

20

7179839

SENSOR FUEL W/gasket

20

6717579

GASKET

21

7149219

HARNESS, FUEL std cab

22

7184255

HARNESS, FUEL dlx cab

23

6674316

SWITCH, PRESS OIL HYD 3-pin molded connector

24

6727869

SENDER,HYD TEMP

24

79K6

O RING 10

25

6679034

MOUNT

26

84G3740

BOLT

27

6675559

COIL

28

6665371

SWITCH

29

7191672

ELBOW

30

7204407

BRACKET, HARNESS plastic

31

MOTOR, HYD COOLING FAN See Illustration COOLING FAN MOTOR/ NA6655

32

FILTER, AIR CLEANER ASSY See Illustration AIR CLEANER/ NA8334

33

FILTER, HYD ASSY See Illustration HYDROSTATIC CIRCUITRY/ NA8340

34

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA6580 manual controls

34

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA6582 SJC

35

25G412

CAPSCRW10

36

59D4

NUT 5

37

10C616

BOLT 10

38

30H50

CLIP

39

7201981

MANIFOLD, DRAIN CASE

40

7231674

SCREW, PLASTIC

41

7230439

SENSOR, FLOW AIR MASS

Выбрано товаров: 53
